Tahoe / Yukon Service Manual

Assist Step Bracket Replacement (BVE)

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle.

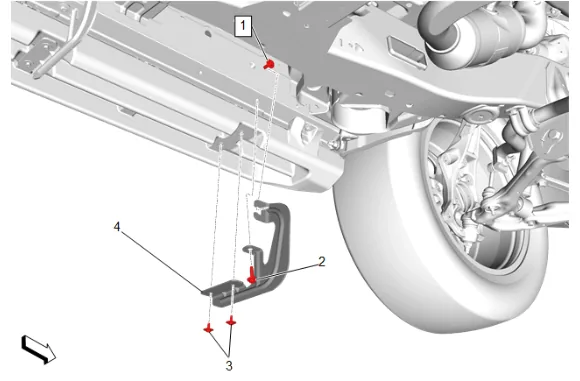

Assist Step Bracket Replacement (BVE) — figure 1
Assist Step Bracket Replacement (BVE) — figure 1

  1. Assist Step Bolt (1) » Loosen

  2. Assist Step Bolt (2) » Remove

  3. Assist Step Bracket Bolt (3) » Remove [2x]

  4. Assist Step Bracket (4) » Remove Installation Procedure

  5. Assist Step Bracket (4) » Install

  1. Assist Step Bracket Bolt (3) » Install and tighten [2x] — Fastener Specifications
  2. Assist Step Bolt (2) » Install and tighten — Fastener Specifications
  3. Assist Step Bolt (1) » Tighten — Fastener Specifications
  4. Lower the vehicle.
