Front Bumper Fascia Guide Replacement

Removal Procedure

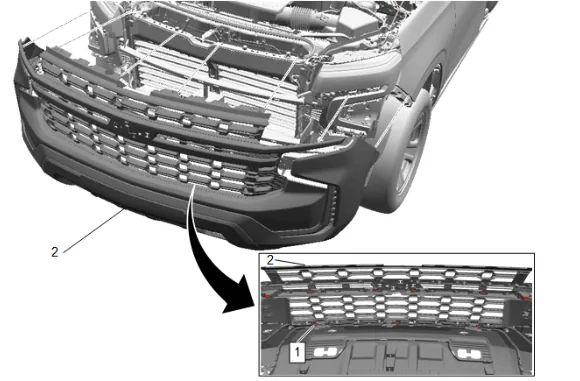

Front Bumper Fascia Guide Replacement — figure 1

1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

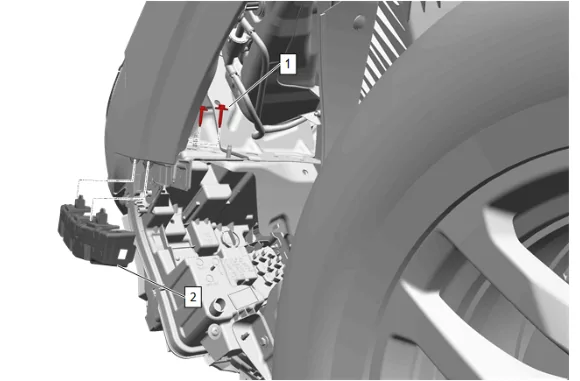

Front Bumper Fascia Guide Replacement — figure 2

2. Front Bumper Fascia Guide Bolt (1) » Remove [2x]

3. Front Bumper Fascia Guide (2) » Remove Installation Procedure

4. Front Bumper Fascia Guide (2) » Install

Note

The final torque on the front bumper fascia guide bolt (1) is to be applied during the front bumper fascia removal and installation procedure.

2. Front Bumper Fascia Guide Bolt (1) » Install and hand tighten [2x]

3. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
