Rear Seat Belt Buckle Replacement (60 Percent with UH5)

Removal Procedure

Rear Seat Belt Buckle Replacement (60 Percent with UH5) — figure 1

1. Rear Seat Cushion Cover and Pad (1) » Remove — Rear Seat Cushion Cover and Pad Removal and Installation

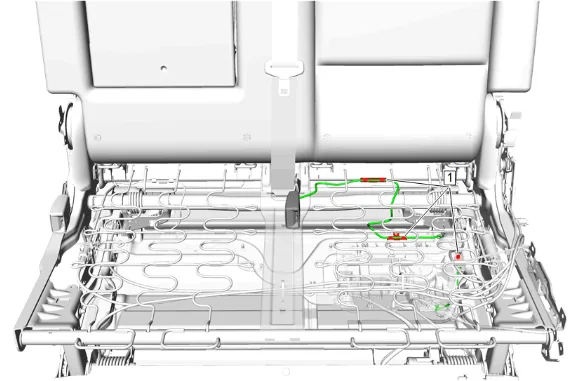

Rear Seat Belt Buckle Replacement (60 Percent with UH5) — figure 2

2. Disconnect the electrical connector.
3. Disconnect the wiring harness retainers (1) and reposition the harness as necessary.

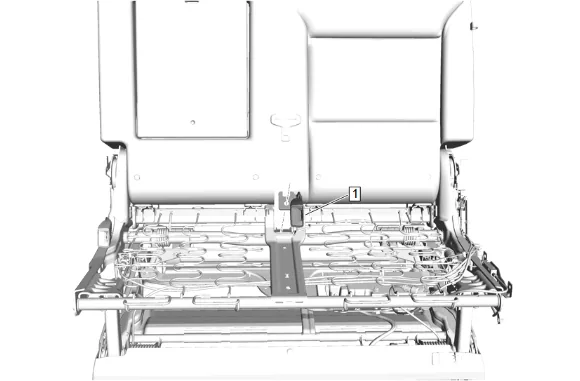

Rear Seat Belt Buckle Replacement (60 Percent with UH5) — figure 3

4. Rear Seat Belt Buckle (1) » Remove

5. Reposition the rear seat center belt and anchor plate as needed. Installation Procedure

6. Position the rear seat center belt and anchor plate to the original location.

7. Rear Seat Belt Buckle (1) » Install

8. Position the wiring harness and connect the wiring harness retainers (1).

9. Connect the electrical connector.

10. Rear Seat Cushion Cover and Pad (1) » Install — Rear Seat Cushion Cover and Pad Removal and Installation
