Transfer Case Front Half Cleaning and Inspection

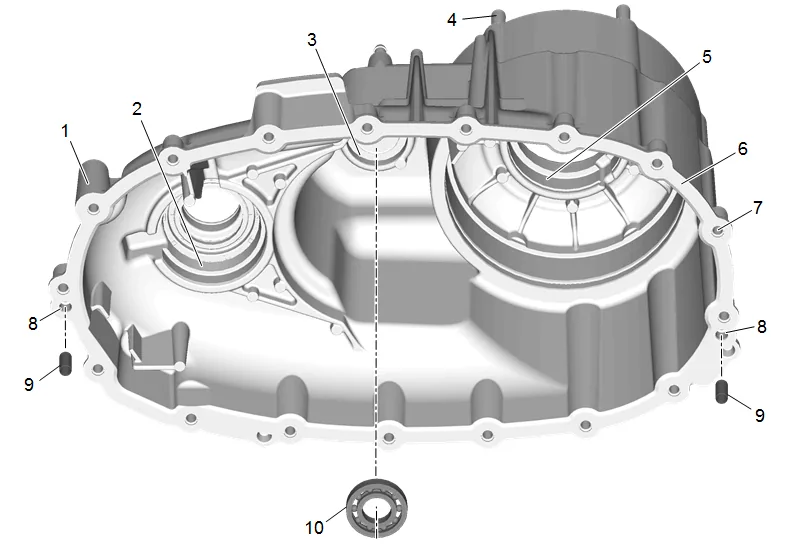

Transfer Case Front Half Cleaning and Inspection (1) — figure 1

Caution

Refer to Machined Surface Damage Caution.

1. Inspect all components or sub-components and perform any repair procedure necessary to fix the damage. If the damage cannot be repaired, replace the component or sub-component as indicated.
2. Clean the front case half in cleaning solvent and air dry.
3. Remove any sealant from the sealing surface.
4. Inspect the transfer case front half assembly (1) for cracks, broken areas, or other damage. The component must be replaced if damage is found.
5. Inspect the transfer case front output shaft front bearing bore (2). Replace the front case half assembly if a bearing has spun or if cracks are detected.
6. Inspect the transfer case four wheel drive actuator lever shaft bearing bore (3). Replace the front case half assembly if a bearing has spun or if cracks are detected.
7. Inspect the 6 transfer case studs (4). Replace any damaged studs.
8. Inspect the transfer case input shaft bearing bore (5). Replace the front case half assembly if a bearing has spun or if cracks are detected.
9. Inspect the case sealing surface (6). Repair small scratches or nicks with a soft stone.
10. Inspect the transfer case thread bolt holes (7). Repair any damaged threads.
11. Inspect the transfer case locating pin holes (8). Replace the front case half assembly if the locating pin holes are out of round or damaged.
12. Inspect the 2 transfer case pins (9). Repair or replace loose, missing, or damaged locating pins.
13. Inspect the transfer case four wheel drive actuator lever shaft bearing assembly (10). Replace the bearing if roughness, brinelling, or pitting is detected. Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing Replacement - Front
