Front Side Door Accessory Switch Mount Plate Replacement - Driver Side

Front Side Door Accessory Switch Mount Plate Replacement - Driver Side Removal Procedure

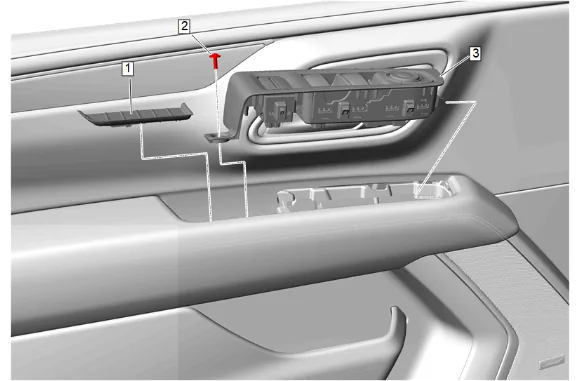

Front Side Door Armrest Pull Cup Bolt Cap (1) » Remove
Front Side Door Trim Bolt (2) » Remove
Using a flat bladed plastic trim tool, start at the rear of the front side door accessory switch mount plate (3) and gently insert trim tool to lift the front side door accessory switch mount plate from the door trim.
Rotate the front side door accessory switch mount plate (3) up and rearward to unhook the front retaining feature.
Disconnect the electrical connectors.
Front Side Door Accessory Switch Mount Plate - Driver Side (3) » Remove

Release the switch (1) from the switch mount plate by depressing the tabs along each side of the switch.
Front Side Door Window Control Switch (1) » Remove

If equipped, using a suitable plastic trim tool, release the front seat adjuster memory switch (1) tabs along each side of the front side door accessory switch mount plate.
Front Seat Adjuster Memory Switch (1) » Remove Installation Procedure
{ If equipped } Front Seat Adjuster Memory Switch (1) » Install
Front Side Door Window Control Switch (1) » Install
Connect the electrical connectors.
Rotate the front side door accessory switch mount plate (3) up and forward to hook the front retaining feature.
Front Side Door Accessory Switch Mount Plate - Driver Side (3) » Install
