Front Bumper Fascia Extension Replacement - Rear

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

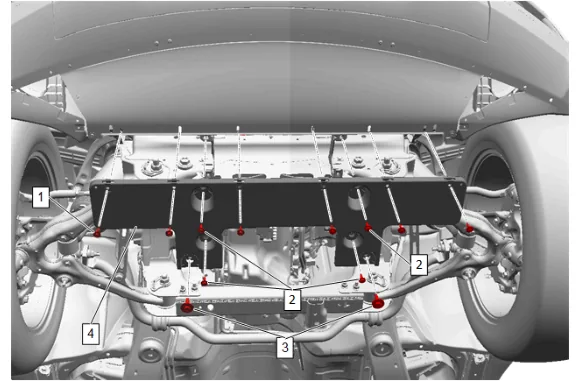

Front Bumper Fascia Extension Replacement - Rear — figure 1
Front Bumper Fascia Extension Replacement - Rear — figure 1

  1. Front Bumper Fascia Air Deflector Bolt (1) » Remove [6x]

  2. Front Bumper Fascia Extension Bolt (2) » Remove [4x]

  3. Front Bumper Fascia Extension Bolt @ Skid Shield (3) » Remove [2x]

  4. Pull the front bumper fascia extension (4) rearward and down.

  5. If equipped, release the wire harness retainer. Installation Procedure

  6. Front Bumper Fascia Extension (4) » Install

  7. If equipped, install the wire harness retainer.

  1. Front Bumper Fascia Extension Bolt (3) @ Skid Shield » Install and tighten [2x] — Fastener Specifications
  2. Front Bumper Fascia Extension Bolt (2) » Install and tighten [4x] — Fastener Specifications
  3. Front Bumper Fascia Air Deflector Bolt (1) » Install and tighten [6x] — Fastener Specifications
  4. Lower the vehicle.
