Front View Driver Information Camera Bracket Replacement

Front View Driver Information Camera Bracket Replacement Removal Procedure

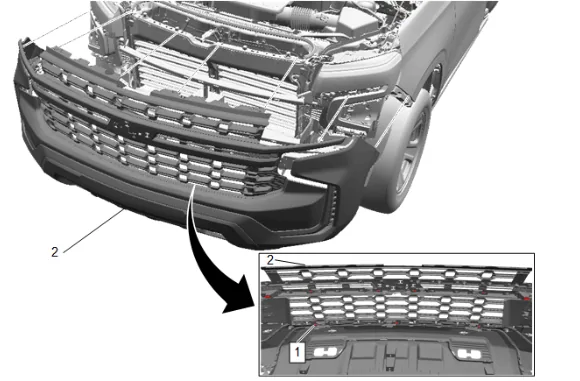

Front View Driver Information Camera Bracket Replacement — figure 1

1. Front Bumper Fascia (1) » Remove — Front Bumper Fascia Removal and Installation

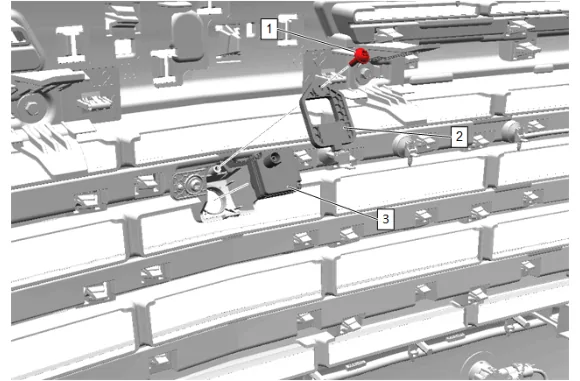

Front View Driver Information Camera Bracket Replacement — figure 2

2. Disconnect the electrical connector.
3. Front View Camera Bolt (1) » Remove
4. Camera Back Plate (2) » Remove
5. Front View Driver Information Camera (3) » Remove

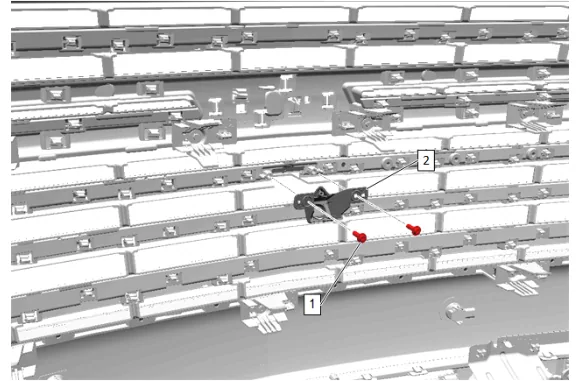

Front View Driver Information Camera Bracket Replacement — figure 3

6. Front View Camera Bracket Bolt (1) » Remove [2x]

7. Front View Driver Information Camera Bracket (2) » Remove Installation Procedure

8. Front View Driver Information Camera Bracket (2) » Install

Caution

Refer to Fastener Caution.

2. Front View Camera Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Front View Driver Information Camera (3) » Install

4. Camera Back Plate (2) » Install

5. Front View Camera Bolt (1) » Install and tighten — Fastener Specifications

6. Connect the electrical connector.

7. Front Bumper Fascia (1) » Install — Front Bumper Fascia Removal and Installation
