Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Left Side

Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Left Side Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Left Side — figure 1
Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Left Side — figure 1

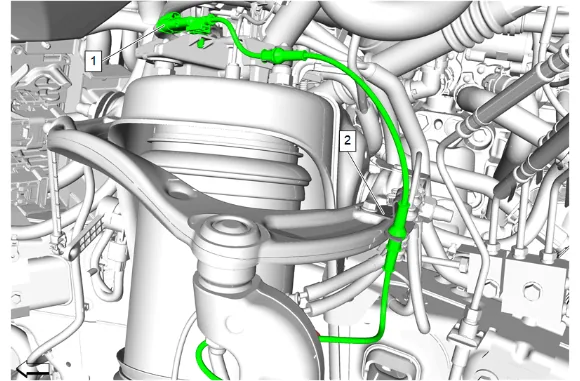

  1. Disconnect the electronic suspension wheel front vertical accelerometer electrical connector (1).
  2. Unclip the electronic suspension wheel front vertical accelerometer from the front wheel speed sensor bracket (2).
Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Left Side — figure 2
Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Left Side — figure 2

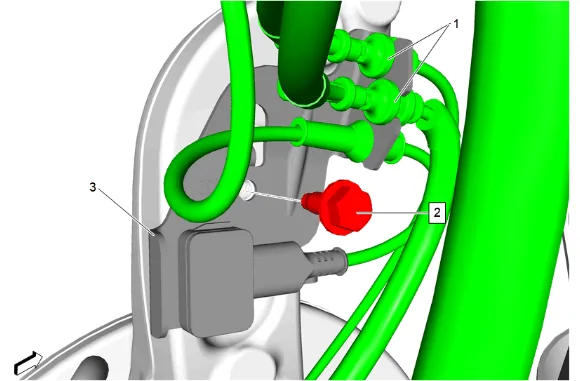

  1. Remove the 2 harnesses (1) from the electronic suspension wheel front vertical accelerometer (3).

  2. Electronic Suspension Rear Vertical Accelerometer Bolt (2) » Remove

  3. Electronic Suspension Wheel Front Vertical Accelerometer (3) » Remove Installation Procedure

  4. Electronic Suspension Wheel Front Vertical Accelerometer (3) » Install

  1. Electronic Suspension Rear Vertical Accelerometer Bolt (2) » Install and tighten — Fastener Specifications

  2. Install the 2 harnesses (1) to the electronic suspension wheel front vertical accelerometer (3).

  3. Clip the electronic suspension wheel front vertical accelerometer to the front wheel speed sensor bracket (2).

  4. Connect the electronic suspension wheel front vertical accelerometer electrical connector (1).

  5. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

  6. Remove the support and lower the vehicle.
