Tahoe / Yukon Service Manual

Charge Air Temperature Secondary Sensor Replacement

Removal Procedure

  1. Oil Filler Cap » Remove

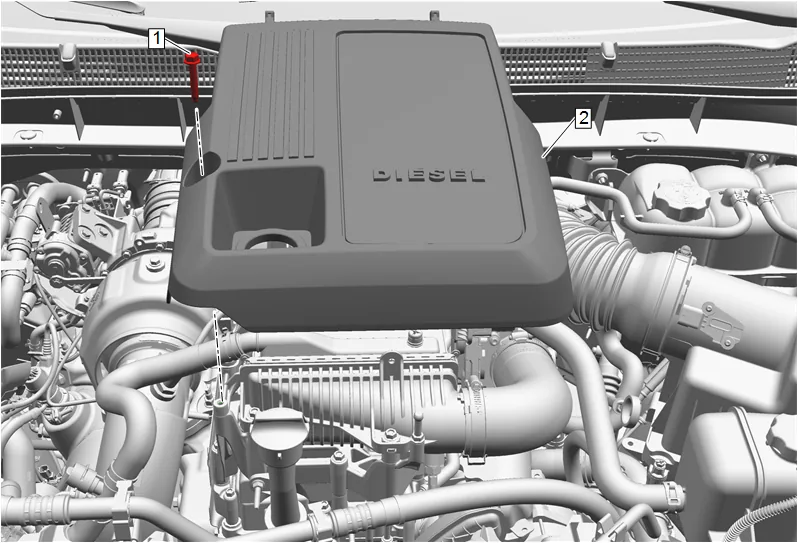

Charge Air Temperature Secondary Sensor Replacement — figure 1
Charge Air Temperature Secondary Sensor Replacement — figure 1
  1. Intake Manifold Cover Bolt (1) » Remove
  2. Intake Manifold Cover (2) » Remove
  3. Install the oil filler cap after removal of the intake manifold cover to prevent debris from falling into the engine.

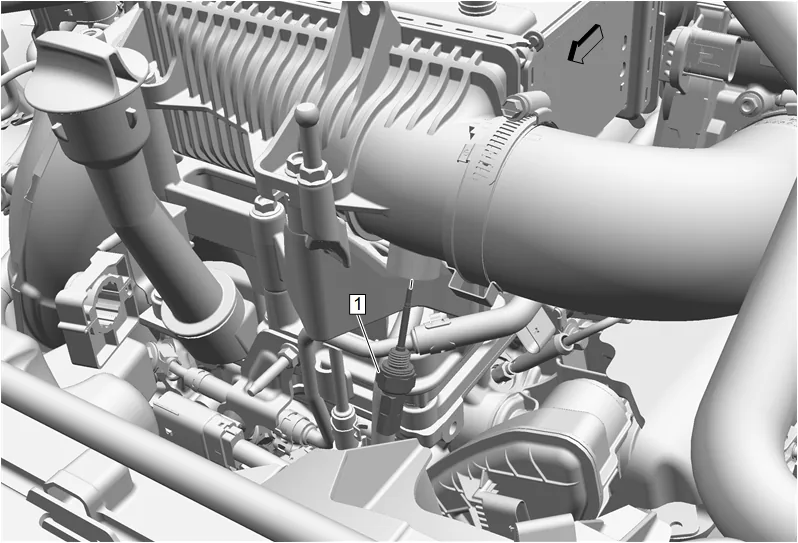

Charge Air Temperature Secondary Sensor Replacement — figure 2
Charge Air Temperature Secondary Sensor Replacement — figure 2
  1. Disconnect the charge air cooler air temperature sensor electrical connector.
  2. Charge Air Cooler Air Temperature Sensor (1) » Remove Installation Procedure

  1. Charge Air Cooler Air Temperature Sensor (1) » Install and tighten — Fastener Specifications

  2. Connect the charge air cooler air temperature sensor electrical connector.

  3. Oil Filler Cap » Remove

  4. Intake Manifold Cover (2) » Install

  5. Intake Manifold Cover Bolt (1) » Install and tighten — Fastener Specifications

  6. Oil Filler Cap » Install
