Front Side Door Window Inner Sealing Strip Replacement

Removal Procedure

1. Front Side Door Trim » Remove — Front Side Door Trim Removal and Installation

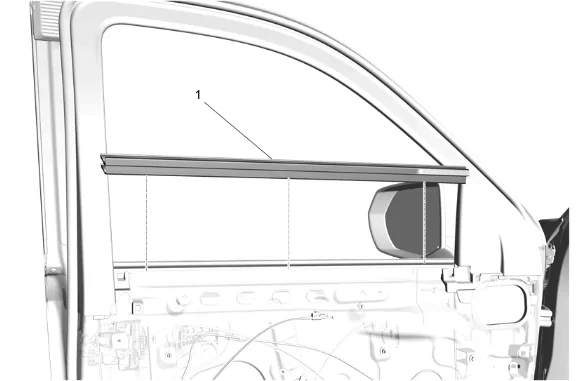

Front Side Door Window Inner Sealing Strip Replacement — figure 1

2. Lift the front side door window inner sealing strip (1) off the pinch-weld flange to remove.

3. Front Side Door Window Inner Sealing Strip (1) » Remove Installation Procedure

4. Press firmly to install the front side door window inner sealing strip (1) back on the door flange.

5. Front Side Door Window Inner Sealing Strip (1) » Install

6. Front Side Door Trim » Install — Front Side Door Trim Removal and Installation
