Instrument Panel Carrier Replacement (with UV6)

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Warning

After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. Removal Procedure

1. Disable the SIR system. SIR Disabling and Enabling

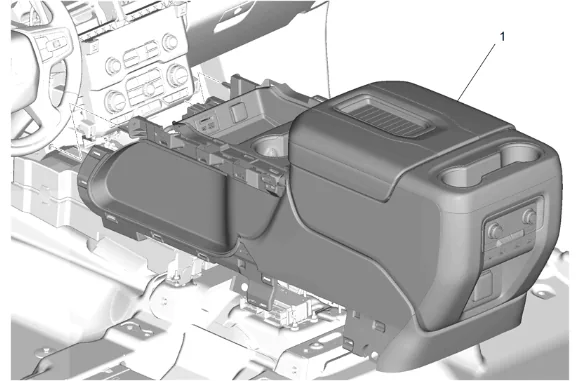

Instrument Panel Carrier Replacement (with UV6) — figure 1

2. Front Floor Console (1) » Remove — Front Floor Console Removal and Installation

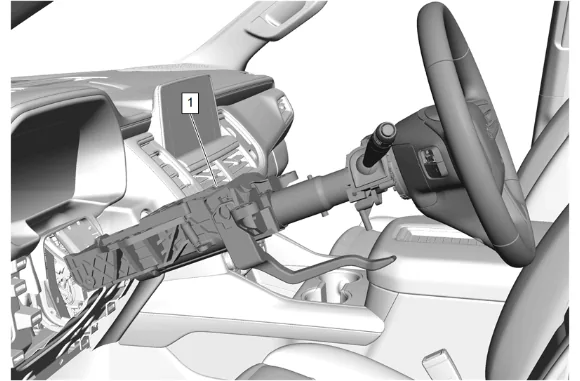

Instrument Panel Carrier Replacement (with UV6) — figure 2

3. Steering Column (1) » Remove — Steering Column Removal and Installation

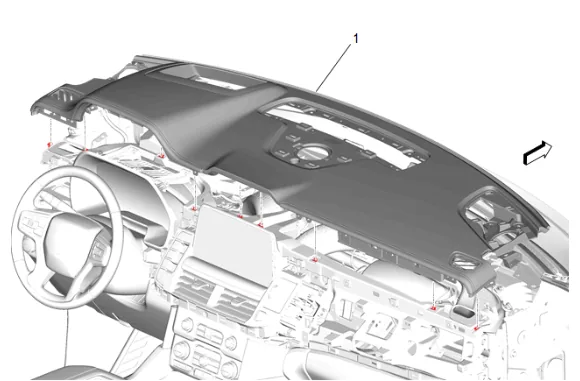

Instrument Panel Carrier Replacement (with UV6) — figure 3

4. Instrument Panel Upper Trim Panel (1) » Remove — Instrument Panel Upper Trim Panel Removal and Installation

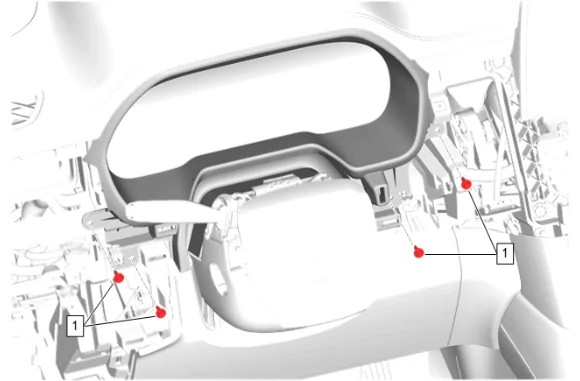

Instrument Panel Carrier Replacement (with UV6) — figure 4

5. Instrument Panel Cluster Trim Plate Bolt (1) » Remove [4x]

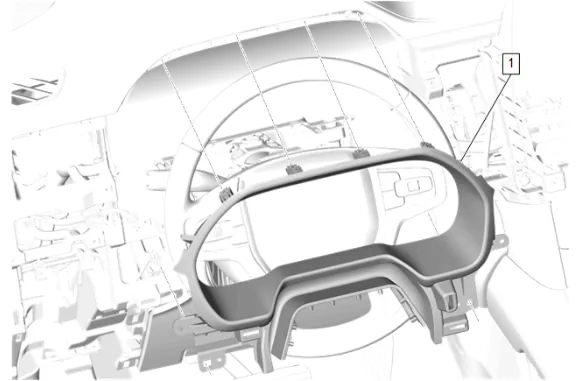

Instrument Panel Carrier Replacement (with UV6) — figure 5

Note

Use a plastic trim tool if necessary.

6. Instrument Panel Cluster Trim Plate (1) » Remove

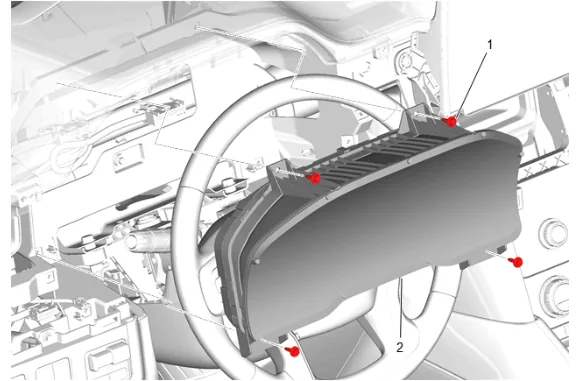

Instrument Panel Carrier Replacement (with UV6) — figure 6

7. Instrument Cluster Bolt (1) » Remove [4x]
8. Disconnect the electrical connectors.
9. Instrument Cluster (2) » Remove

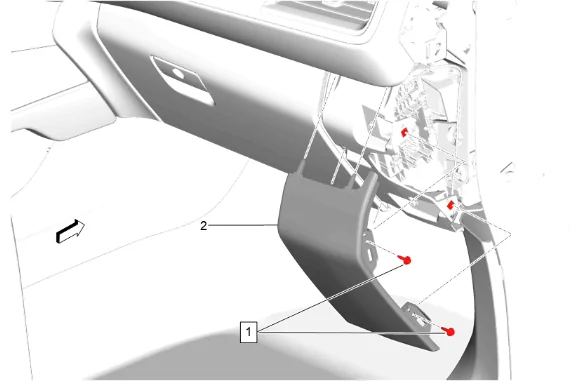

Instrument Panel Carrier Replacement (with UV6) — figure 7

10. Instrument Panel Compartment Bolt (1) » Remove [2x]
11. Using a flat-bladed plastic trim tool, release the retaining clips.
12. Instrument Panel Lower Trim Panel Outer Filler (2) » Remove

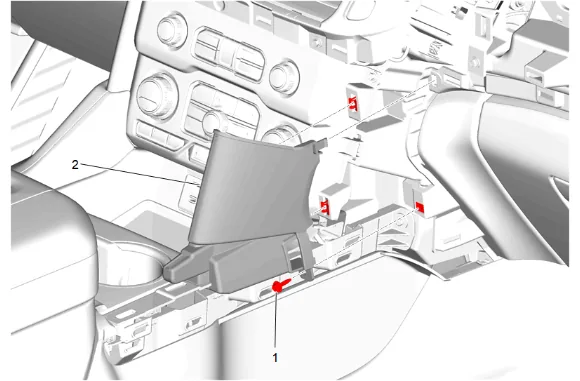

Instrument Panel Carrier Replacement (with UV6) — figure 8

13. Instrument Panel Lower Trim Panel Bolt (1) » Remove
14. Using a flat-bladed plastic trim tool, release the retaining clips.
15. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

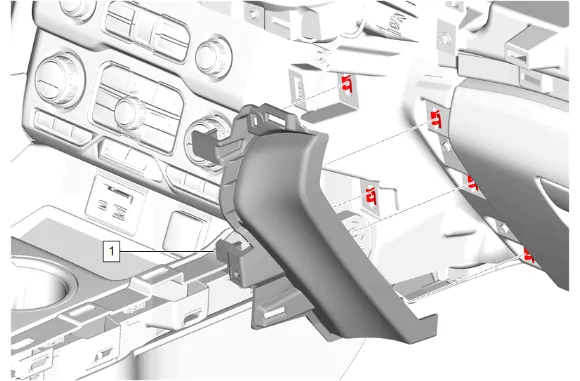

Instrument Panel Carrier Replacement (with UV6) — figure 9

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Instrument Panel Lower Trim Panel (1) » Remove

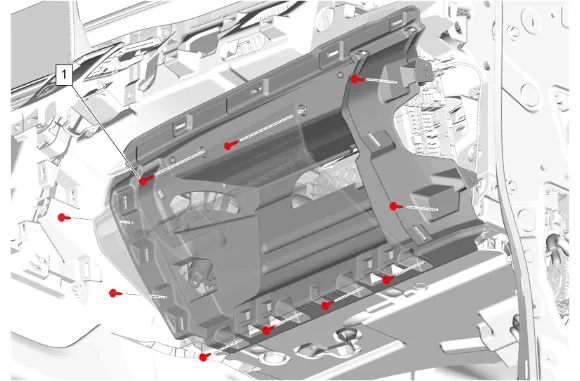

Instrument Panel Carrier Replacement (with UV6) — figure 10

18. Instrument Panel Compartment Bolt (1) » Remove [10x]

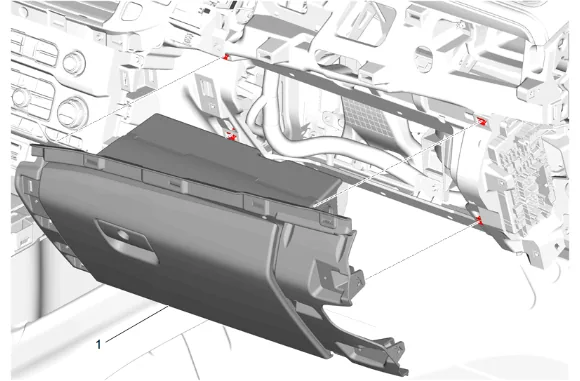

Instrument Panel Carrier Replacement (with UV6) — figure 11

19. Instrument Panel Compartment (1) » Remove

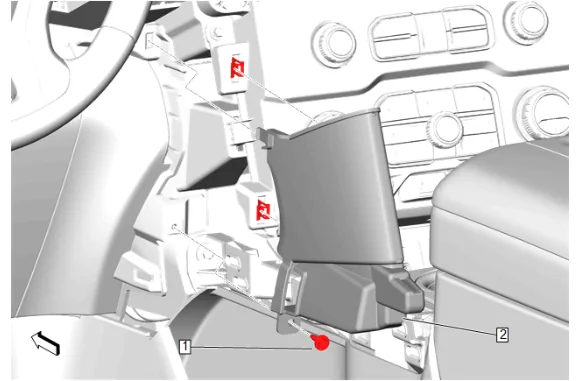

Instrument Panel Carrier Replacement (with UV6) — figure 12

20. Using a flat-bladed plastic trim tool, release the retaining clips.
21. Instrument Panel Lower Trim Panel Bolt (1) » Remove
22. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

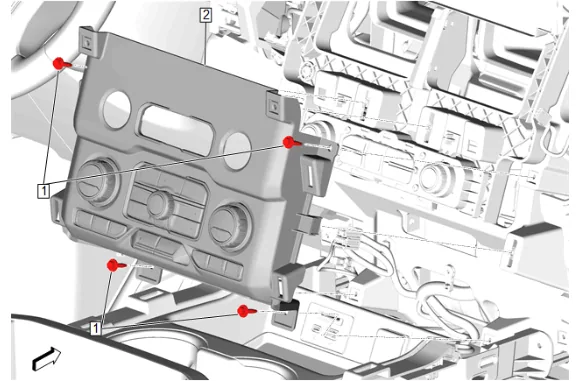

Instrument Panel Carrier Replacement (with UV6) — figure 13

23. Instrument Panel Accessory Bezel Bolt (1) » Remove [4x]

Note

Use a plastic trim tool if necessary.

24. Instrument Panel Accessory Bezel (2) » Remove
25. Disconnect the electrical connectors.

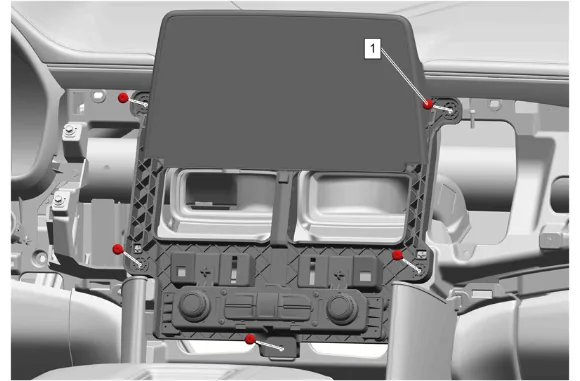

Instrument Panel Carrier Replacement (with UV6) — figure 14

26. Radio Control Bolt (1) » Remove [5x]

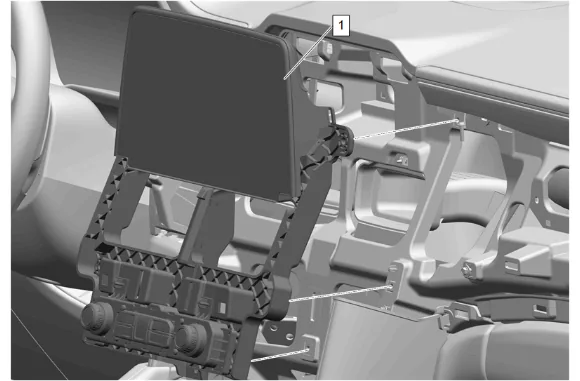

Instrument Panel Carrier Replacement (with UV6) — figure 15

27. Disconnect the electrical connectors.
28. Radio Control (1) » Remove

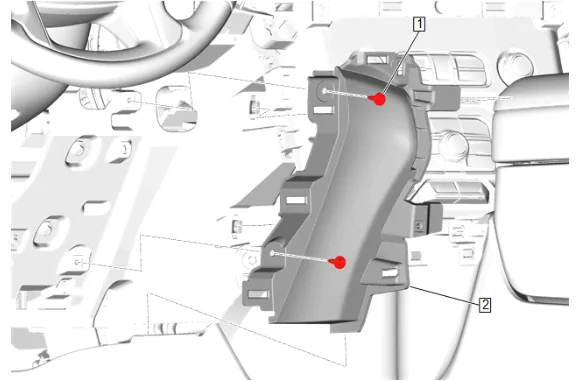

Instrument Panel Carrier Replacement (with UV6) — figure 16

29. Instrument Panel Lower Trim Panel Bolt (1) » Remove [2x]

Note

Use a plastic trim tool if necessary.

30. Instrument Panel Lower Trim Panel (2) » Remove

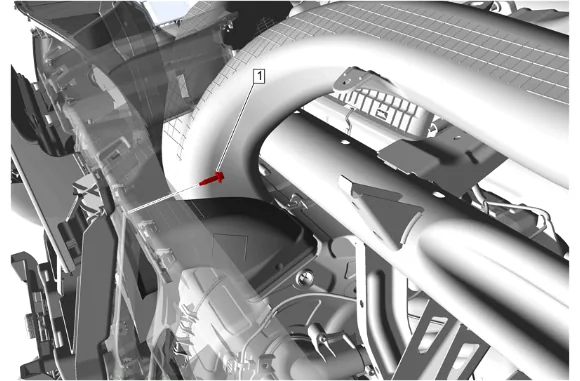

Instrument Panel Carrier Replacement (with UV6) — figure 17

31. Instrument Panel Center Air Outlet Duct Bolt (1) » Remove

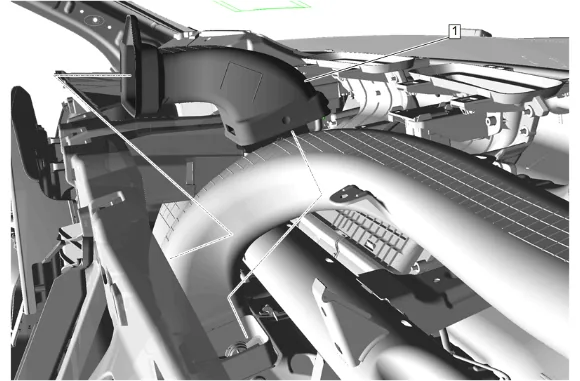

Instrument Panel Carrier Replacement (with UV6) — figure 18

32. Instrument Panel Center Air Outlet Duct - Right Side (1) » Remove

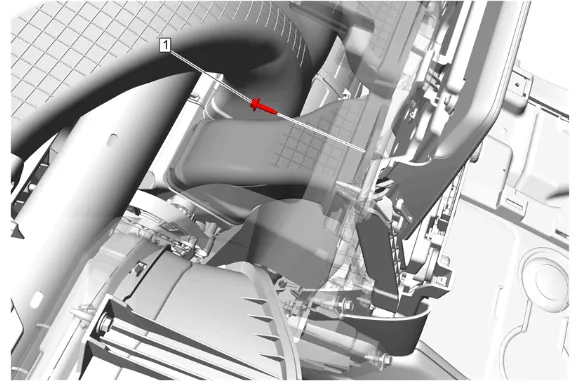

Instrument Panel Carrier Replacement (with UV6) — figure 19

33. Instrument Panel Center Air Outlet Duct Bolt (1) » Remove

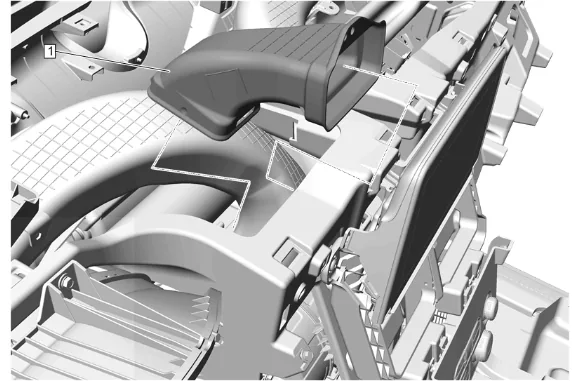

Instrument Panel Carrier Replacement (with UV6) — figure 20

34. Instrument Panel Center Air Outlet Duct - Left Side (1) » Remove

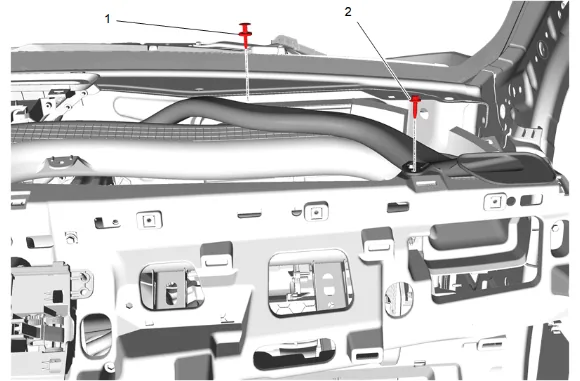

Instrument Panel Carrier Replacement (with UV6) — figure 21

35. Side Window Defogger Outlet Duct Retainer (1) » Remove
36. Side Window Defogger Outlet Duct Bolt (2) » Remove

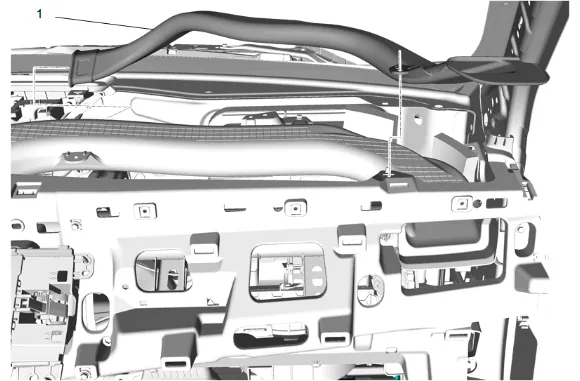

Instrument Panel Carrier Replacement (with UV6) — figure 22

37. Side Window Defogger Outlet Duct - Right Side (1) » Remove

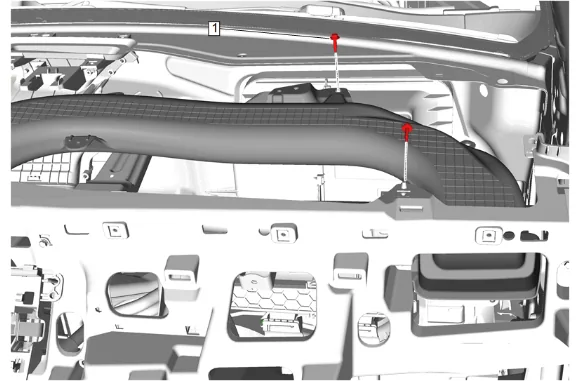

Instrument Panel Carrier Replacement (with UV6) — figure 23

38. Instrument Panel Outer Air Outlet Bolt (1) » Remove [2x]
39. Remove the wiring harness retainers form the right instrument panel outer air outlet duct.

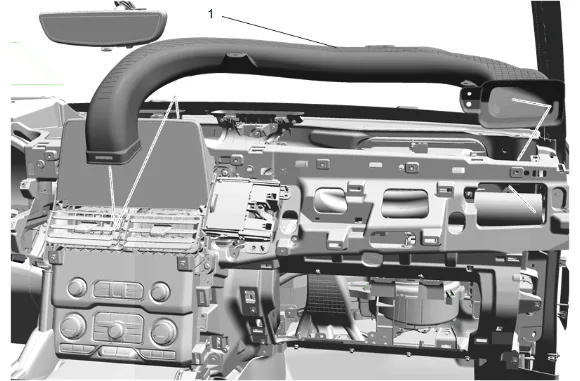

Instrument Panel Carrier Replacement (with UV6) — figure 24

40. Instrument Panel Outer Air Outlet Duct - Right Side (1) » Remove

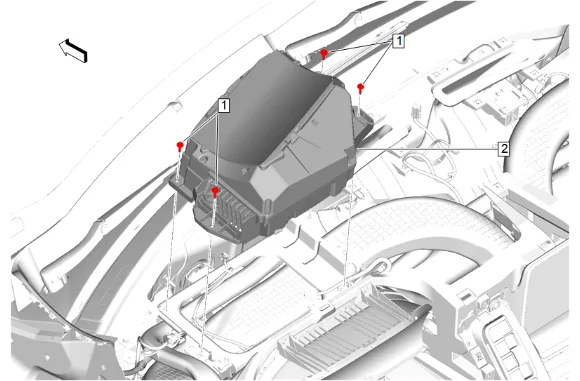

Instrument Panel Carrier Replacement (with UV6) — figure 25

41. Head-Up Display Bolt (1) » Remove [4x]
42. Disconnect the electrical connector.
43. Head-Up Display (2) » Remove

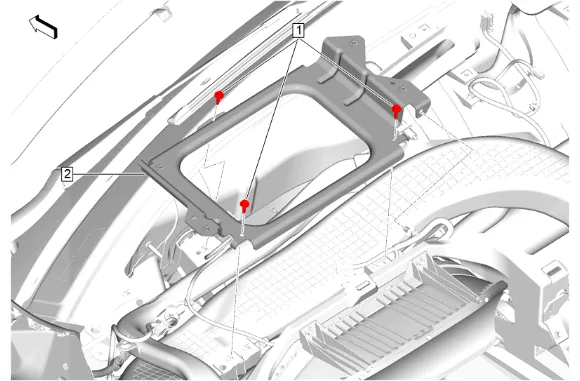

Instrument Panel Carrier Replacement (with UV6) — figure 26

44. Head-Up Display Bracket Bolt (1) » Remove [3x]
45. Disconnect and reposition harness as necessary.
46. Head-Up Display Bracket (2) » Remove

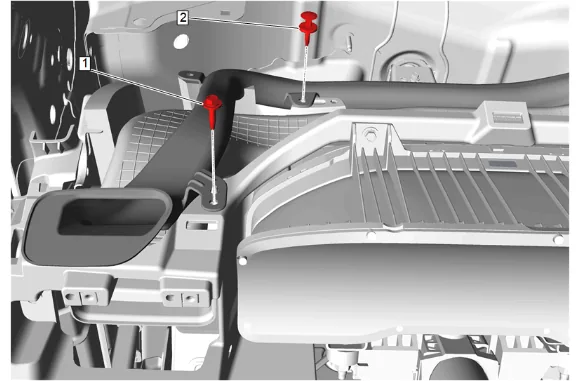

Instrument Panel Carrier Replacement (with UV6) — figure 27

47. Side Window Defogger Outlet Duct Bolt (1) » Remove
48. Side Window Defogger Outlet Duct Retainer (2) » Remove

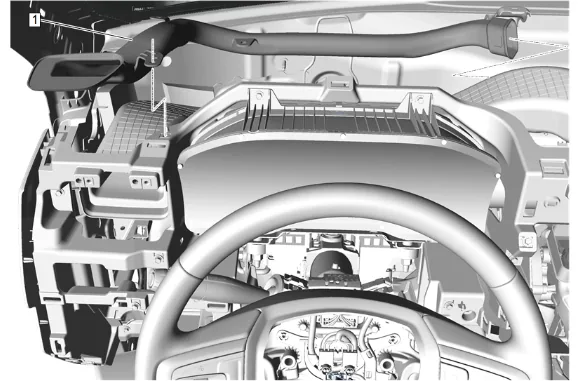

Instrument Panel Carrier Replacement (with UV6) — figure 28

49. Side Window Defogger Outlet Duct - Left Side (1) » Remove

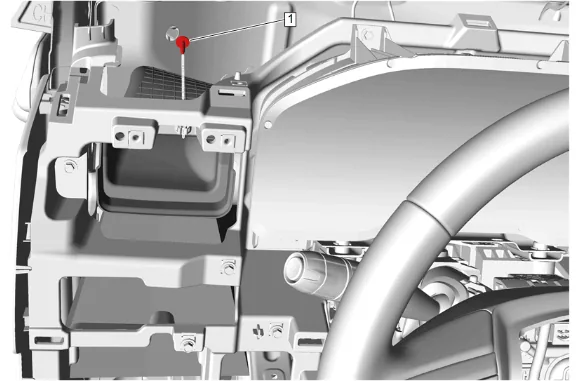

Instrument Panel Carrier Replacement (with UV6) — figure 29

50. Instrument Panel Outer Air Outlet Duct Bolt (1) » Remove

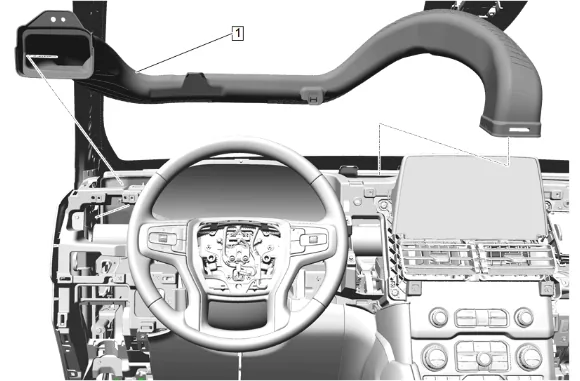

Instrument Panel Carrier Replacement (with UV6) — figure 30

51. Instrument Panel Outer Air Outlet Duct - Left Side (1) » Remove

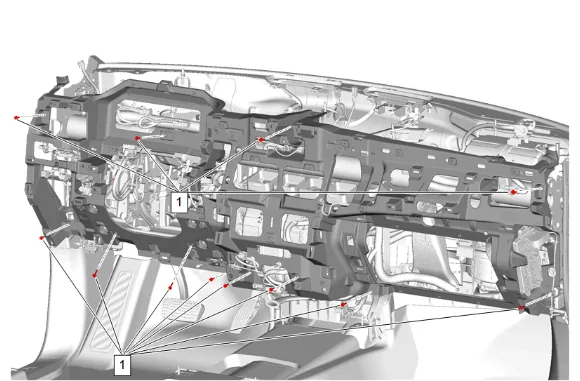

Instrument Panel Carrier Replacement (with UV6) — figure 31

Note

Note the location and routing of the wiring harness to ensure proper reinstallation.

52. Disconnect and reposition harness as necessary and remove the fuse block.
53. Instrument Panel Carrier Bolt (1) » Remove [12x]

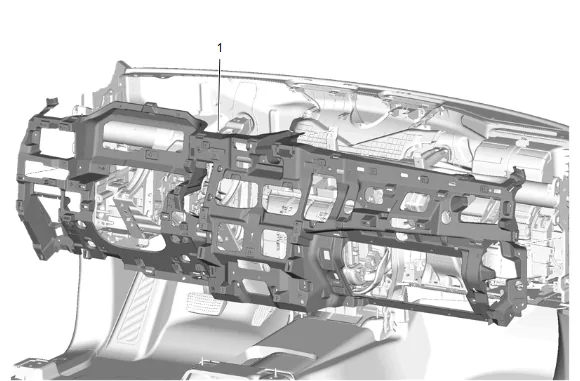

Instrument Panel Carrier Replacement (with UV6) — figure 32

54. Be aware of any remaining harness retainers that may need to be disconnected before the removal of the instrument panel carrier (1).

55. Instrument Panel Carrier (1) » Remove Installation Procedure

56. Instrument Panel Carrier (1) » Install

57. Connect and position the wiring harness.

Caution

Refer to Fastener Caution.

3. Instrument Panel Carrier Bolt (1) » Install and tighten [12x] — Fastener Specifications

4. Install the fuse block and connect the harness as noted when removed.

5. Instrument Panel Outer Air Outlet Duct - Left Side (1) » Install

6. Instrument Panel Outer Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

7. Side Window Defogger Outlet Duct - Left Side (1) » Install

8. Side Window Defogger Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

9. Side Window Defogger Outlet Duct Retainer (2) » Install

10. Head-Up Display Bracket (2) » Install

11. Connect and position the wiring harness.

12. Head-Up Display Bracket Bolt (1) » Install and tighten [3x] — Fastener Specifications

13. Connect the electrical connector.

Note

Ensure that each tab on the head-up display is properly seated in the mating hole for proper alignment.

14. Head-Up Display (2) » Install

15. Head-Up Display Bolt (1) » Install and tighten [4x] — Fastener Specifications

16. Instrument Panel Outer Air Outlet Duct - Right Side (1) » Install

17. Instrument Panel Outer Air Outlet Bolt (1) » Install and tighten [2x] — Fastener Specifications

18. Install the wiring harness retainers onto the right instrument panel outer air outlet duct.

19. Side Window Defogger Outlet Duct - Right Side (1) » Install

20. Side Window Defogger Outlet Duct Bolt (2) » Install and tighten — Fastener Specifications

21. Side Window Defogger Outlet Duct Retainer (1) » Install

22. Instrument Panel Center Air Outlet Duct - Left Side (1) » Install

23. Instrument Panel Center Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

24. Instrument Panel Center Air Outlet Duct - Right Side (1) » Install

25. Instrument Panel Center Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

26. Instrument Panel Lower Trim Panel (2) » Install

27. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten [2x] — Fastener Specifications

28. Connect the electrical connectors.

29. Radio Control (1) » Install

30. Radio Control Bolt (1) » Install and tighten [5x] — Fastener Specifications

31. Connect the electrical connectors.

32. Instrument Panel Accessory Bezel (2) » Install

33. Instrument Panel Accessory Bezel Bolt (1) » Install and tighten [4x] — Fastener Specifications

34. Instrument Panel Lower Center Trim Plate Applique (2) » Install

35. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

36. Instrument Panel Compartment (1) » Install

37. Instrument Panel Compartment Bolt (1) » Install and tighten [10x] — Fastener Specifications

38. Instrument Panel Lower Trim Panel (1) » Install

39. Instrument Panel Lower Center Trim Plate Applique (2) » Install

40. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

41. Instrument Panel Lower Trim Panel Outer Filler (2) » Install

42. Instrument Panel Compartment Bolt (1) » Install and tighten [2x] — Fastener Specifications

43. Connect the electrical connectors.

44. Instrument Cluster (2) » Install

45. Instrument Cluster Bolt (1) » Install and tighten [4x] — Fastener Specifications

46. Instrument Panel Cluster Trim Plate (1) » Secure

47. Instrument Panel Upper Trim Panel (1) » Install — Instrument Panel Upper Trim Panel Removal and Installation

48. Steering Column (1) » Install — Steering Column Removal and Installation

49. Front Floor Console (1) » Install — Front Floor Console Removal and Installation

50. Enable the SIR System. SIR Disabling and Enabling
