Outside Rearview Mirror Gasket Replacement

Removal Procedure

Warning

Refer to Glass and Sheet Metal Handling Warning.

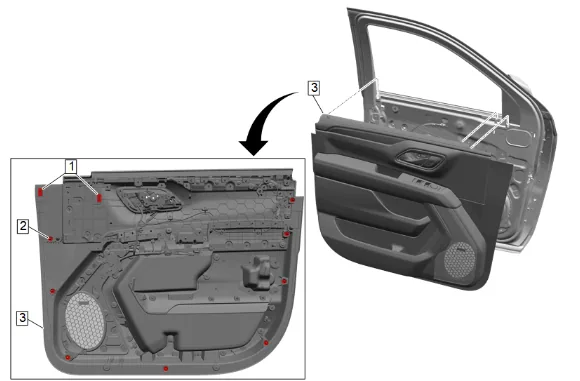

Outside Rearview Mirror Gasket Replacement — figure 1

1. Front Side Door Trim (3) » Remove — Front Side Door Trim Removal and Installation

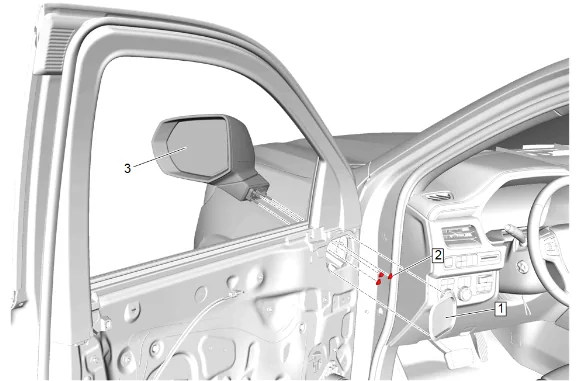

Outside Rearview Mirror Gasket Replacement — figure 2

2. Outside Rearview Mirror Nut Access Hole Plug (1) » Remove
3. Disconnect all electrical connectors.

Note

Leave 1 outside rearview mirror nut partially installed, secure the outside rearview mirror housing, and proceed to remove remaining outside rearview mirror nut.

4. Outside Rearview Mirror Nut (2) » Remove [3x]
5. Outside Rearview Mirror Housing (3) » Remove

Outside Rearview Mirror Gasket Replacement — figure 3

6. Outside Rearview Mirror Gasket (1) » Remove Installation Procedure

7. Outside Rearview Mirror Gasket (1) » Install

8. Outside Rearview Mirror Housing (3) » Install

Caution

Refer to Fastener Caution.

3. Outside Rearview Mirror Nut (2) » Install and tighten [3x] — Fastener Specifications

4. Connect all electrical connectors.

5. Outside Rearview Mirror Nut Access Hole Plug (1) » Install

6. Front Side Door Trim (3) » Install — Front Side Door Trim Removal and Installation
