Automatic Transmission Case Extension Replacement (L84, L87 4WD with NQH)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - On Vehicle | Document ID: 5595867 Automatic Transmission Case Extension Replacement (L84, L87 4WD with NQH) Single Use Fasteners and Components Automatic Transmission Case Extension Seal Exhaust System Seal - Left Side Exhaust System Seal - Right Side Transfer Case Front Output Shaft Boot Clamp Transfer Case Adapter Gasket Removal Procedure

1. Transfer Case Assembly » Remove — Transfer Case Assembly Replacement

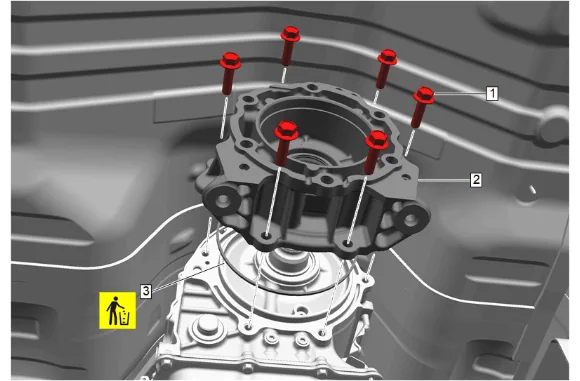

Automatic Transmission Case Extension Replacement (L84, L87 4WD with NQH) — figure 1

2. Automatic Transmission Case Extension Bolt (1) » Remove [6x]

3. Automatic Transmission Case Extension (2) » Remove

4. Automatic Transmission Case Extension Seal (3) » Remove and DISCARD Installation Procedure

5. Automatic Transmission Case Extension Seal (3) » Install NEW

6. Lubricate the inner diameter of the transmission output shaft seal with NEW transmission fluid prior to installing the automatic transmission case extension. Adhesives, Fluids, Lubricants, and Sealers

7. Automatic Transmission Case Extension (2) » Install

Caution

Refer to Fastener Caution.

4. Automatic Transmission Case Extension Bolt (1) » Install and tighten in sequence [6x] — Fastener Specifications
5. Transfer Case Assembly » Install — Transfer Case Assembly Replacement
6. If necessary, check the transmission fluid level and condition. Transmission Fluid Level and Condition Check
