Front Floor Speaker Replacement

Removal Procedure

1. Front Floor Console » Remove — Front Floor Console Removal and Installation

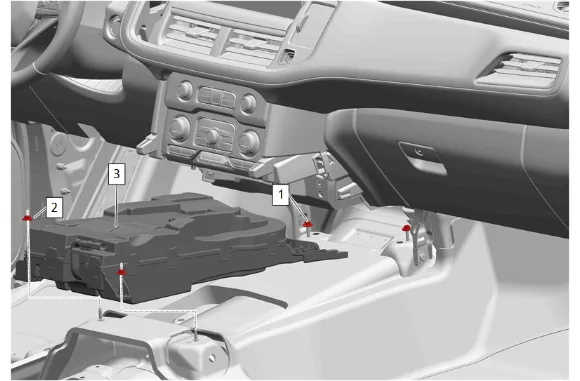

Front Floor Speaker Replacement — figure 1

2. Disconnect the electrical connector.

3. Release the retainer.

4. Radio Front Floor Speaker Nut - Front (1) » Loosen [2x]

5. Radio Front Floor Speaker Nut - Rear (2) » Remove [2x]

6. Lift and slide the front floor speaker (3) rearward from the 2 front studs to remove. Installation Procedure

7. Front Floor Speaker (3) » Install

Caution

Refer to Fastener Caution.

2. Radio Front Floor Speaker Nut - Rear (2) » Install and tighten [2x] — Fastener Specifications
3. Radio Front Floor Speaker Nut - Front (1) » Tighten [2x] — Fastener Specifications
4. Install the retainer.
5. Connect the electrical connector.
6. Front Floor Console » Install — Front Floor Console Removal and Installation
