Battery Distribution Engine Compartment Fuse Block Replacement (LM2)
Battery Distribution Engine Compartment Fuse Block Replacement (LM2) Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

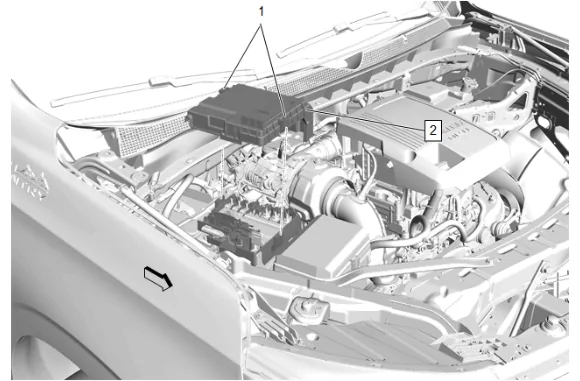

- Retaining Tab (1) » Disengage [2x]
- Front Compartment Fuse Block Cover (2) » Remove

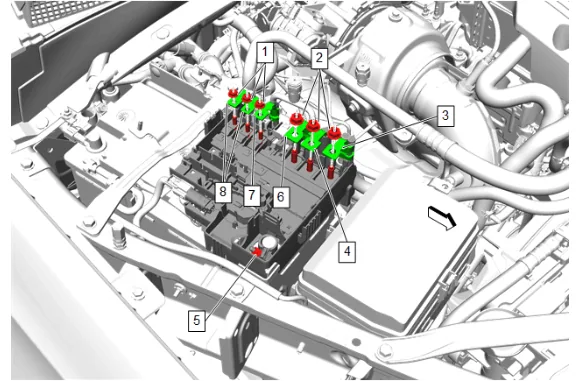

- Battery Positive Cable Nut (1) » Remove [3x]
- Battery Positive Cable Nut (2) » Remove [3x]
- Generator Battery Jumper Cable (3) » Remove
- Power Steering Wiring Harness (4) » Remove
- Starter Solenoid Cable (6) » Remove
- Body Wiring Harness (7) » Remove
- Engine Wiring Harness (8) » Remove [2x]
- Battery Positive Post Clamp Nut (5) » Loosen

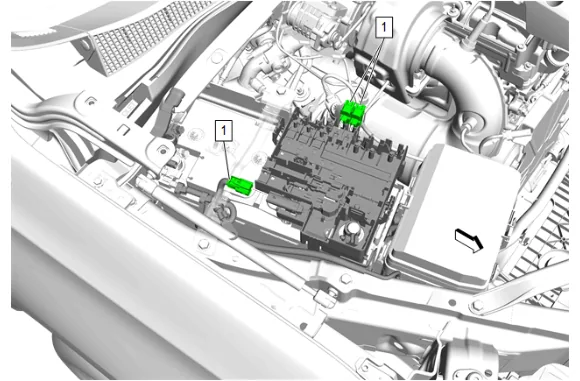

- Electrical Connector (1) » Disconnect [3x]
-

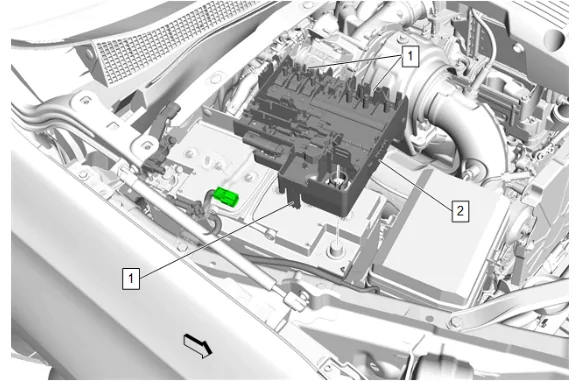

Retaining Tab (1) » Disengage [3x]
-
Battery Distribution Engine Compartment Fuse Block (2) » Remove Installation Procedure
-
Battery Distribution Engine Compartment Fuse Block (2) » Install
-
Retaining Tab (1) » Engage [3x]
-
Battery Positive Post Clamp Nut (5) » Tighten — Fastener Specifications
-
Engine Wiring Harness (8) » Install [2x]
-
Body Wiring Harness (7) » Install
-
Battery Positive Cable Nut (1) » Install and tighten [3x] — Fastener Specifications
-
Starter Solenoid Cable (6) » Install
-
Power Steering Wiring Harness (4) » Install
-
Generator Battery Jumper Cable (3) » Install
-
Battery Positive Cable Nut (2) » Install and tighten [3x] — Fastener Specifications
-
Electrical Connector (1) » Connect [3x]
-
Front Compartment Fuse Block Cover (2) » Install
-
Retaining Tab (1) » Engage [2x]
-
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
