Fuel Feed Intermediate Pipe Replacement - Position 1 (L87)

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5739238 Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) Single Use Fasteners and Components Fuel Feed Intermediate Pipe Intake Manifold Gasket [8x] Removal Procedure

Warning

Refer to Safety Glasses Warning.

1. Relieve the fuel pressure. Fuel Pressure Relief

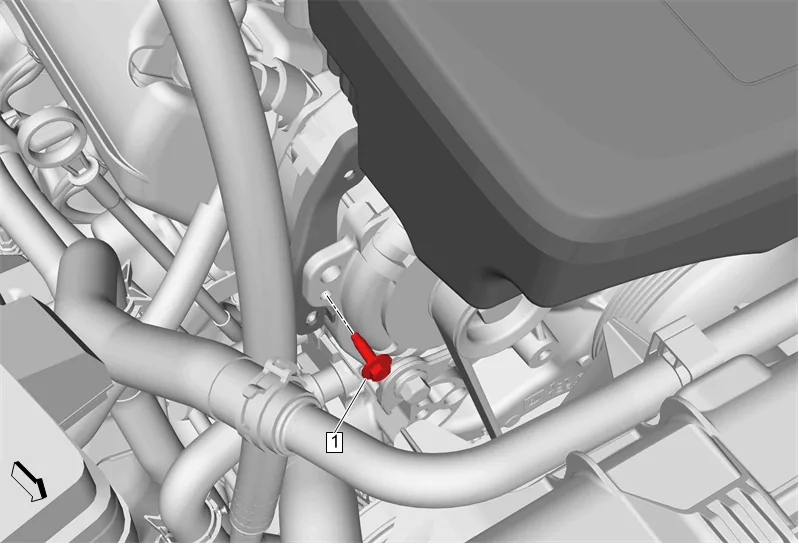

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 1

2. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
3. Remove engine wiring harness from air cleaner outlet duct bracket.

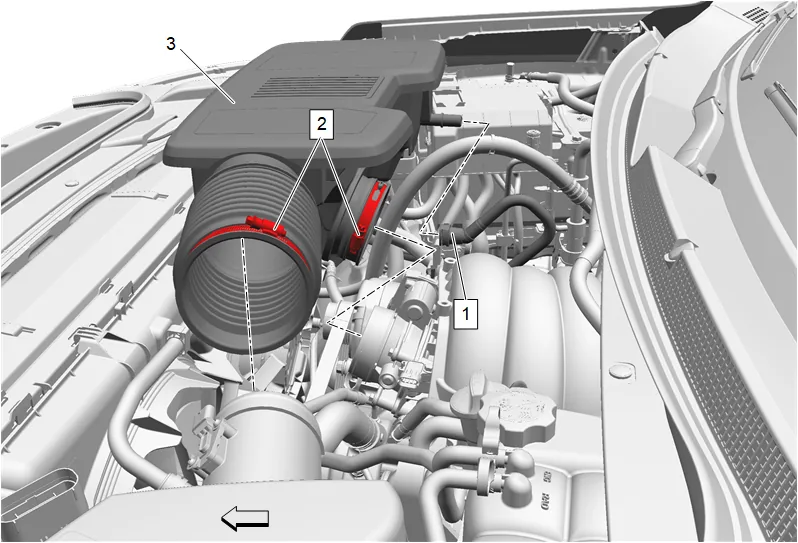

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 2

4. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
5. Air Cleaner Outlet Duct Clamp (2) » Loosen [2x]
6. Air Cleaner Outlet Duct (3) » Remove

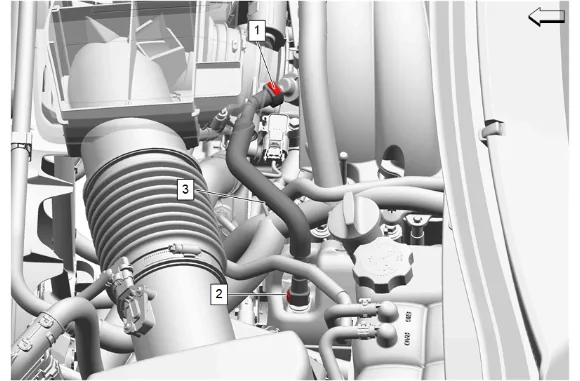

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 3

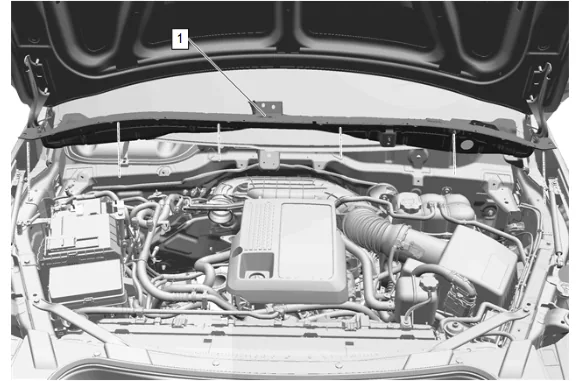

7. Plenum Front Panel Outer Reinforcement (1) » Remove — Plenum Front Panel Outer Reinforcement Removal and Installation

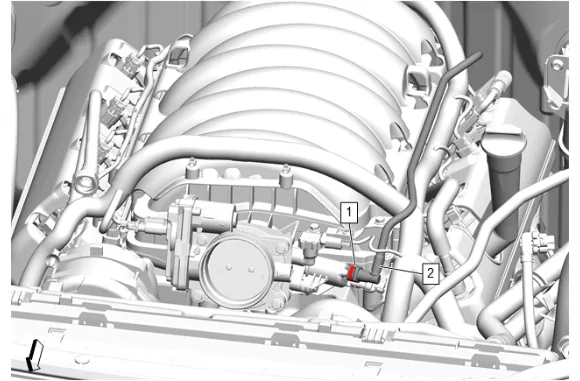

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 4

8. Evaporative Emission Canister Purge Tube Connector (1) @ Evaporative Emission Canister Purge Solenoid Valve » Disengage — Plastic Collar Quick Connect Fitting Service
9. Evaporative Emission Canister Purge Tube (2) @ Evaporative Emission Canister Purge Solenoid Valve » Remove and position aside

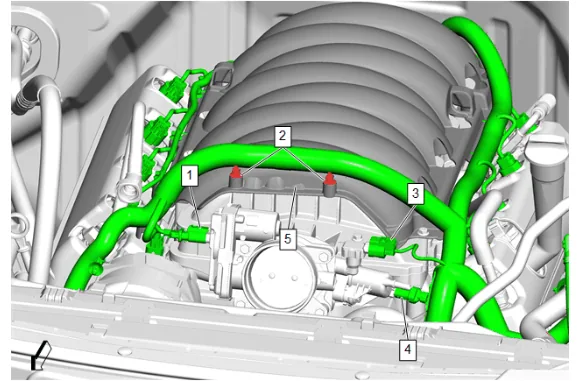

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 5

10. Engine Wiring Harness Connector (1) @ Throttle Body » Disconnect
11. Engine Wiring Harness Retainer (2) @ Intake Manifold Cover » Remove [2x]
12. Engine Wiring Harness Connector (3) @ Manifold Absolute Pressure Sensor » Disconnect
13. Engine Wiring Harness Connector (4) @ Evaporative Emission Canister Purge Solenoid Valve » Disconnect

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 6

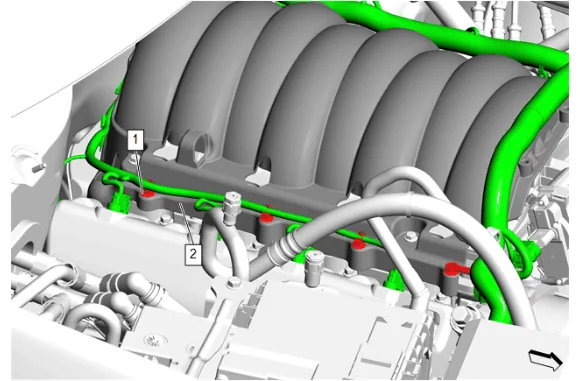

14. Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) » Remove [4x]

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 7

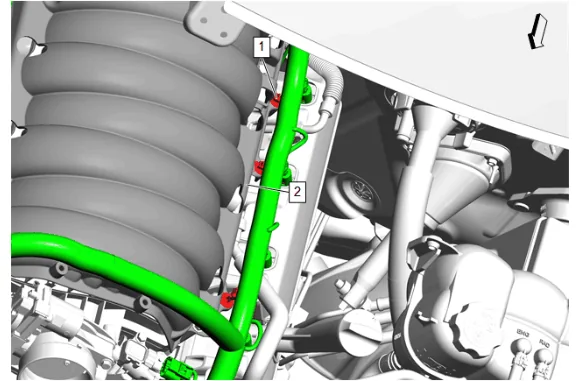

15. Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) » Remove [3x]

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 8

16. Positive Crankcase Ventilation Tube Connector (2) @ Intake Manifold » Disconnect and reposition — Plastic Collar Quick Connect Fitting Service

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 9

Note

Some components not shown for graphic clarity.

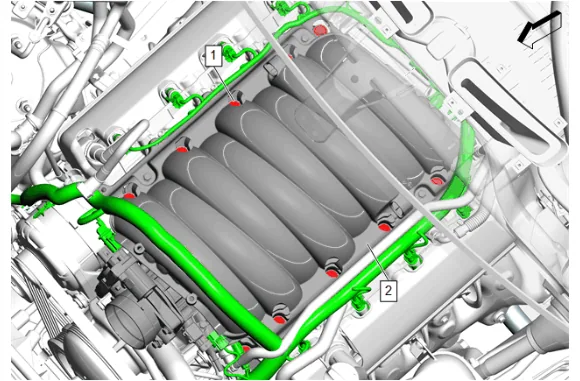

17. Loosen the 10 intake manifold bolts (1) until the bolts are no longer threaded into the cylinder heads.
18. Move the intake manifold and intake manifold cover (2) forward enough to gain access to the rear engine wiring harness retainers.

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 10

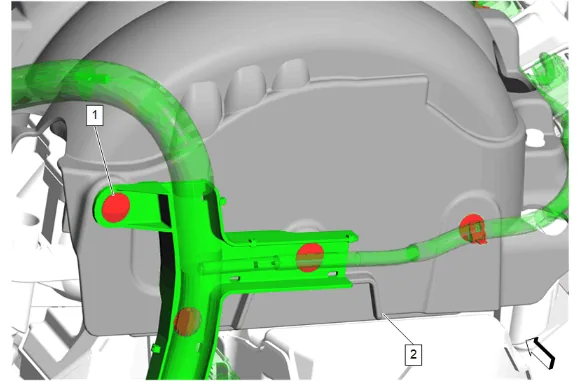

19. Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) » Remove [4x]

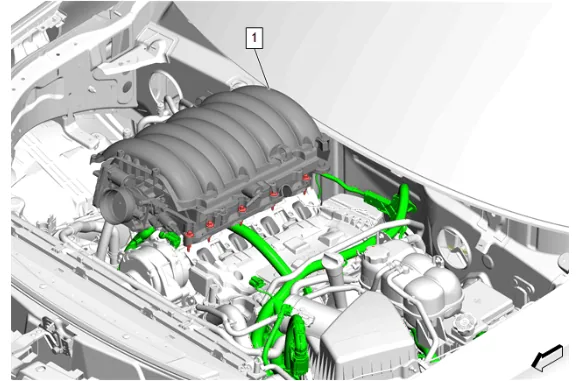

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 11

Note

The aid of an assistant may be helpful in holding the engine harness up out of the way so the upper intake manifold cover does not get caught against the engine harness.

20. Remove the intake manifold and intake manifold cover (1) as an assembly.
21. Cover the cylinder head passages to prevent dirt or debris from entering the passages.

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 12

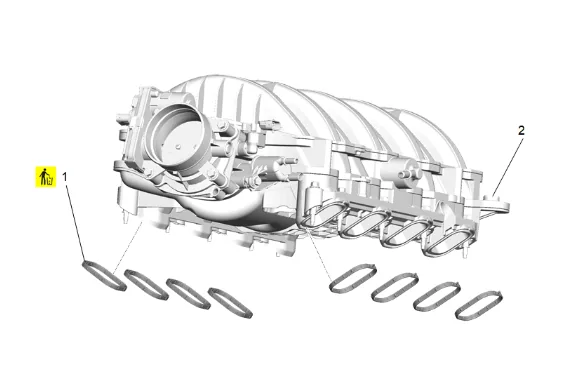

22. Intake Manifold Gasket (1) » Remove and DISCARD [8x]

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 13

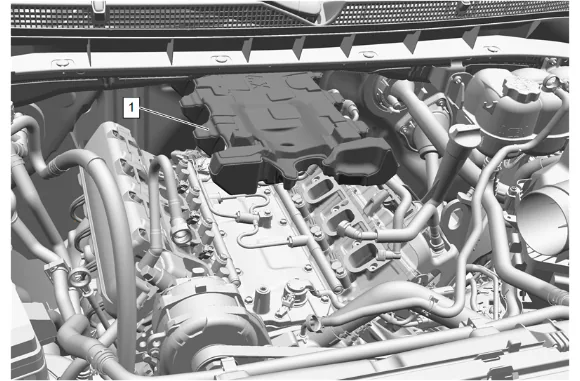

Danger: The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. 23. Fuel Pump Insulator (1) » Remove

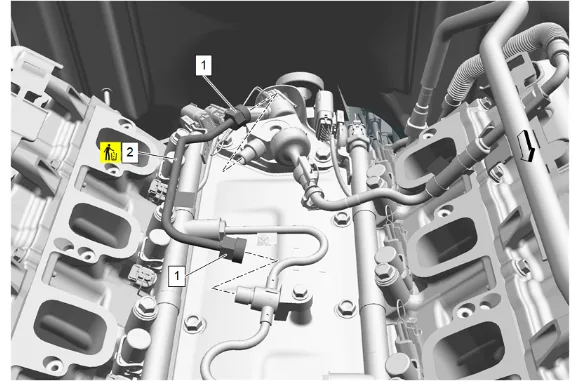

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 14

Caution

Fuel feed intermediate pipes will be delivered with shipping caps that are meant to protect the mating joint threads. Do NOT remove shipping caps until the pipe is to be installed and joints are to be secured. Failure to do so could result in damage to the mating threads.

Note

Do NOT reuse the fuel feed intermediate pipe. If the fuel feed intermediate pipe fittings are loosened or the pipes are removed, the pipes MUST be replaced.

24. Fuel Feed Intermediate Pipe Nut (1) @ Fuel Feed Intermediate Pipe (2) » Loosen until disengaged [2x]
25. Fuel Feed Intermediate Pipe (2) » Remove and DISCARD Cleaning and Inspection Procedure - Conditional

Note

The following cleaning and inspection and/or overhaul steps are ONLY to be performed as determined necessary based on the condition of the part being removed with the intention of reinstallation. The labor time to perform any of these steps is not included in the base labor time and if required would need to be documented and submitted as Other Labor Hours for warranty claim reimbursement. A description of the repairs performed must be documented in the technician correction comments.

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 15

1. Clean all sealing surfaces.
2. Dry the intake manifold with compressed air.
3. Inspect the intake manifold cylinder head deck for warpage.

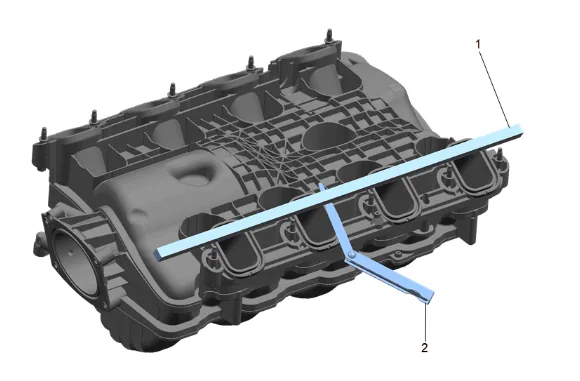

4. Place a straight edge (1) across the intake manifold cylinder head deck surface.
5. Inspect the intake manifold for the following conditions: 5.1. Inspect for loose threaded inserts or studs. 5.2. Inspect for damaged or broken vacuum fitting. 5.3. Inspect the intake manifold assembly for cracks or other damage. 5.4. Inspect for damaged intake manifold gasket sealing surfaces.
6. Position the straight edge (1) across a minimum of two runner port openings and check for warpage using a feeler gage. Engine Mechanical Specifications
7. Inspect the ventilation system passages for restrictions. Installation Procedure

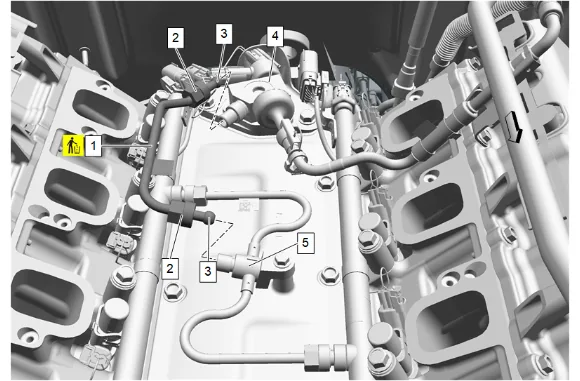

Fuel Feed Intermediate Pipe Replacement - Position 1 (L87) — figure 16

Note

Do NOT reuse the fuel feed intermediate pipe. If the fuel feed intermediate pipe fittings are loosened or the pipes are removed, the pipes MUST be replaced.

1. Fuel Feed Intermediate Pipe (1) » Install NEW 1.1. Slide fuel feed pipe fitting nuts (2) back along fuel feed intermediate pipe (1) to reveal the formed ends (3) of the fuel feed pipe. 1.2. Carefully install the formed ends (3) of the fuel feed pipe into the sockets of the fuel pump (4) and the fuel feed intermediate pipe (5), taking care not to hit the formed end of the pipes on the threaded sockets on the rails. 1.3. Hold the pipe firmly in place and hand tighten the fuel feed pipe fitting nuts (2) onto the threads on the fuel rails.

Caution

Refer to Fastener Caution.

2. Fuel Feed Intermediate Pipe Nut (2) @ Fuel Feed Intermediate Pipe (1) » Tighten [2x] — Fastener Specifications

Danger: The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.  3. Fuel Pump Insulator (1) » Install

4. Intake Manifold Gasket (1) » Install NEW [8x]

5. Remove the covers from the cylinder head passages.

6. Clean all sealing surfaces.

7. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 7.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 7.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 7.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 7.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Note

The aid of an assistant may be helpful in holding the engine harness up out of the way so the upper intake manifold cover does not get caught against the engine harness.

8. Position the intake manifold and Intake manifold cover (1) to install harness retainers.

9. Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) » Install [4x]

10. Move the intake manifold and intake manifold cover (2) into place.

Note

Some components not shown for graphic clarity.

11. Intake Manifold Bolt (1) » Hand tighten [10x]

12. Intake Manifold Bolt (1) » Tighten in sequence [10x] — Fastener Specifications

13. Positive Crankcase Ventilation Tube Connector (2) @ Intake Manifold » Install — Plastic Collar Quick Connect Fitting Service

14. Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) » Install [3x]

15. Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) » Install [4x]

16. Engine Wiring Harness Connector (4) @ Evaporative Emission Canister Purge Solenoid Valve » Connect

17. Engine Wiring Harness Connector (3) @ Manifold Absolute Pressure Sensor » Connect

18. Engine Wiring Harness Retainer (2) @ Intake Manifold Cover » Install [2x]

19. Engine Wiring Harness Connector (1) @ Throttle Body » Connect

20. Evaporative Emission Canister Purge Tube (2) @ Evaporative Emission Canister Purge Solenoid Valve » Install

21. Evaporative Emission Canister Purge Tube Connector (1) @ Evaporative Emission Canister Purge Solenoid Valve » Engage — Plastic Collar Quick Connect Fitting Service

22. Plenum Front Panel Outer Reinforcement (1) » Install — Plenum Front Panel Outer Reinforcement Removal and Installation

23. Air Cleaner Outlet Duct (3) » Install

24. Air Cleaner Outlet Duct Clamp (2) » Tighten [2x] — Fastener Specifications

25. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

26. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

27. Install engine wiring harness to air cleaner outlet duct bracket.

28. Pressurize the fuel system and inspect for leaks.

29. Inspect for fuel leaks.
