Air Conditioning Refrigerant Heat Exchanger Replacement (L84_L87 without C69)

Air Conditioning Refrigerant Heat Exchanger Replacement (L84/L87 without C69) Single Use Fasteners and Components Air Conditioning Compressor and Condenser Hose Seal - Large [2x] Air Conditioning Compressor and Condenser Hose Seal - Small [2x] Removal Procedure

1. Recover the refrigerant. Refrigerant Recovery and Recharging

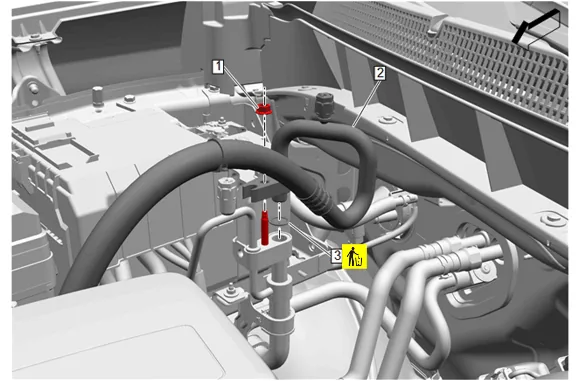

Air Conditioning Refrigerant Heat Exchanger Replacement (L84_L87 without C69) — figure 1

2. Air Conditioning Compressor and Condenser Hose Nut (1) @ Air Conditioning Refrigerant Heat Exchanger » Remove
3. Air Conditioning Compressor and Condenser Hose (2) @ Air Conditioning Refrigerant Heat Exchanger » Remove
4. Air Conditioning Compressor and Condenser Hose Seal - Large (3) » Remove and DISCARD

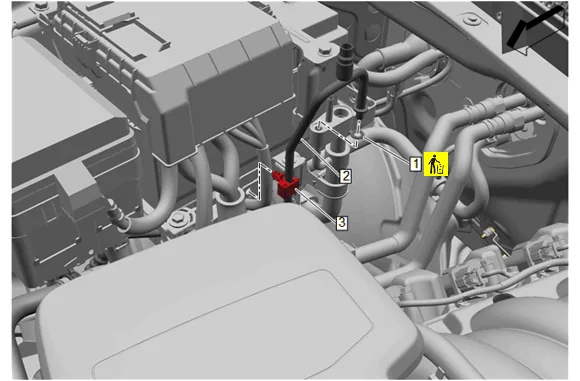

Air Conditioning Refrigerant Heat Exchanger Replacement (L84_L87 without C69) — figure 2

5. Air Conditioning Condenser and Evaporator Hose Clip (3) » Remove
6. Air Conditioning Condenser and Evaporator Hose (2) » Remove
7. Air Conditioning Compressor and Condenser Hose Seal - Small (1) » Remove and DISCARD

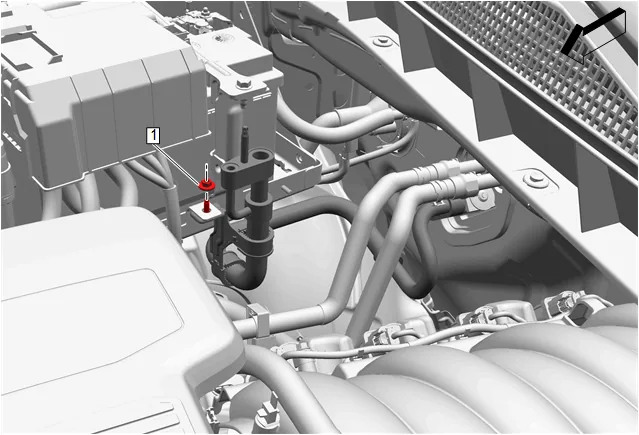

Air Conditioning Refrigerant Heat Exchanger Replacement (L84_L87 without C69) — figure 3

8. Air Conditioning Refrigerant Heat Exchanger Nut (1) @ Battery Tray » Remove

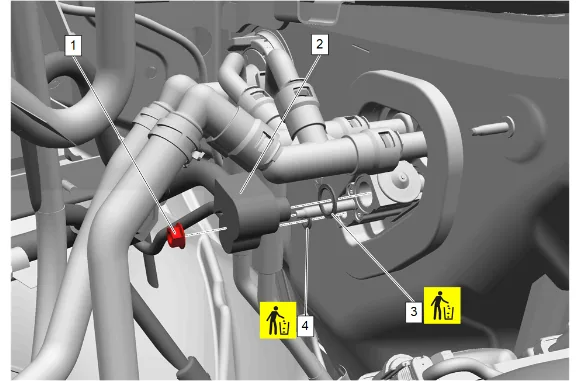

Air Conditioning Refrigerant Heat Exchanger Replacement (L84_L87 without C69) — figure 4

9. Air Conditioning Evaporator Thermal Expansion Valve Hose Nut (1) » Remove
10. Air Conditioning Refrigerant Heat Exchanger (2) » Remove
11. Air Conditioning Compressor and Condenser Hose Seal - Large (3) » Remove and DISCARD
12. Air Conditioning Compressor and Condenser Hose Seal - Small (4) » Remove and DISCARD Installation Procedure

Caution

New Air Conditioning sealing washers should never be exposed to any type of oil or lubricant, the rubber material may absorb the oil causing failures during installation or the life of the vehicle.

1. Air Conditioning Compressor and Condenser Hose Seal - Small (4) » Install NEW
2. Air Conditioning Compressor and Condenser Hose Seal - Large (3) » Install NEW
3. Air Conditioning Refrigerant Heat Exchanger (2) » Install

Caution

Refer to Fastener Caution.

4. Air Conditioning Evaporator Thermal Expansion Valve Hose Nut (1) » Install and tighten — Fastener Specifications

5. Air Conditioning Refrigerant Heat Exchanger Nut (1) @ Battery Tray » Install and tighten — Fastener Specifications

6. Air Conditioning Compressor and Condenser Hose Seal - Small (1) » Install NEW

7. Air Conditioning Condenser and Evaporator Hose (2) » Install

8. Air Conditioning Condenser and Evaporator Hose Clip (3) » Install

9. Air Conditioning Compressor and Condenser Hose Seal - Large (3) » Install NEW

10. Air Conditioning Compressor and Condenser Hose (2) @ Air Conditioning Refrigerant Heat Exchanger » Install

11. Air Conditioning Compressor and Condenser Hose Nut (1) @ Air Conditioning Refrigerant Heat Exchanger » Install and tighten — Fastener Specifications

12. Recharge the refrigerant. Refrigerant Recovery and Recharging
