Floor Front Air Outlet Duct Replacement - Left Side

Removal Procedure

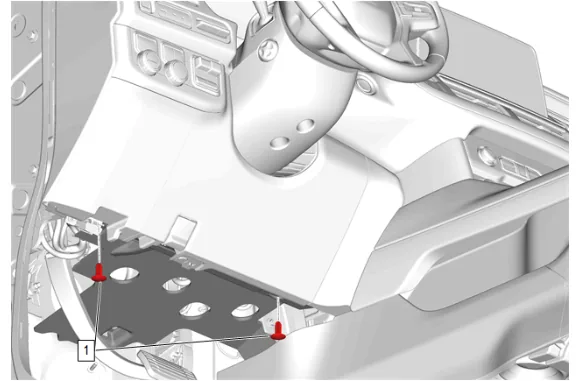

Floor Front Air Outlet Duct Replacement - Left Side — figure 1

1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

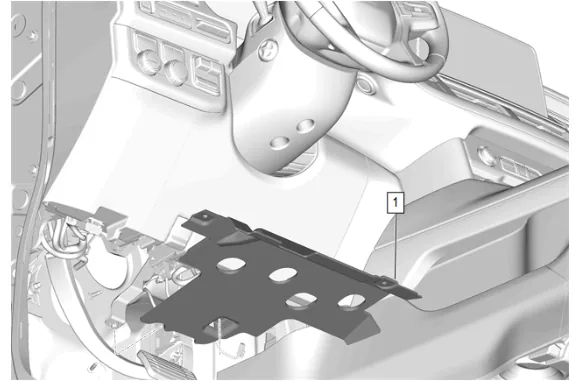

Floor Front Air Outlet Duct Replacement - Left Side — figure 2

2. Instrument Panel Lower Trim Panel Insulator - Left Side (1) » Remove

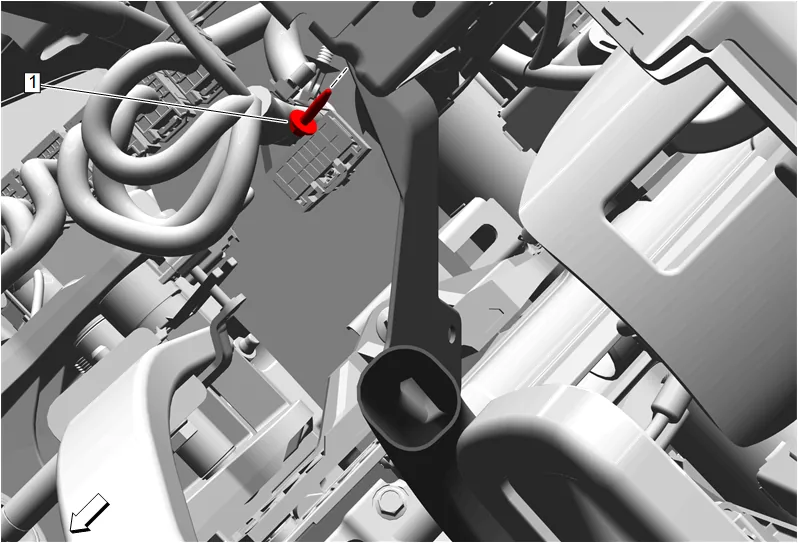

Floor Front Air Outlet Duct Replacement - Left Side — figure 3

3. Floor Front Air Outlet Duct Bolt (1) » Remove

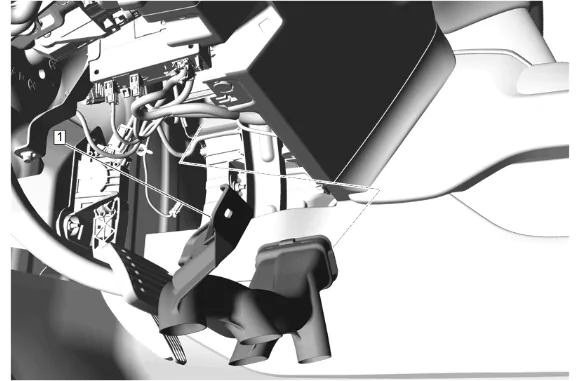

Floor Front Air Outlet Duct Replacement - Left Side — figure 4

4. Floor Front Air Outlet Duct - Left Side (1) » Remove Installation Procedure

Warning

Upon installing the floor duct to the side of the HVAC case, it is necessary to verify duct opening is completely installed, surrounding the HVAC case outlet port. Failure to do so could result in the duct falling downward, with the potential to interfere with driver’s legs and gas/brake pedal operation.

1. Floor Front Air Outlet Duct - Left Side (1) » Install

Caution

Refer to Fastener Caution.

2. Floor Front Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

3. Instrument Panel Lower Trim Panel Insulator - Left Side (1) » Install

4. Instrument Panel Lower Insulator Retainer (1) » Install [2x]
