Front Bumper Upper Fascia Replacement (without LM2)

Removal Procedure

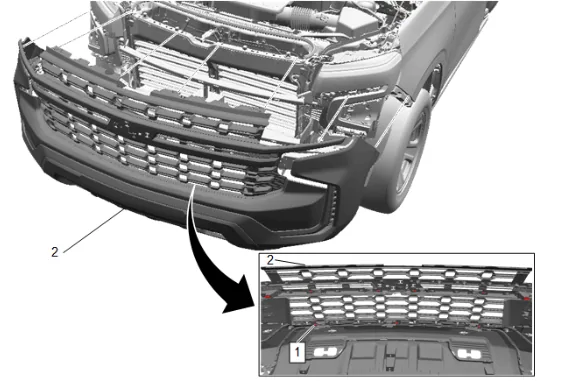

Front Bumper Upper Fascia Replacement (without LM2) — figure 1

1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation
2. Disconnect all electrical connectors.
3. Remove the wiring harness.

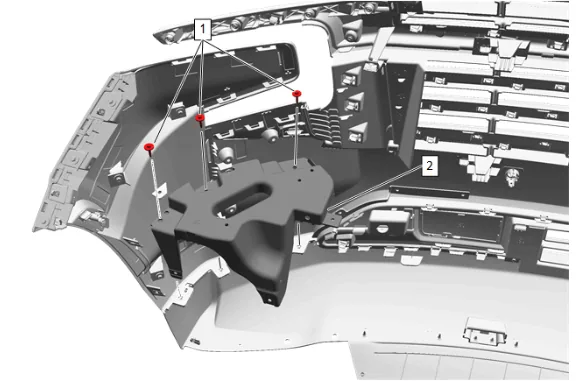

Front Bumper Upper Fascia Replacement (without LM2) — figure 2

4. Front Bumper Fascia Reinforcement Bolt (1) » Remove [6x]
5. Remove the left and right side front bumper fascia reinforcements (2).

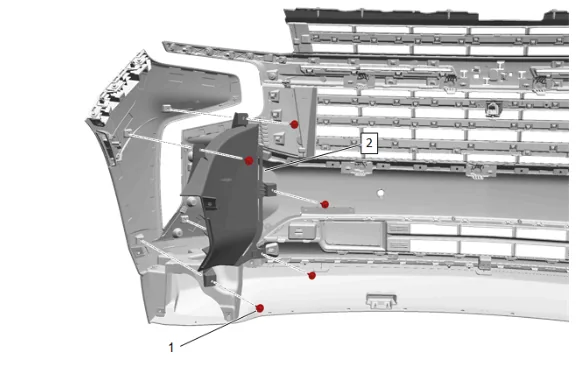

Front Bumper Upper Fascia Replacement (without LM2) — figure 3

6. Front Bumper Fascia Bolt (1) » Remove [10x]
7. Front Bumper Fascia Outer Air Duct (2) » Remove

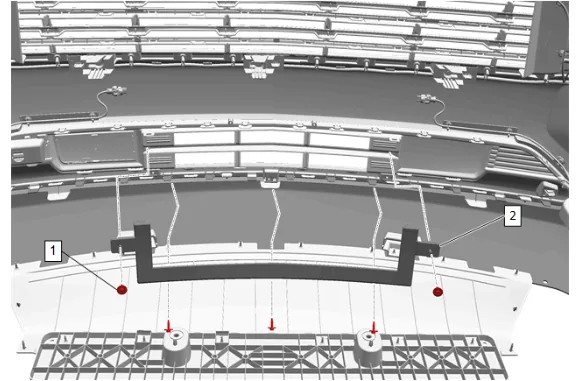

Front Bumper Upper Fascia Replacement (without LM2) — figure 4

8. Front Bumper Fascia Bolt (1) » Remove [5x]
9. Front Bumper Fascia Seal (2) » Remove

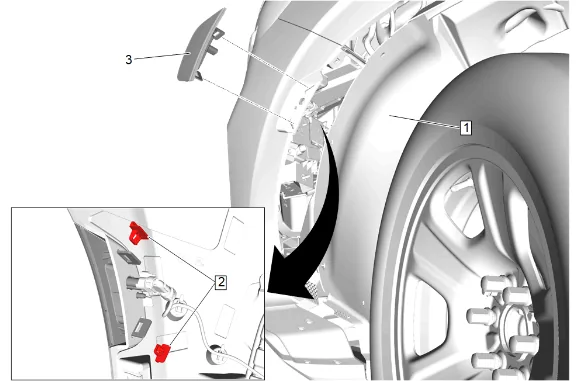

Front Bumper Upper Fascia Replacement (without LM2) — figure 5

10. Remove the 4 left and right side front side marker lamp retainers (2).
11. Remove the left and right side front side marker lamps (3).

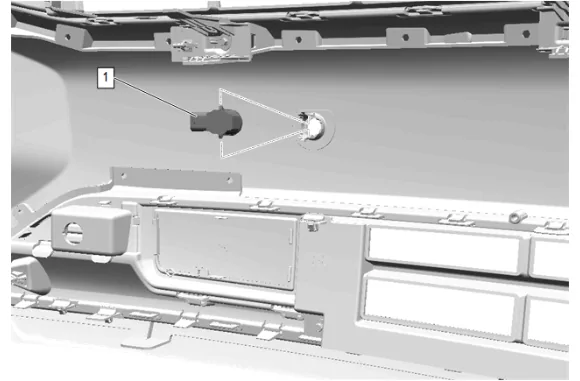

Front Bumper Upper Fascia Replacement (without LM2) — figure 6

Note

The object sensor is a one piece design. Do NOT twist the sensor cap to try and remove the painted cap. Replacement sensor requires painting to match fascia/bumper body color.

12. Lift the locking tabs on the housing and remove the 4 parking assist alarm sensors (1).

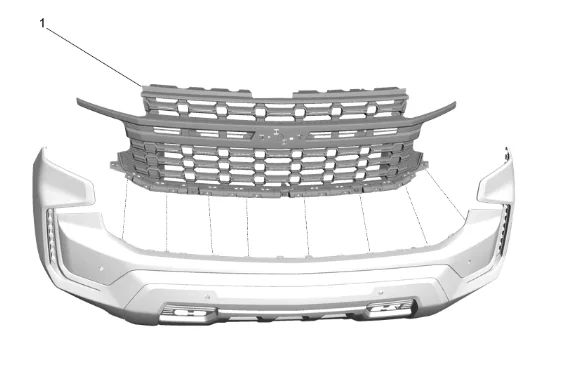

Front Bumper Upper Fascia Replacement (without LM2) — figure 7

13. Release the clips with a suitable tool.
14. Release the retaining tabs.
15. Front Grille (1) » Remove

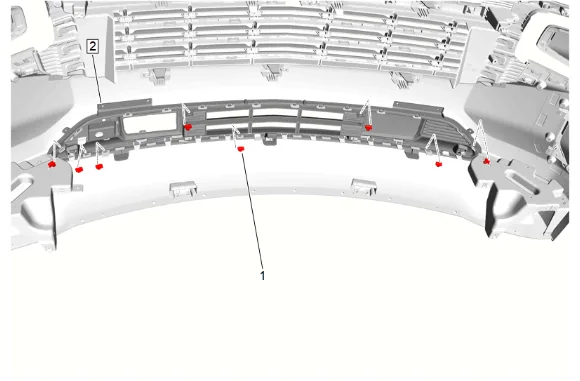

Front Bumper Upper Fascia Replacement (without LM2) — figure 8

16. Front Grille Clip (1) » Remove [8x]
17. Release the retainers and remove the front lower grille (2).

Front Bumper Upper Fascia Replacement (without LM2) — figure 9

18. Release the tabs on the lower fascia and carefully remove the front bumper upper fascia (1)  from the front bumper lower fascia. Installation Procedure

19. Install the front bumper upper fascia (1) to the front bumper lower fascia.

20. Install the front lower grille and secure the retainers.

21. Front Grille Clip (1) » Install [8x]

22. Front Grille (1) » Install

Note

Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.

5. Insert the 4 parking assist alarm sensors (1) into the housings.

6. Install the left and right side front side marker lamps (3).

7. Install the 4 left and right side front side marker lamp retainers (2).

8. Front Bumper Fascia Seal (2) » Install

Caution

Refer to Fastener Caution.

9. Front Bumper Fascia Bolt (1) » Install and tighten [5x] — Fastener Specifications

10. Install the left and right side front bumper fascia outer air duct (2).

11. Install and tighten the 10 left and right side front bumper fascia bolts (1). Fastener Specifications

12. Install the left and right side front bumper fascia reinforcements (2).

13. Install and tighten the 6 left and right side front bumper fascia reinforcement bolts (1). Fastener Specifications

14. Install the wiring harness.

15. Connect all electrical connectors.

16. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
