Folding 3rd Row Seat Module Replacement

Removal Procedure

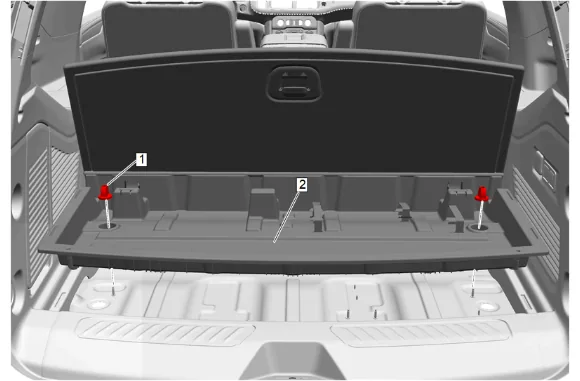

Folding 3rd Row Seat Module Replacement — figure 1
Folding 3rd Row Seat Module Replacement — figure 1
  1. Rear Compartment Floor Stowage Compartment Divider Retainer (1) » Remove [2x]
  2. Rear Compartment Floor Stowage Trim Compartment (2) » Remove

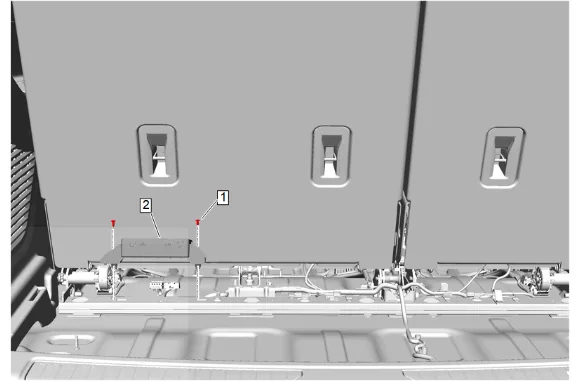

Folding 3rd Row Seat Module Replacement — figure 2
Folding 3rd Row Seat Module Replacement — figure 2

  1. Folding 3rd Row Seat Module Bolt (1) » Remove [2x]

  2. Disconnect the electrical connectors.

  3. Folding 3rd Row Seat Module (2) » Remove Installation Procedure

  4. Folding 3rd Row Seat Module (2) » Install

  5. Connect the electrical connectors.

  1. Folding 3rd Row Seat Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Rear Compartment Floor Stowage Trim Compartment (2) » Install

  1. Rear Compartment Floor Stowage Compartment Divider Retainer (1) » Install and tighten [2x] — Fastener Specifications
