Communication Interface Module Microphone Replacement

Communication Interface Module Microphone Replacement Removal Procedure

Warning

Refer to SIR Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

Communication Interface Module Microphone Replacement — figure 1

2. Unclip the sunshade and rotate the sunshade to the side.
3. Open the sunshade support bolt access cover with an appropriate tool.
4. Sunshade Support Bolt (1) » Remove

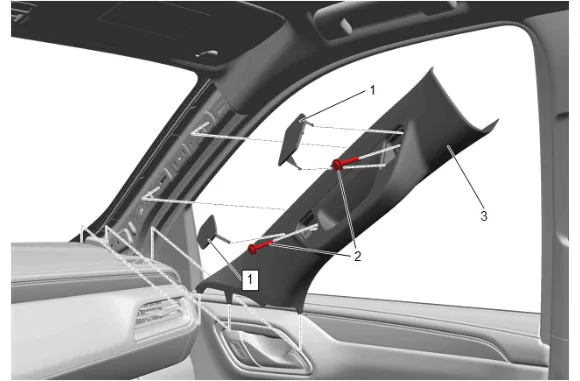

Communication Interface Module Microphone Replacement — figure 2

5. Reposition the weatherstrip as necessary.
6. Windshield Pillar Assist Handle Cover (1) » Remove [2x]
7. Windshield Pillar Assist Handle Bolt (2) » Remove [2x]
8. Windshield Garnish Molding - Right Side (3) » Remove

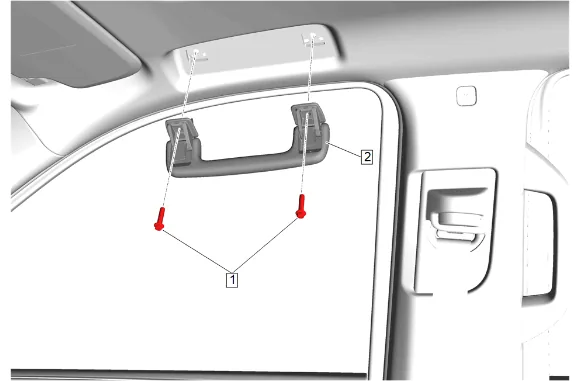

Communication Interface Module Microphone Replacement — figure 3

9. Fold the assist handle downward and hold. (2)
10. Use a small flat-bladed tool to open the assist handle covers to access the bolts.
11. Roof Rail Assist Handle Bolt (1) » Remove [2x]
12. Roof Rail Assist Handle (2) » Remove

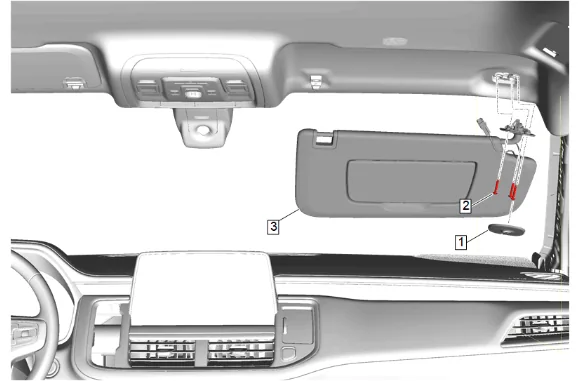

Communication Interface Module Microphone Replacement — figure 4

13. Sunshade Retainer Bolt Cover (1) » Remove
14. Sunshade Bolt (2) » Remove [3x]
15. Squeeze the tabs at the base of the sunshade (3) to detach it from the roof panel and allow the headliner with the sunshade attached to be lowered.

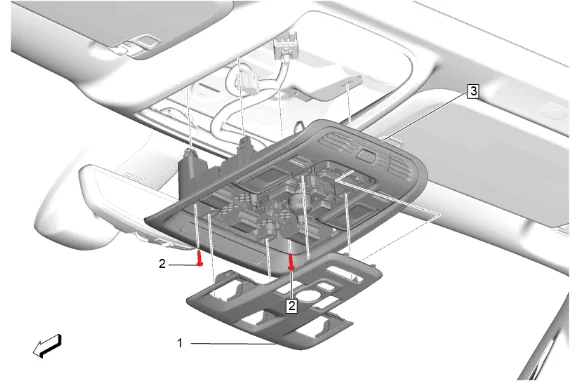

Communication Interface Module Microphone Replacement — figure 5

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Roof Console Opening Trim Plate (1) » Remove
18. Roof Console Bolt (2) » Remove [2x]
19. Roof Console (3) » Remove
20. Disconnect the electrical connectors.

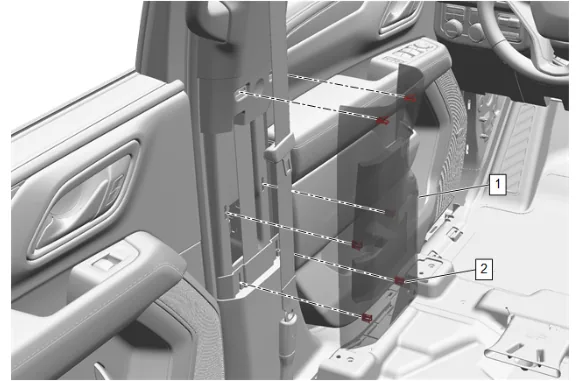

Communication Interface Module Microphone Replacement — figure 6

Note

Left side shown, right side similar.

21. Move the front seat fully forward.
22. Use a flat bladed plastic tool between the center pillar center trim panel (1) and the center pillar upper trim panel to disengage the upper retaining clips (2).
23. Pull from both sides of the center pillar center trim panel (1) to release the middle and lower retaining clips (2).
24. Center Pillar Center Trim Panel - Right Side (1) » Remove

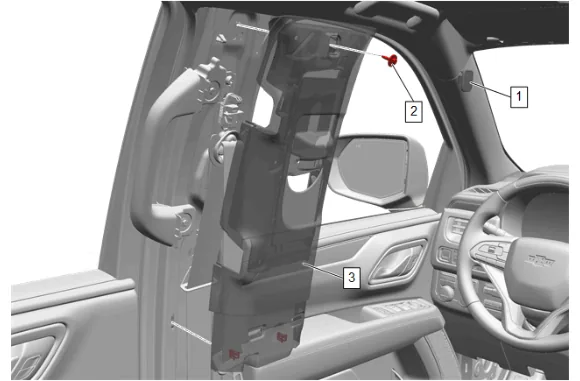

Communication Interface Module Microphone Replacement — figure 7

Note

Left side shown, right side similar.

25. Center Pillar Upper Trim Panel Bolt Cap - Right Side (1) » Remove
26. Center Pillar Upper Garnish Molding Bolt - Right Side  (2) » Remove
27. Pull the trim panel (3) toward the inside of the vehicle to disengage the retaining clips.
28. Center Pillar Upper Trim Panel - Right Side (3) » Reposition

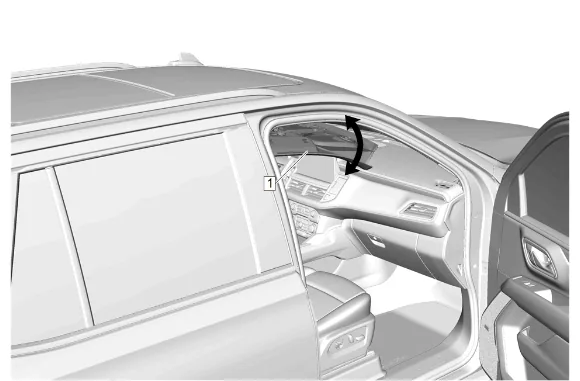

Communication Interface Module Microphone Replacement — figure 8

29. Lower the right front section of the headlining trim panel (1).

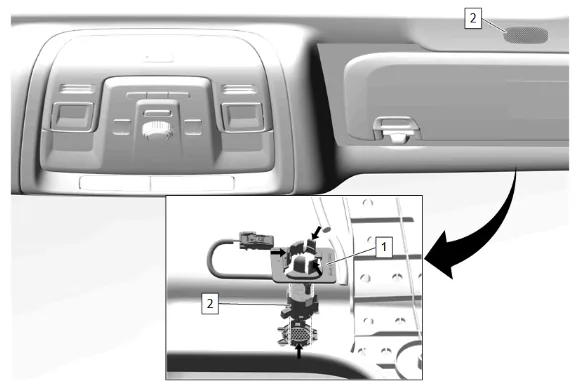

Communication Interface Module Microphone Replacement — figure 9

30. Remove excess glue and material from the communication interface module microphone harness and re-tape areas where the tape was removed or damaged.

31. Disconnect the electrical connector.

32. Release the retaining tabs and remove the communication interface module microphone bezel plate (1).

33. Release the retaining tabs and remove the communication interface module microphone (2). Installation Procedure

34. Communication Interface Module Microphone (2) » Install

35. Communication Interface Module Microphone Bezel Plate (1) » Install

36. Secure the retaining tabs.

37. Connect the electrical connector.

38. Use hot melt adhesive to install the communication interface module microphone harness. Adhesives, Fluids, Lubricants, and Sealers

39. Apply insulator tape over glued locations to prevent squeaks and rattles as needed.

40. Headlining Trim Panel (1) » Install

Note

Left side shown, right side similar.

8. Center Pillar Upper Trim Panel - Right Side (3) » Install

Caution

Refer to Fastener Caution.

9. Center Pillar Upper Garnish Molding Bolt - Right Side  (2) » Install and tighten — Fastener Specifications
10. Center Pillar Upper Trim Panel Bolt Cap - Right Side (1) » Install

Note

Left side shown, right side similar.

11. Align 6 retaining clips (2) with the upper and lower trim panels.

12. Center Pillar Center Trim Panel - Right Side (1) » Install

13. Connect the electrical connectors.

14. Roof Console (3) » Install

15. Roof Console Bolt (2) » Install and tighten [2x] — Fastener Specifications

16. Roof Console Opening Trim Plate (1) » Install

17. Sunshade Bolt (2) » Install and tighten [3x] — Fastener Specifications

18. Sunshade Retainer Bolt Cover (1) » Install

19. Roof Rail Assist Handle (2) » Install

20. Roof Rail Assist Handle Bolt (1) » Install and tighten [2x] — Fastener Specifications

21. Windshield Garnish Molding - Right Side (3) » Install

22. Windshield Pillar Assist Handle Bolt (2) » Install and tighten [2x] — Fastener Specifications

23. Windshield Pillar Assist Handle Cover (1) » Install [2x]

24. Reposition the weatherstrip as necessary.

25. Sunshade Support Bolt (1) » Install and tighten — Fastener Specifications

26. Close the sunshade support bolt access cover.

27. Enable the SIR System. SIR Disabling and Enabling
