Fastener Specifications (1)

Fastener Specifications Table 1: Air Line Nut (F47) Table 2: Chassis Wiring Harness Front Bracket Table 3: Front Air Spring Valve and Front Shock Absorber Shock Rod Mount Nut (F47) Table 4: Front Lower Control Arm Brace Replacement Table 5: Front Lower Control Arm Replacement Table 6: Front Shock Absorber Bolt Table 7: Front Shock Absorber Nut Table 8: Front Stabilizer Shaft Link Replacement Table 9: Front Upper Control Arm Ball Stud Nut Table 10: Front Upper Control Arm Replacement Table 11: Front Wheel Hub, Bearing, and Seal Replacement Table 12: Front Wheel Hub Replacement (without Z56) Table 13: Front Wheel Hub Replacement (with Z56) Table 14: Front Wheel Speed Sensor Bracket Bolt (F47, ZW7) Table 15: Front Wheel Speed Sensor Bracket Bolt (F47, ZW7) Table 16: Shock Absorber, Shock Absorber Component, or Spring Replacement (Z56, ZW7) Table 17: Stabilizer Shaft Replacement

Fastener Specifications (1) — figure 1

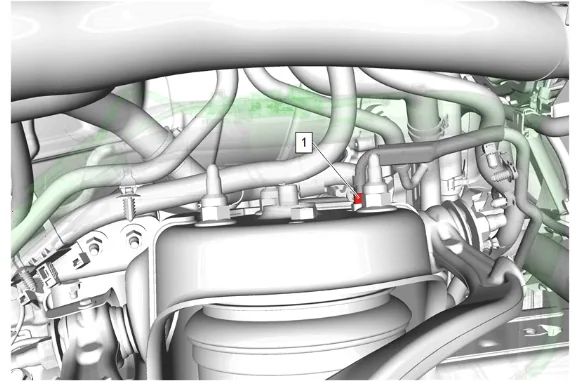

Air Line Nut (F47)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Air Line Nut	—	—	5 Y (44 lb in)	Shock Absorber, Shock Absorber Component, or Spring Replacement - Left Side
					Shock Absorber, Shock Absorber Component, or Spring Replacement - Right Side

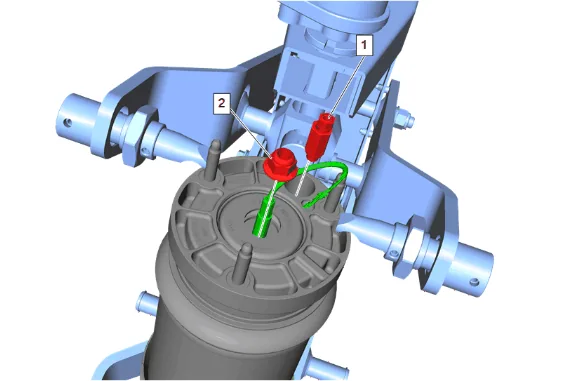

Fastener Specifications (1) — figure 2

Chassis Wiring Harness Front Bracket

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Chassis Front Wiring Harness Bracket Bolt [2x]	—	—	18 Y (13 lb ft)	Front Shock Absorber and Spring Removal and Installation - Right Side

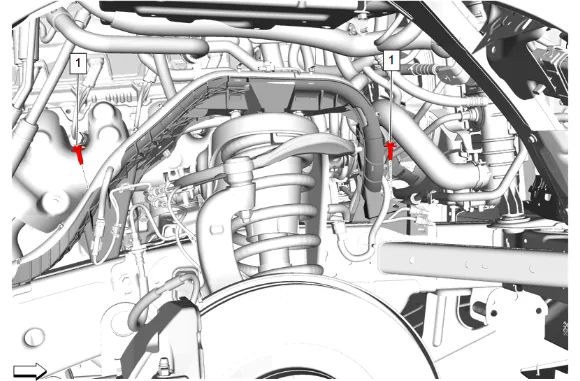

Fastener Specifications (1) — figure 3

Front Air Spring Valve and Front Shock Absorber Shock Rod Mount Nut (F47)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Air Spring Valve	—	—	8 Y (71 lb in)	Shock Absorber, Shock Absorber Component, or Spring Replacement - Left Side
					Shock Absorber, Shock Absorber Component, or Spring Replacement - Right Side
2	Front Shock Absorber Shock Rod Mount Nut	—	—	70 Y (52 lb ft)	Shock Absorber, Shock Absorber Component, or Spring Replacement - Left Side
					Shock Absorber, Shock Absorber Component, or Spring Replacement - Right Side

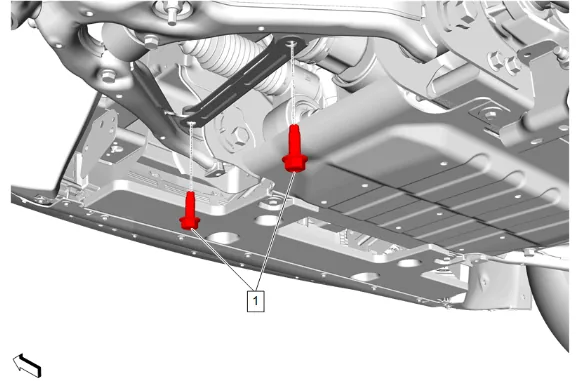

Fastener Specifications (1) — figure 4

Front Lower Control Arm Brace Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Lower Control Arm Bracket Bolt [2x]	—	—	160 Y (118 lb ft)	Front Lower Control Arm Brace Replacement

Fastener Specifications (1) — figure 5

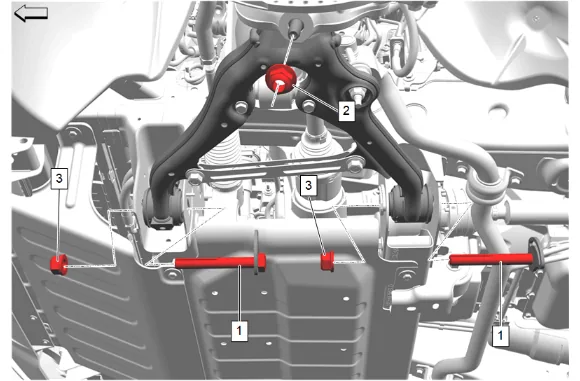

Front Lower Control Arm Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Lower Control Arm Adjust Bolt [2x]	—	—	—	Front Lower Control Arm Replacement
2	Front Lower Control Arm Ball Stud Nut	—	—	First Pass: 50 Y (37 lb ft) Final Pass: 125 - 135 degrees	Front Lower Control Arm Replacement
3	Front Lower Control Arm Nut [2x]	—	—	Torque to be applied during alignment.	Front Caster and Camber Adjustment

Fastener Specifications (1) — figure 6

Front Shock Absorber Bolt

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Shock Absorber Bolt [2x]	—	—	50 Y (37 lb ft)	Front Shock Absorber and Spring Removal and Installation - Left Side
					Front Shock Absorber and Spring Removal and Installation - Right Side

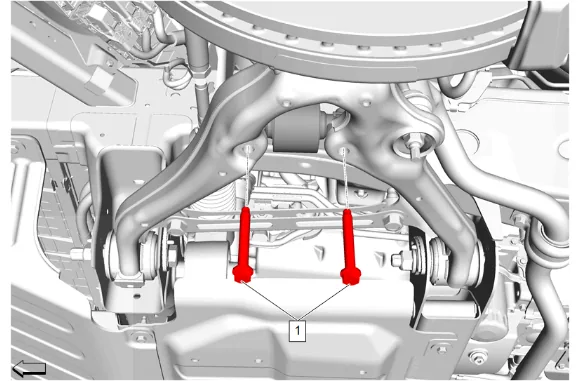

Fastener Specifications (1) — figure 7

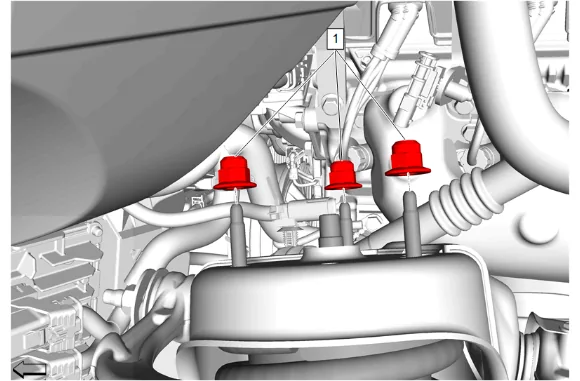

Front Shock Absorber Nut

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Shock Absorber Nut [3x]	—	—	58 Y (43 lb ft)	Front Shock Absorber and Spring Removal and Installation - Left Side
					Front Shock Absorber and Spring Removal and Installation - Right Side

Fastener Specifications (1) — figure 8

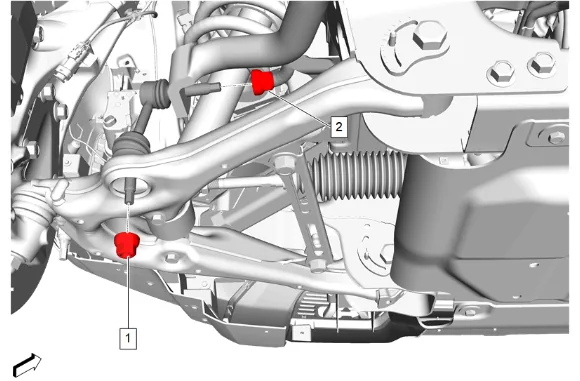

Front Stabilizer Shaft Link Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Stabilizer Shaft Link Nut - Lower	—	—	100 Y (74 lb ft)	Front Stabilizer Shaft Link Replacement
2	Front Stabilizer Shaft Link Nut - Upper	—	—	160 Y (118 lb ft)	Front Stabilizer Shaft Link Replacement

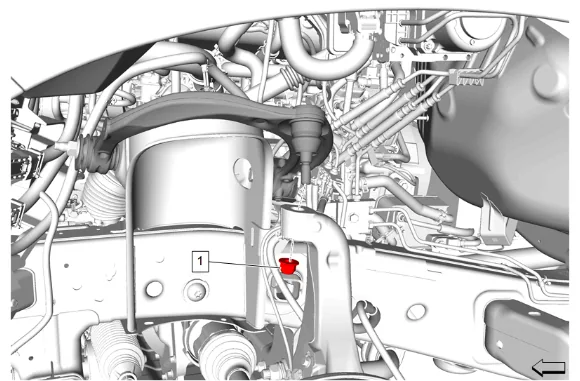

Fastener Specifications (1) — figure 9

Front Upper Control Arm Ball Stud Nut

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Upper Control Arm Ball Stud Nut	—	—	First Pass: 35 Y (26 lb ft) Final Pass: 85 - 95 degrees	Front Upper Control Arm Replacement - Left Side
					Front Upper Control Arm Replacement - Right Side

Fastener Specifications (1) — figure 10

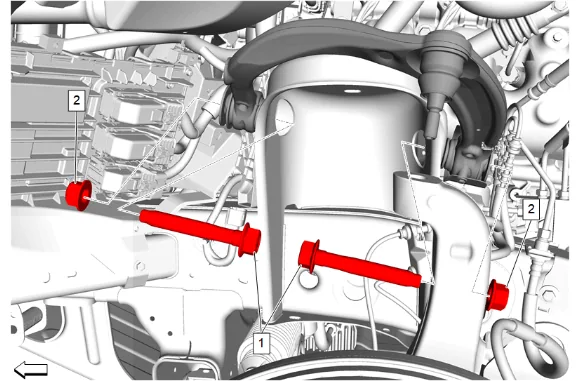

Front Upper Control Arm Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Upper Control Arm Bolt [2x]	—	—	—	Front Upper Control Arm Replacement - Left Side
					Front Upper Control Arm Replacement - Right Side
2	Front Upper Control Arm Nut [2x]	—	—	First Pass: 120 Y (89 lb ft) Final Pass: 45 - 60 degrees	Front Upper Control Arm Replacement - Left Side
					Front Upper Control Arm Replacement - Right Side

Fastener Specifications (1) — figure 11

Front Wheel Hub, Bearing, and Seal Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Wheel Hub Seal [2x]	Yes	—	—	Front Wheel Hub, Bearing, and Seal Replacement

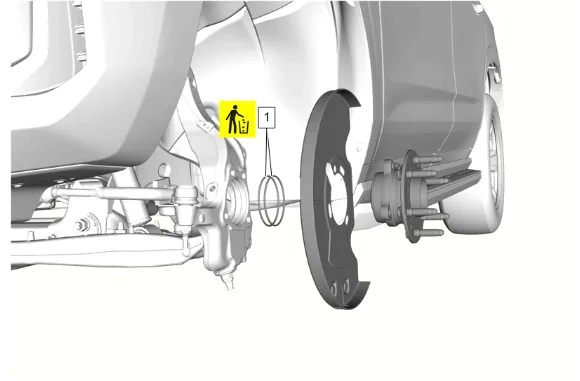

Fastener Specifications (1) — figure 12

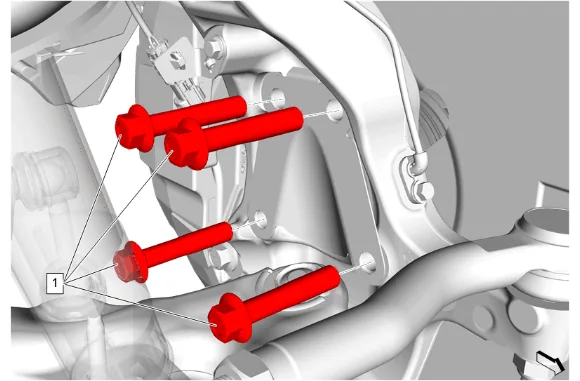

Front Wheel Hub Replacement (without Z56)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Wheel Hub Bolt [4x]	—	—	First Pass: 150 Y (111 lb ft) Final Pass: 30 - 45 degrees	Front Wheel Hub, Bearing, and Seal Replacement

Fastener Specifications (1) — figure 13

Front Wheel Hub Replacement (with Z56)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Wheel Hub Bolt [4x]	Yes	—	First Pass: 180 Y (133 lb ft) Final Pass: 30 - 45 degrees	Front Wheel Hub, Bearing, and Seal Replacement

Fastener Specifications (1) — figure 14

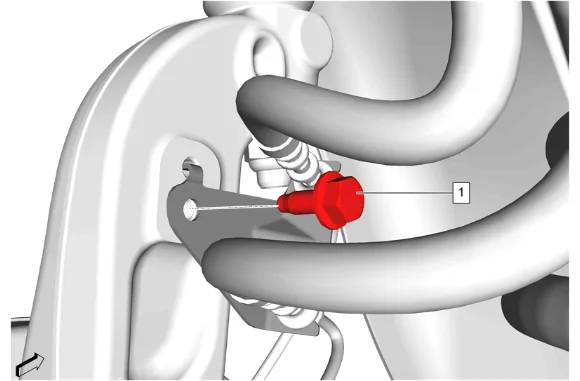

Front Wheel Speed Sensor Bracket Bolt (F47, ZW7)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Wheel Speed Sensor Bracket Bolt	—	—	9 Y (80 lb in)	Steering Knuckle Replacement

Fastener Specifications (1) — figure 15

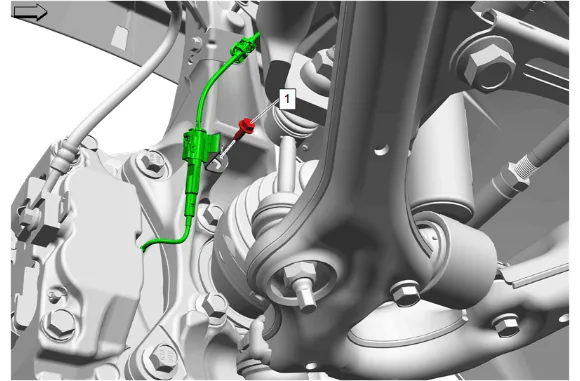

Front Wheel Speed Sensor Bracket Bolt (F47, ZW7)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Wheel Speed Sensor Bracket Bolt	—	—	9 Y (80 lb in)	Steering Knuckle Replacement

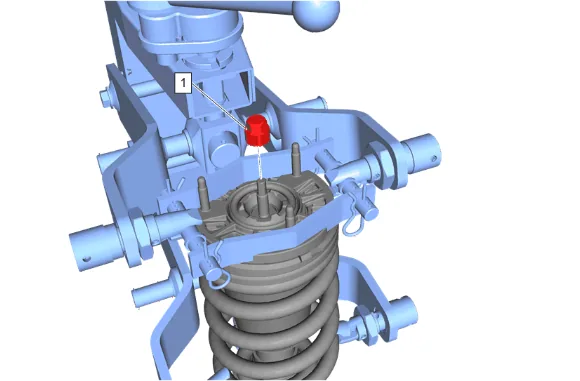

Fastener Specifications (1) — figure 16

Shock Absorber, Shock Absorber Component, or Spring Replacement (Z56, ZW7)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Suspension Strut Nut	—	—	70 Y (52 lb ft)	Shock Absorber, Shock Absorber Component, or Spring Replacement - Left Side
					Shock Absorber, Shock Absorber Component, or Spring Replacement - Right Side

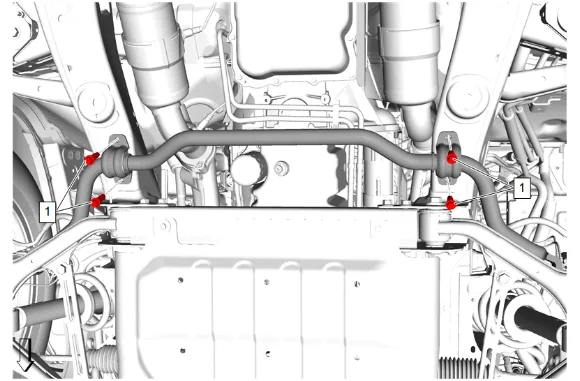

Fastener Specifications (1) — figure 17

Stabilizer Shaft Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Stabilizer Shaft Bolt [4x]	—	Yes	First Pass: 85 Y (63 lb ft) Final Pass: 45 - 60 degrees	Stabilizer Shaft Replacement
