Case and Associated Parts (2 of 3)

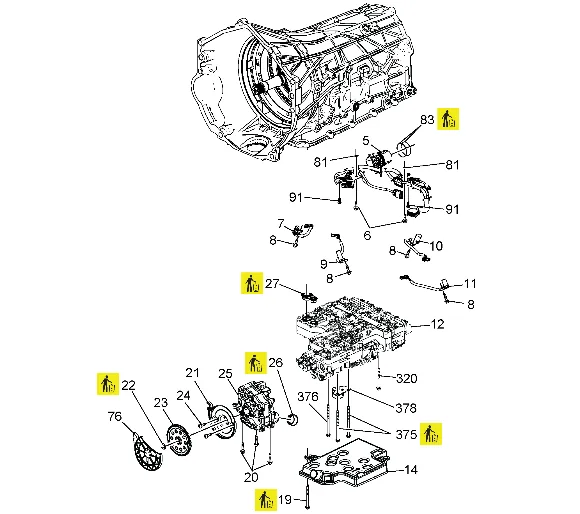

Case and Associated Parts (2 of 3) — figure 1

(5) Automatic Transmission Wiring Harness - Pass Through (6) Automatic Transmission Control Wiring Harness Clip Bracket Bolt (7) Automatic Transmission Turbine Speed Sensor (8) Automatic Transmission Speed Sensor Bolt (9) Automatic Transmission Intermediate Speed Sensor - A (10) Automatic Transmission Output Speed Sensor (11) Automatic Transmission Intermediate Speed Sensor - B (12) Control Valve Body (14) Automatic Transmission Fluid Filter (19) Automatic Transmission Fluid Filter Bolt (20) Automatic Transmission Fluid Pump Bolt (21) Automatic Transmission Fluid Pump Driven Gear Baffle - Base (22) Automatic Transmission Fluid Pump Drive Shaft Retaining Ring (23) Automatic Transmission Fluid Pump Driven Gear (24) Automatic Transmission Fluid Pump Cover Bolt (25) Automatic Transmission Fluid Pump (26) Automatic Transmission Fluid Pump Seal - Pump (27) Automatic Transmission Fluid Pump Seal - Valve Body (76) Automatic Transmission Fluid Pump Driven Gear Baffle - Shroud (81) Automatic Transmission Control Wiring Harness Retainer - Push Nut (83) Wiring Harness Connector Seal - O-Ring (91) Automatic Transmission Control Wiring Harness Retainer - Push Type (320) Control Valve Solenoid Body Bolt [4x] M6 x 68 (375) Control Valve Solenoid Body Bolt (376) Control Valve Body Bolt [2x] M6 x 100 (378) Park Inhibitor Solenoid
