Vehicle Stability Control System Switch Replacement

Removal Procedure

Vehicle Stability Control System Switch Replacement — figure 1

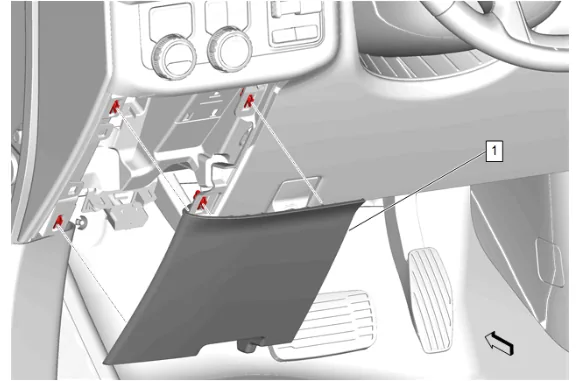

1. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Vehicle Stability Control System Switch Replacement — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.

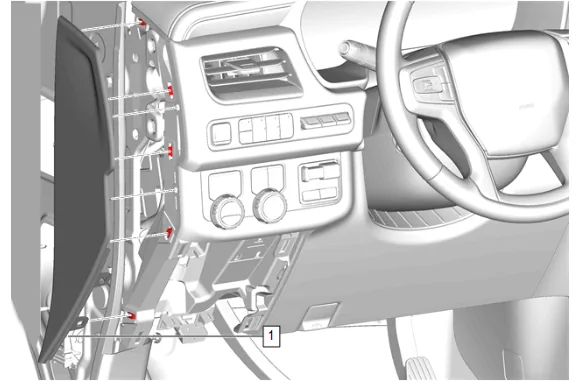

3. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Vehicle Stability Control System Switch Replacement — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.

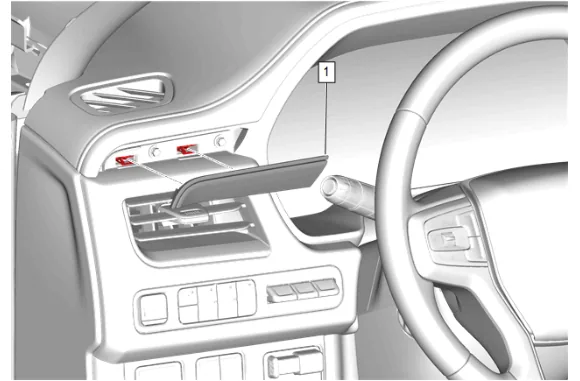

5. Instrument Panel Trim Plate Applique (1) » Remove

Vehicle Stability Control System Switch Replacement — figure 4

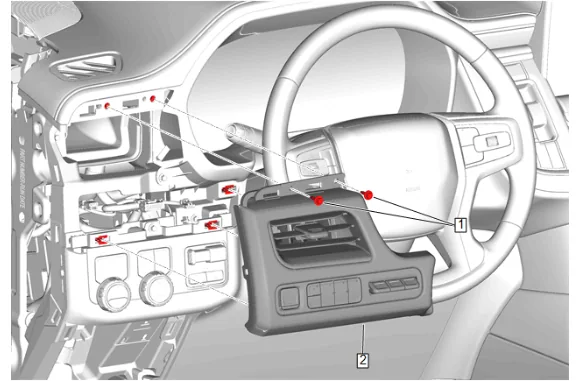

6. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
7. Disconnect the electrical connectors.
8. Instrument Panel Trim Pad (2) » Remove

Vehicle Stability Control System Switch Replacement — figure 5

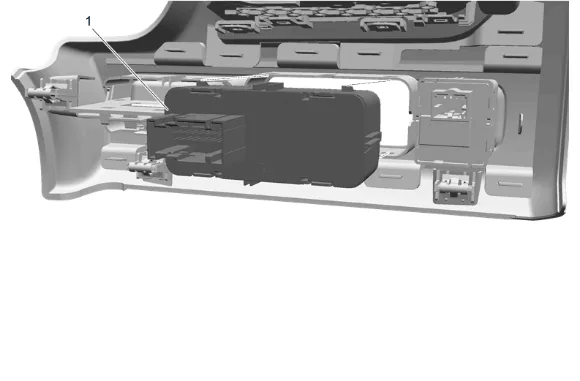

9. Vehicle Stability Control System Switch (1) @ Instrument Panel Trim Pad » Remove Installation Procedure

10. Vehicle Stability Control System Switch (1) @ Instrument Panel Trim Pad » Install

11. Connect the electrical connectors.

12. Instrument Panel Trim Pad (2) » Install

Caution

Refer to Fastener Caution.

4. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

5. Instrument Panel Trim Plate Applique (1) » Install

6. Instrument Panel Fuse Block Access Hole Cover (1) » Install

7. Instrument Panel Lower Trim Panel Outer Filler (1) » Install
