Auxiliary Fluid Pump Removal

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4974634 Single Use Fasteners and Components Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal Automatic Transmission Auxiliary Fluid Pump Seal

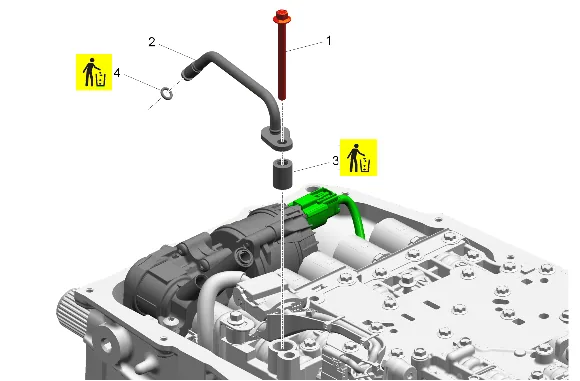

Auxiliary Fluid Pump Removal — figure 1

1. Control Valve Upper Body Bolt (1) » Remove
2. Automatic Transmission Auxiliary Fluid Pump Outlet Pipe (2) » Remove
3. Automatic Transmission Auxiliary Fluid Pump Seal (3) » Remove and DISCARD
4. Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal (4) » Remove and DISCARD

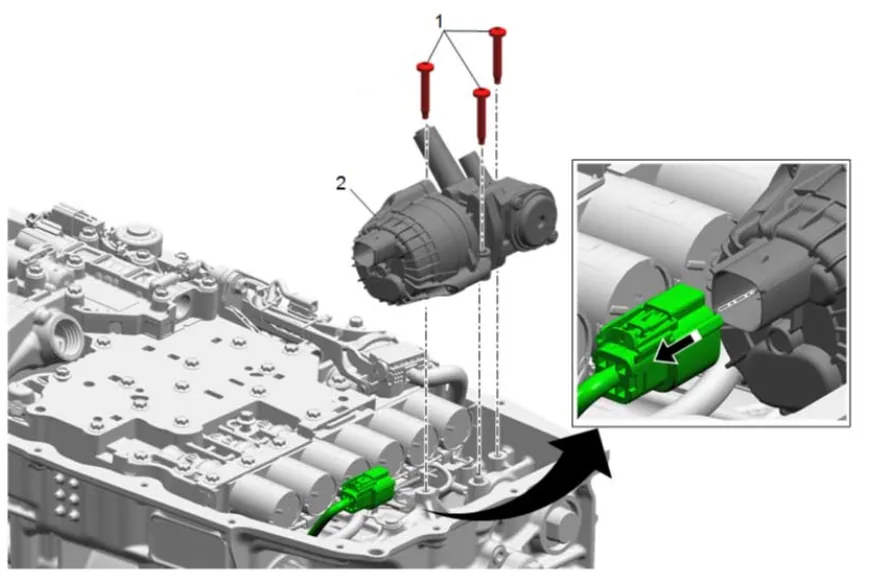

Auxiliary Fluid Pump Removal — figure 2

1. Automatic Transmission Auxiliary Fluid Pump Bolt (1) » Remove [3x]
2. Disconnect the electrical connector.
3. Automatic Transmission Auxiliary Fluid Pump (2) » Remove
