Tahoe / Yukon Service Manual

Spare Wheel Heat Shield Replacement - Side Frame

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

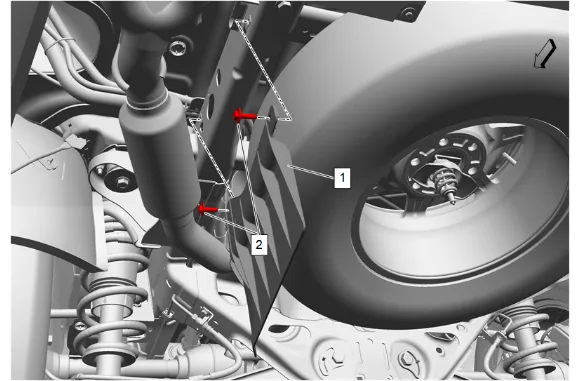

Spare Wheel Heat Shield Replacement - Side Frame — figure 1
Spare Wheel Heat Shield Replacement - Side Frame — figure 1

  1. Spare Wheel Heat Shield Bolt (2) » Remove [2x]

  2. Spare Wheel Heat Shield (1) » Remove Installation Procedure

  3. Spare Wheel Heat Shield (1) » Install

  1. Spare Wheel Heat Shield Bolt (2) » Install and tighten [2x] — Fastener Specifications
  2. Lower the vehicle.
