Instrument Panel Lower Trim Panel Insulator Replacement - Right Side

Instrument Panel Lower Trim Panel Insulator Replacement - Right Side Removal Procedure

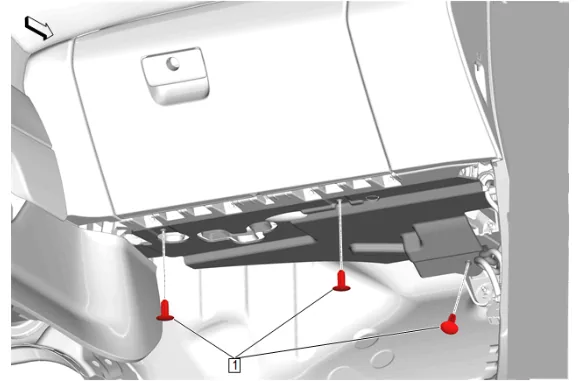

Instrument Panel Lower Trim Panel Insulator Replacement - Right Side — figure 1
Instrument Panel Lower Trim Panel Insulator Replacement - Right Side — figure 1
  1. Instrument Panel Lower Insulator Retainer (1) » Remove [3x]

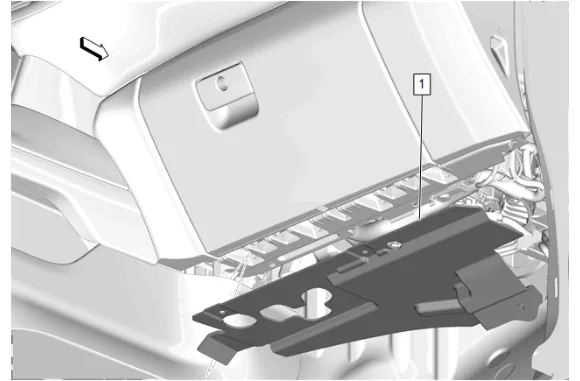

Instrument Panel Lower Trim Panel Insulator Replacement - Right Side — figure 2
Instrument Panel Lower Trim Panel Insulator Replacement - Right Side — figure 2

  1. Instrument Panel Lower Trim Panel Insulator (1) » Remove Installation Procedure

  2. Instrument Panel Lower Trim Panel Insulator (1) » Install

  3. Instrument Panel Lower Insulator Retainer (1) » Install [3x]
