Brake Pedal Assembly Replacement

Removal Procedure

Brake Pedal Assembly Replacement — figure 1
Brake Pedal Assembly Replacement — figure 1

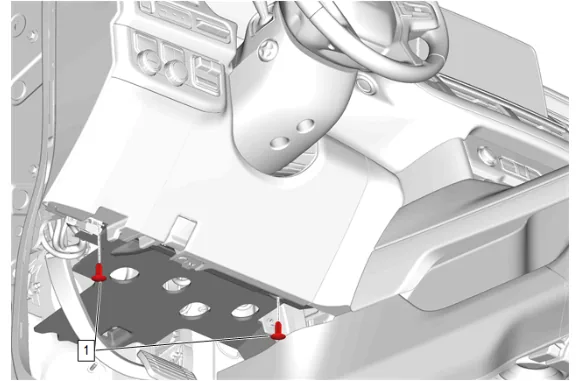

  1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]
Brake Pedal Assembly Replacement — figure 2
Brake Pedal Assembly Replacement — figure 2

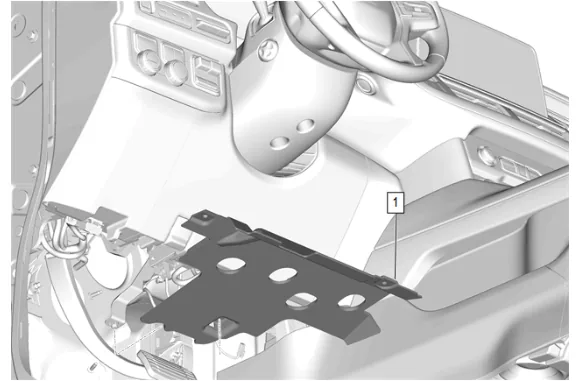

  1. Instrument Panel Lower Trim Panel Insulator (1) » Remove
Brake Pedal Assembly Replacement — figure 3
Brake Pedal Assembly Replacement — figure 3

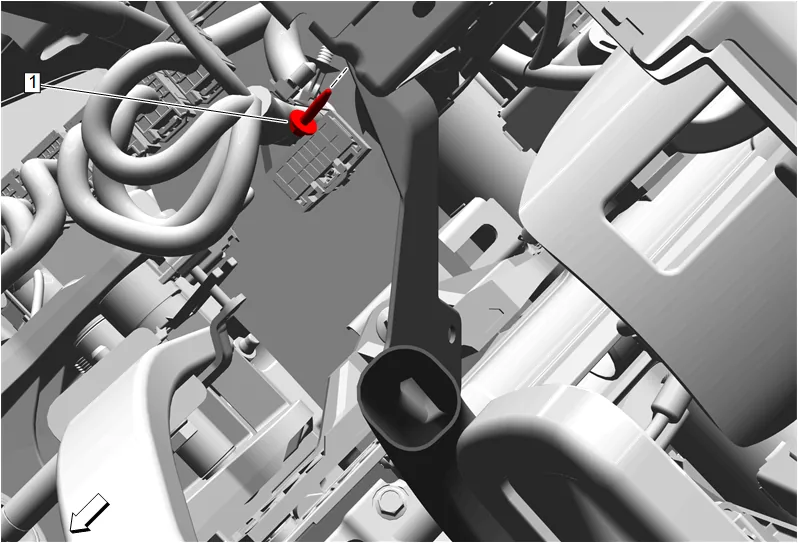

  1. Floor Front Air Outlet Duct Bolt (1) » Remove
Brake Pedal Assembly Replacement — figure 4
Brake Pedal Assembly Replacement — figure 4

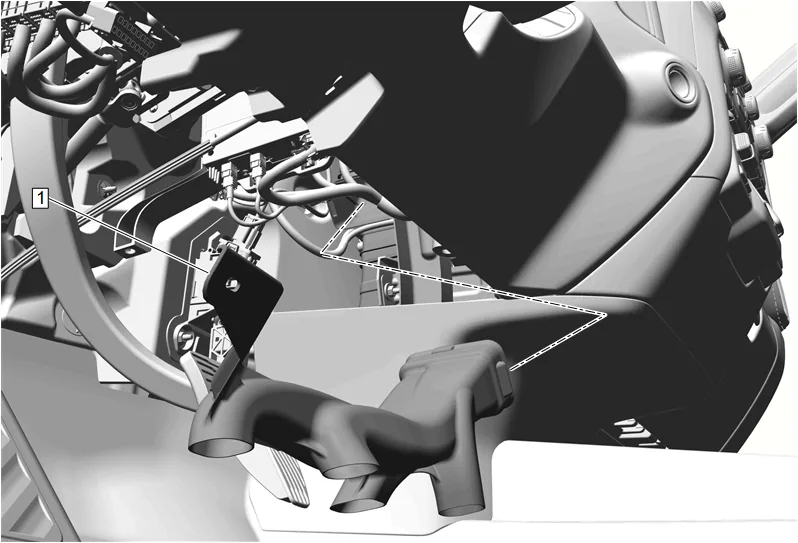

  1. Floor Front Air Outlet Duct - Left Side (1) » Remove
Brake Pedal Assembly Replacement — figure 5
Brake Pedal Assembly Replacement — figure 5
  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.

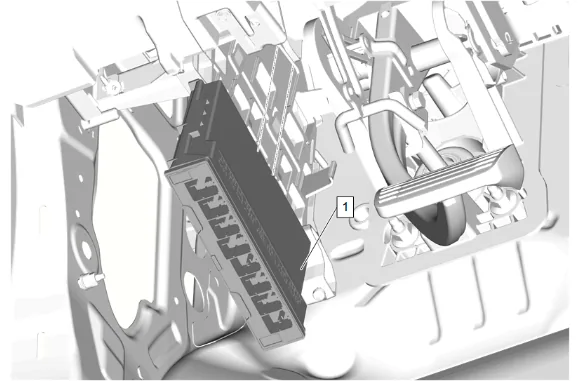

  3. Body Control Module (1) » Remove
Brake Pedal Assembly Replacement — figure 6
Brake Pedal Assembly Replacement — figure 6

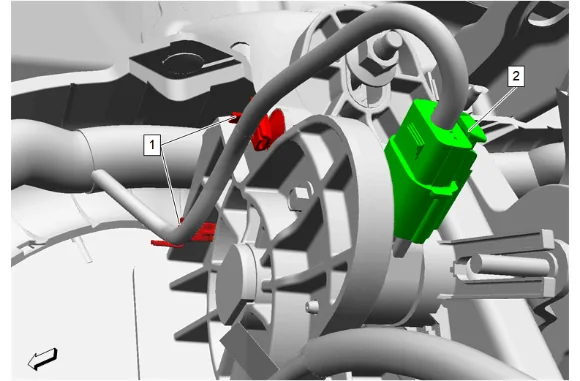

  1. Wiring Harness Retainer (1) @ Brake Pedal » Remove [2x]
  2. Brake Pedal Position Sensor Electrical Connector (2) » Disconnect
Brake Pedal Assembly Replacement — figure 7
Brake Pedal Assembly Replacement — figure 7

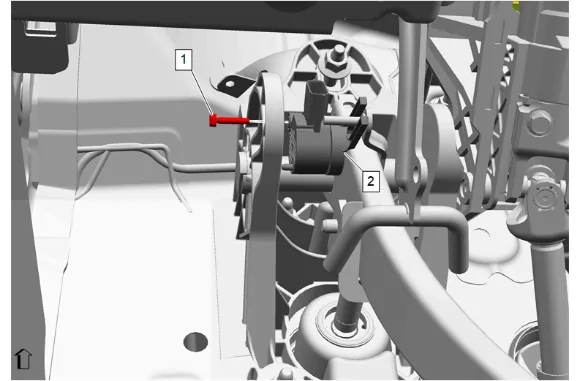

  1. Brake Pedal Position Sensor Bolt (1) » Remove
  2. Brake Pedal Position Sensor (2) » Remove
Brake Pedal Assembly Replacement — figure 8
Brake Pedal Assembly Replacement — figure 8

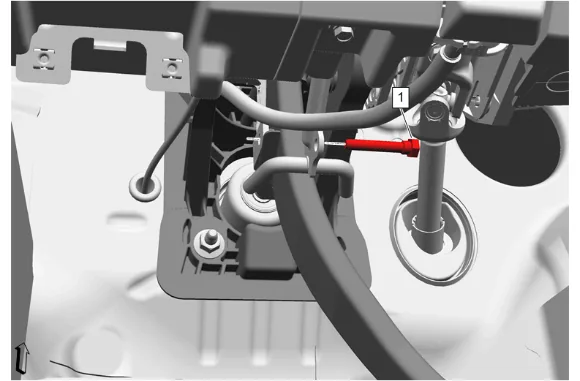

  1. Brake Pedal Push Rod Bolt (1) » Remove
Brake Pedal Assembly Replacement — figure 9
Brake Pedal Assembly Replacement — figure 9

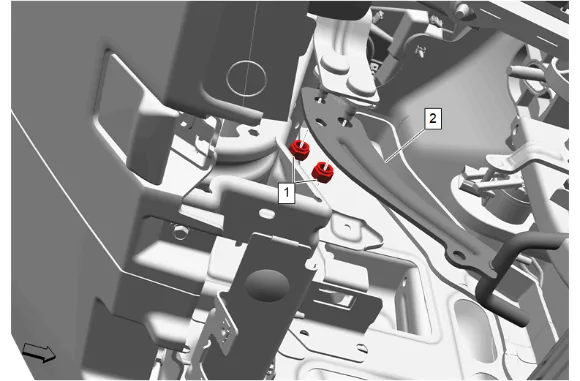

  1. Instrument Panel Tie Bar Bracket Nut (1) » Remove [2x]
  2. Instrument Panel Tie Bar Bracket (2) » Remove
Brake Pedal Assembly Replacement — figure 10
Brake Pedal Assembly Replacement — figure 10

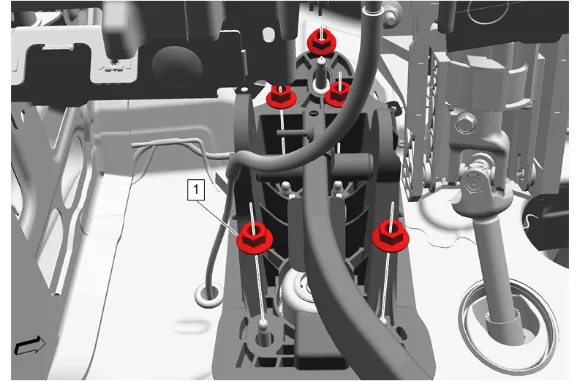

  1. Brake Pedal Nut (1) » Remove [5x]
Brake Pedal Assembly Replacement — figure 11
Brake Pedal Assembly Replacement — figure 11

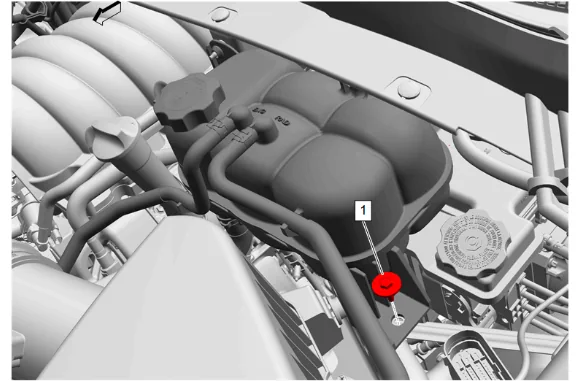

  1. Radiator Surge Tank Bolt (1) » Remove
Brake Pedal Assembly Replacement — figure 12
Brake Pedal Assembly Replacement — figure 12

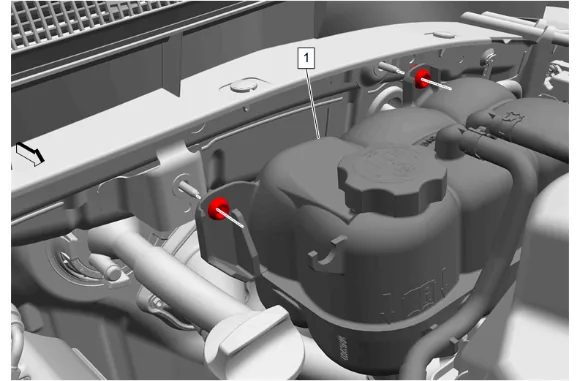

  1. Without disconnecting the hoses, remove the radiator surge tank and position aside. (1)
Brake Pedal Assembly Replacement — figure 13
Brake Pedal Assembly Replacement — figure 13

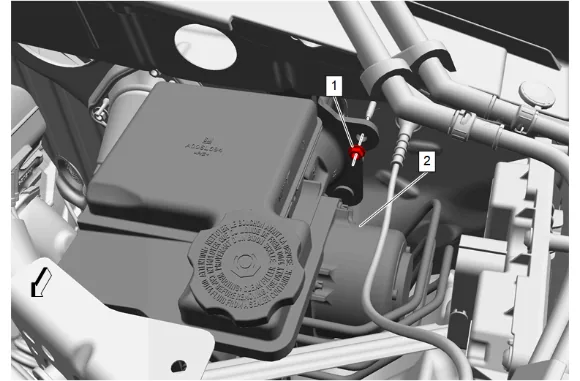

  1. Remove the brake master cylinder adapter nut (1) and pull the brake master cylinder (2) away from the fire wall to gain clearance for the removal of the brake pedal.
Brake Pedal Assembly Replacement — figure 14
Brake Pedal Assembly Replacement — figure 14

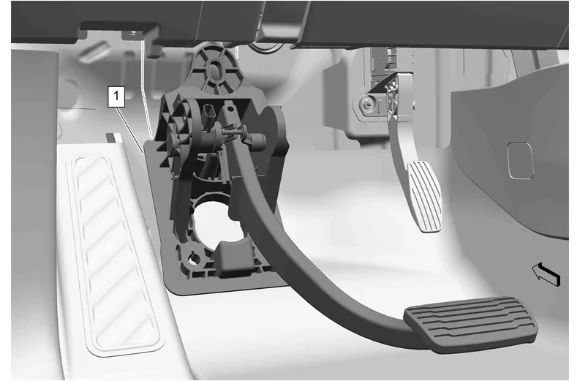

  1. Brake Pedal (1) » Remove Installation Procedure

  2. Brake Pedal (1) » Install

  1. Brake Pedal Nut (1) » Install and tighten [5x] — Fastener Specifications

  2. Instrument Panel Tie Bar Bracket (2) » Install

  3. Instrument Panel Tie Bar Bracket Nut (1) » Install and tighten [2x] — Fastener Specifications

  4. Brake Master Cylinder (2) » Install

  5. Brake Master Cylinder Adapter Nut (2) » Install and tighten — Fastener Specifications

  6. Radiator Surge Tank (1) » Install

  7. Radiator Surge Tank Bolt (1) » Install and tighten — Fastener Specifications

  8. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 9.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 9.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 9.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 9.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

  9. Brake Pedal Push Rod Bolt (1) » Install and tighten — Fastener Specifications

  10. Brake Pedal Position Sensor (2) » Install

  11. Brake Pedal Position Sensor Bolt (1) » Install and tighten — Fastener Specifications

  12. Wiring Harness Retainer (1) @ Brake Pedal » Install [2x]

  13. Brake Pedal Position Sensor Electrical Connector (2) » Connect

  14. Body Control Module (1) » Install

  15. Secure the retaining tabs.

  16. Connect the electrical connectors.

  1. Floor Front Air Outlet Duct - Left Side (1) » Install

  2. Floor Front Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

  3. Instrument Panel Lower Trim Panel Insulator (1) » Install

  4. Instrument Panel Lower Insulator Retainer (1) » Install [2x]

  5. Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
