Instrument Panel Upper Trim Panel Removal and Installation

Instrument Panel Upper Trim Panel Removal and Installation Single Use Fasteners and Components Instrument Panel Airbag Removal Procedure

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Warning

Refer to SIR Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

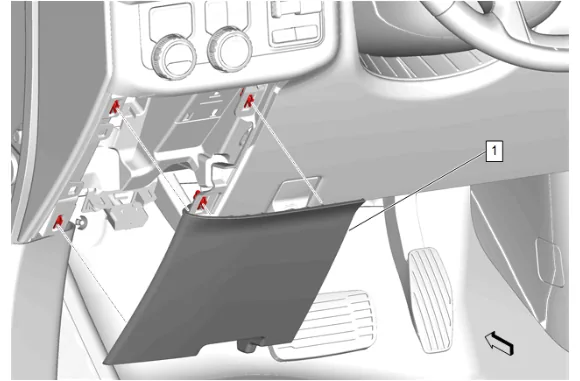

Instrument Panel Upper Trim Panel Removal and Installation — figure 1

2. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

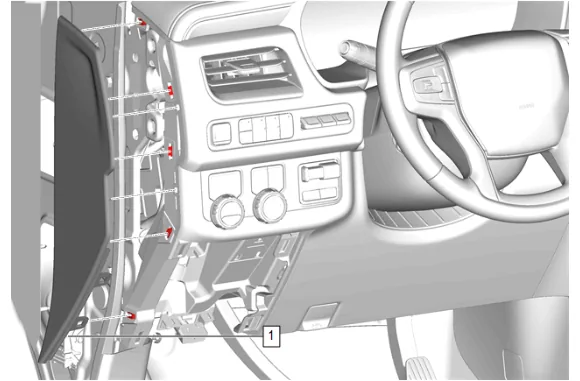

Instrument Panel Upper Trim Panel Removal and Installation — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

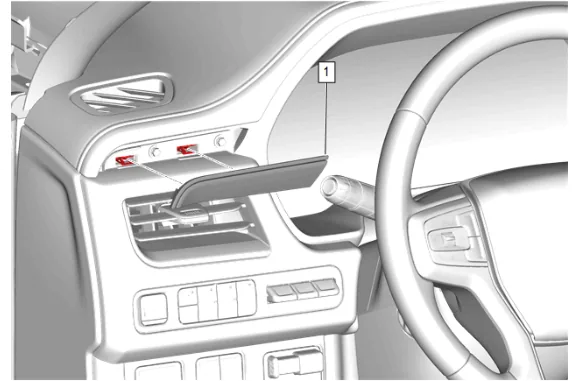

Instrument Panel Upper Trim Panel Removal and Installation — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Trim Plate Applique (1) » Remove

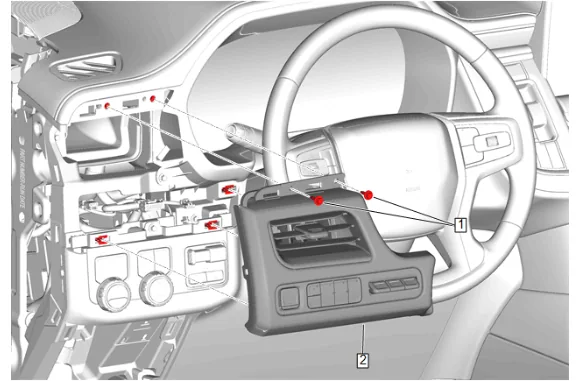

Instrument Panel Upper Trim Panel Removal and Installation — figure 4

7. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
8. Instrument Panel Trim Pad (2) » Remove
9. Disconnect the electrical connectors.

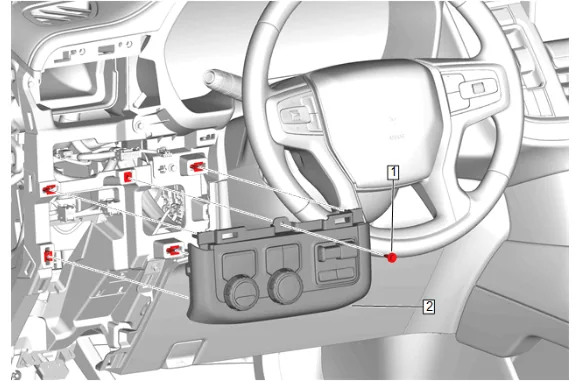

Instrument Panel Upper Trim Panel Removal and Installation — figure 5

10. Instrument Panel Switch Trim Plate Bolt (1) » Remove
11. Disconnect the electrical connectors.
12. Instrument Panel Switch Trim Plate (2) » Remove

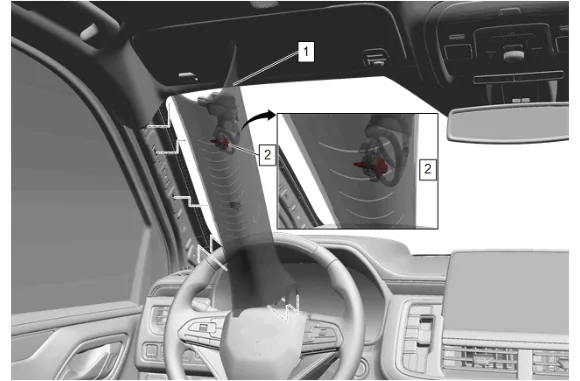

Instrument Panel Upper Trim Panel Removal and Installation — figure 6

13. Reposition the weatherstrip as necessary.
14. Pull down the windshield garnish molding (1) rearwards to release the tether from the A pillar.
15. Access the windshield garnish bolt (2) which is located on the backside of the windshield garnish molding (1) and secures the tether to the A pillar.
16. Windshield Garnish Molding Bolt (2) » Remove
17. Windshield Garnish Molding (1) » Remove

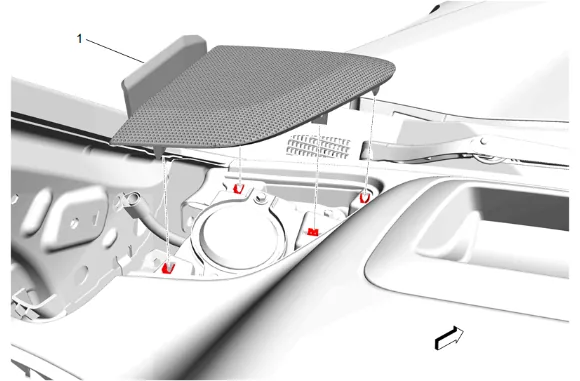

Instrument Panel Upper Trim Panel Removal and Installation — figure 7

18. Using a flat-bladed plastic trim tool, release the retaining clips.
19. Radio Front Speaker Grille (1) » Remove

Instrument Panel Upper Trim Panel Removal and Installation — figure 8

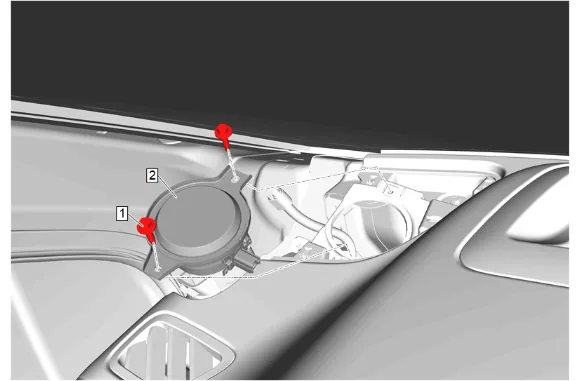

20. Radio Front Speaker Bolt (1) » Remove [2x]
21. Radio Front Speaker (2) » Remove
22. Disconnect the electrical connector.

Instrument Panel Upper Trim Panel Removal and Installation — figure 9

23. Using a flat-bladed plastic trim tool, release the retaining clips.
24. Disconnect the electrical connector.

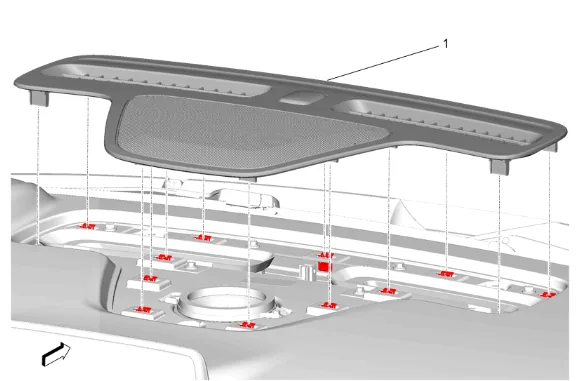

25. Instrument Panel Extension (1) » Remove

Instrument Panel Upper Trim Panel Removal and Installation — figure 10

26. Radio Front Center Speaker Bolt (1) » Remove [2x]
27. Radio Front Center Speaker (2) » Remove
28. Disconnect the electrical connector.

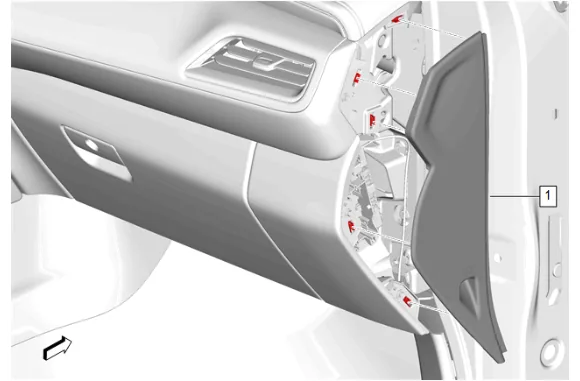

Instrument Panel Upper Trim Panel Removal and Installation — figure 11

29. Using a flat-bladed plastic trim tool, release the retaining clips.
30. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

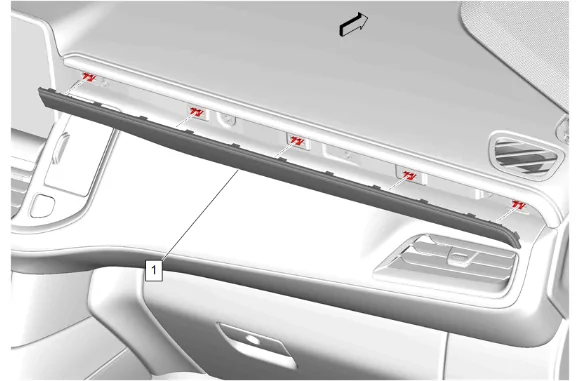

Instrument Panel Upper Trim Panel Removal and Installation — figure 12

31. Using a flat-bladed plastic trim tool, release the retaining clips.
32. Instrument Panel Trim Plate Applique (1) » Remove

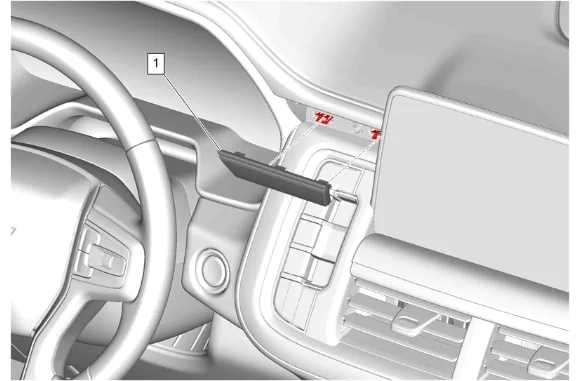

Instrument Panel Upper Trim Panel Removal and Installation — figure 13

33. Using a flat-bladed plastic trim tool, release the retaining clips.
34. Instrument Panel Center Trim Plate Applique (1) » Remove

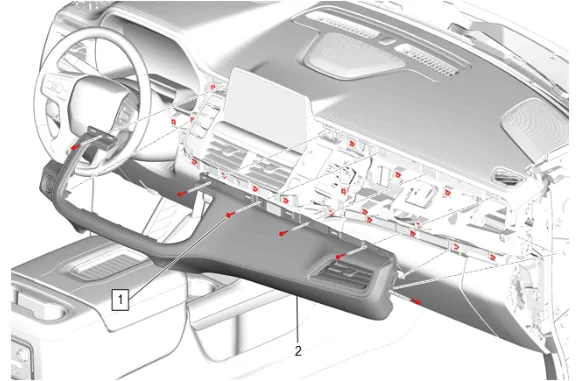

Instrument Panel Upper Trim Panel Removal and Installation — figure 14

35. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
36. Using a flat-bladed plastic trim tool, release the retaining clips.
37. Disconnect the electrical connector.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

38. Instrument Panel Trim Pad (2) » Remove

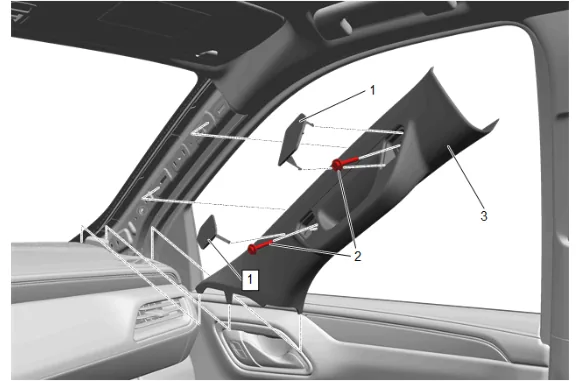

Instrument Panel Upper Trim Panel Removal and Installation — figure 15

39. Reposition the weatherstrip as necessary.
40. Windshield Pillar Assist Handle Cover (1) » Remove [2x]
41. Windshield Pillar Assist Handle Bolt (2) » Remove [2x]
42. Windshield Garnish Molding (3) » Remove

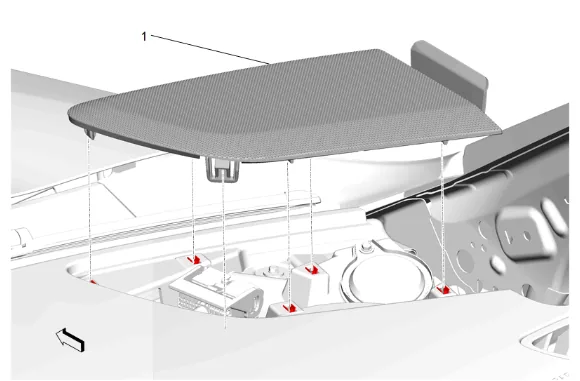

Instrument Panel Upper Trim Panel Removal and Installation — figure 16

43. Using a flat-bladed plastic trim tool, release the retaining clips.
44. Radio Front Speaker Grille (1) » Remove

Instrument Panel Upper Trim Panel Removal and Installation — figure 17

45. Radio Front Speaker Bolt (1) » Remove [2x]
46. Radio Front Speaker (2) » Remove
47. Disconnect the electrical connector.

Instrument Panel Upper Trim Panel Removal and Installation — figure 18

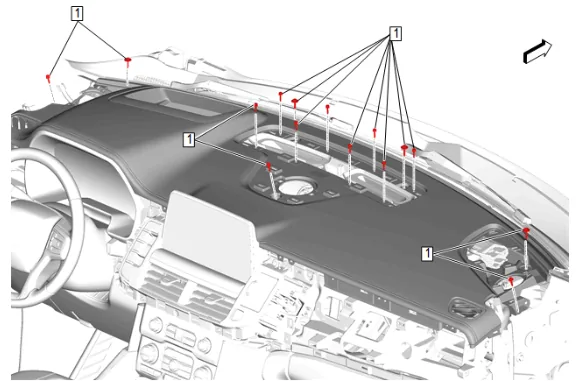

48. Instrument Panel Upper Trim Panel Bolt (1) » Remove [15x]
49. Disconnect the electrical connector.

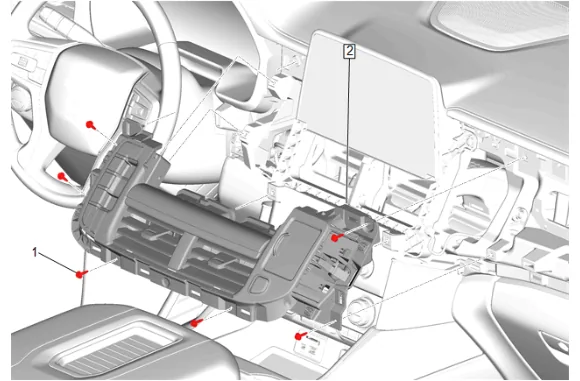

Instrument Panel Upper Trim Panel Removal and Installation — figure 19

50. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
51. Disconnect the electrical connectors.
52. Instrument Panel Transmission Shift Opening Cover (2) » Remove

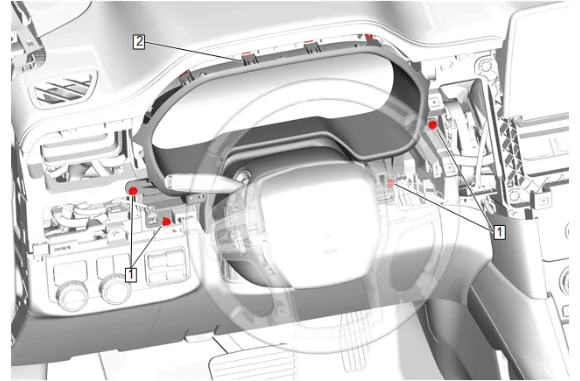

Instrument Panel Upper Trim Panel Removal and Installation — figure 20

53. Instrument Panel Cluster Trim Plate Bolt (1) » Loosen [4x]
54. Using a flat-bladed plastic trim tool, release the retaining clips.
55. Instrument Panel Cluster Trim Plate (2) » Loosen

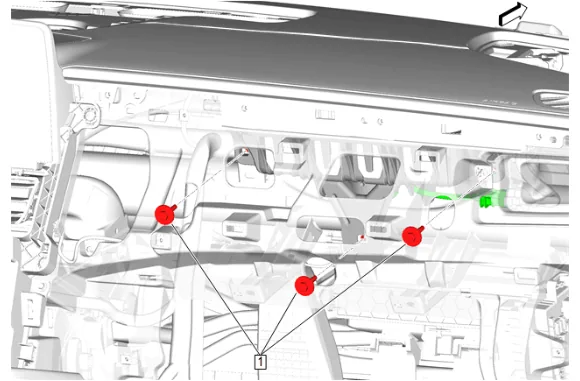

Instrument Panel Upper Trim Panel Removal and Installation — figure 21

56. Instrument Panel Airbag Bolt (1) » Remove [3x]
57. Disconnect the electrical connector.

Instrument Panel Upper Trim Panel Removal and Installation — figure 22

Note

The instrument panel upper trim panel and instrument panel airbag will be removed as an assembly.

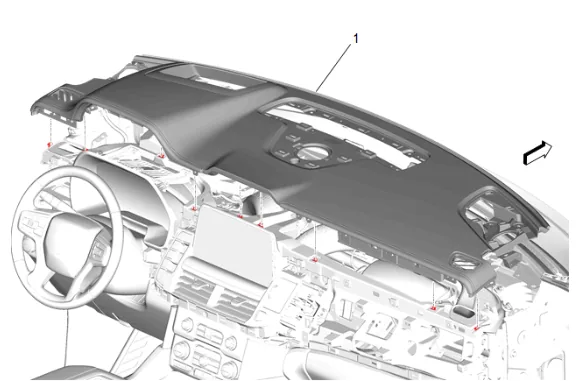

58. Remove the instrument panel upper trim panel (1) with the aid of an assistant. Installation Procedure

59. Install the instrument panel upper trim panel (1) with the aid of an assistant.

60. Connect the electrical connector.

Caution

Refer to Fastener Caution.

3. Instrument Panel Airbag Bolt (1) » Install and tighten [3x] — Fastener Specifications

4. Instrument Panel Cluster Trim Plate (2) » Install

5. Instrument Panel Cluster Trim Plate Bolt (1) » Tighten [4x] — Fastener Specifications

6. Connect the electrical connectors.

7. Instrument Panel Transmission Shift Opening Cover (2) » Install

8. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

9. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [15x] — Fastener Specifications

10. Connect the electrical connector.

11. Radio Front Speaker (2) » Install

12. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

13. Radio Front Speaker Grille (1) » Install

14. Windshield Garnish Molding (3) » Install

15. Windshield Pillar Assist Handle Bolt (2) » Install and tighten [2x] — Fastener Specifications

16. Windshield Pillar Assist Handle Cover (1) » Install [2x]

17. Reposition the weatherstrip as necessary.

18. Connect the electrical connector.

19. Instrument Panel Trim Pad (2) » Install

20. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

21. Instrument Panel Center Trim Plate Applique (1) » Install

22. Instrument Panel Trim Plate Applique (1) » Install

23. Instrument Panel Fuse Block Access Hole Cover (1) » Install

24. Connect the electrical connector.

25. Radio Front Center Speaker (2) » Install

26. Radio Front Center Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

27. Connect the electrical connector.

28. Instrument Panel Extension (1) » Install

29. Connect the electrical connector.

30. Radio Front Speaker (2) » Install

31. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

32. Radio Front Speaker Grille (1) » Install

33. Windshield Garnish Molding Bolt (2) » Install and tighten — Fastener Specifications

34. Align the retaining clips with the slots in the A pillar and press the windshield garnish molding  (1) into place.

35. Windshield Garnish Molding (1) » Install

36. Reposition the weatherstrip as necessary.

37. Connect the electrical connectors.

38. Instrument Panel Switch Trim Plate (2) » Install

39. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

40. Connect the electrical connectors.

41. Instrument Panel Trim Pad (2) » Install

42. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

43. Instrument Panel Trim Plate Applique (1) » Install

44. Instrument Panel Fuse Block Access Hole Cover (1) » Install

45. Instrument Panel Lower Trim Panel Outer Filler (1) » Install

46. Enable the SIR System. SIR Disabling and Enabling
