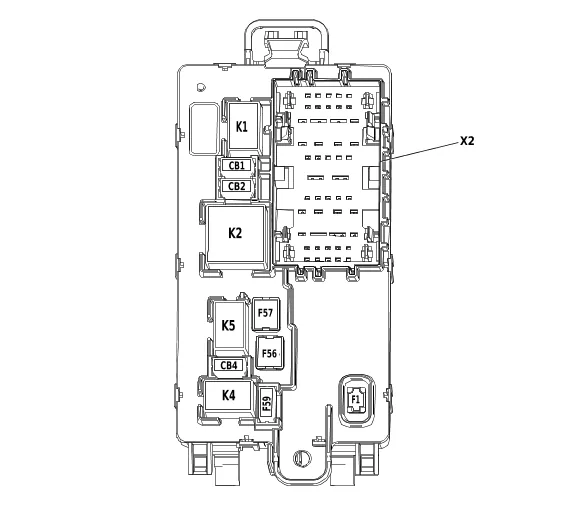

X51R Instrument Panel Wiring Harness Junction Block - Right Bottom View
Electrical Component and Inline Harness Connector End Views | Component Locator | Document ID: 5872058
Usage Table
| No. | Device Label Name | Device Assigned Name | Rating | Description | |
|---|---|---|---|---|---|
| Circuit Breakers | |||||
| CB1 | APO1 | CB1DR | 15A | X80G Accessory Power Receptacle - Instrument Panel (AZ3) X80H Accessory Power Receptacle - Floor Console Front (D07/DCK/DCH) | |
| CB2 | APO2 | CB2DR | 15A | Not Used | |
| CB4 | NOT USED | CB4DR | 15A | Not Used | |
| F1 | RT DOORS | F1DR | 30A | M74P Front Side Door Window Regulator Motor - Passenger S79RR Rear Side Door Window Switch - Right | |
| F56 | DC/DC CNV BATT 1 | F56DR | 40A | T19 Multifunction Power Supply Converter |
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| F57 | DC/DC CNV BATT 2 | F57DR | 40A | T19 Multifunction Power Supply Converter |
| F59 | NOT USED | F59DR | 15A | Not Used |
| K1 | NOT USED | — | — | Not Used |
| K2 | RAP/ACCY1 | KR76A Accessory Time Delay Cutoff Relay 1 | — | F26DR F27DR CB1DR CB2DR |
| K4 | RAP/ACCY2 | KR76B Accessory Time Delay Cutoff Relay 2 | — | CB3DR CB4DR |
| K5 | NOT USED | — | — | Not Used |
