Driver or Passenger Seat Adjuster Memory Module Replacement

Driver or Passenger Seat Adjuster Memory Module Replacement Removal Procedure

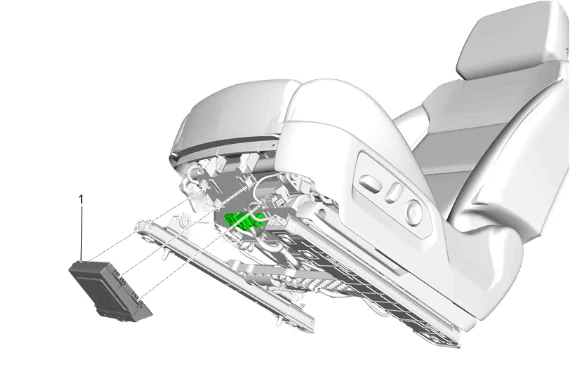

Driver or Passenger Seat Adjuster Memory Module Replacement — figure 1

1. Reposition the seat as necessary.

2. Disconnect the electrical connectors.

3. Release the retaining tabs.

4. Driver or Passenger Seat Adjuster Memory Module (1) » Remove Installation Procedure

5. Driver or Passenger Seat Adjuster Memory Module (1) » Install

6. Connect the electrical connectors.

7. Return the seat to its original position.

8. Perform the necessary programming and setup procedure: Control Module References
