Brake Pedal Position Sensor Replacement

Removal Procedure

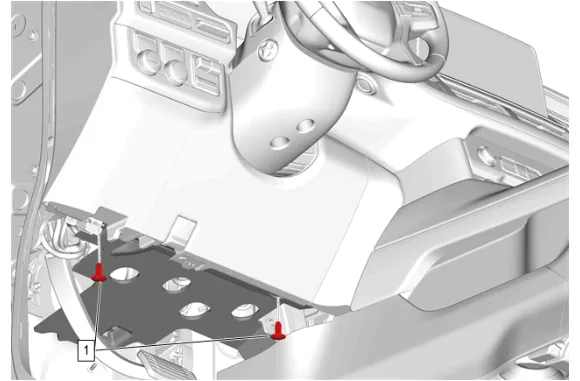

Brake Pedal Position Sensor Replacement — figure 1
Brake Pedal Position Sensor Replacement — figure 1
  1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

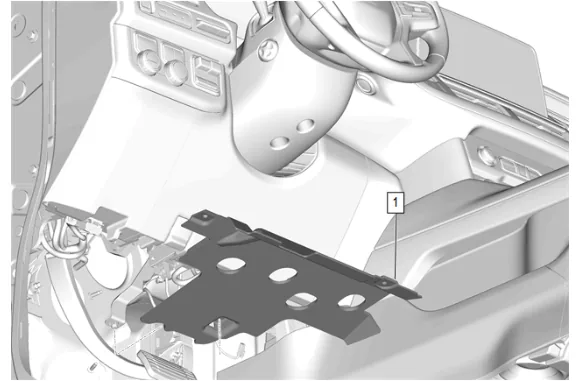

Brake Pedal Position Sensor Replacement — figure 2
Brake Pedal Position Sensor Replacement — figure 2
  1. Instrument Panel Lower Trim Panel Insulator (1) » Remove

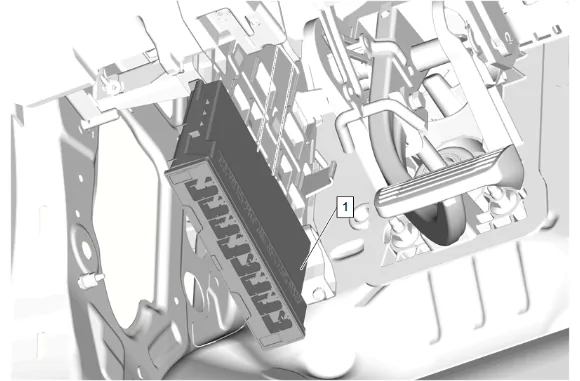

Brake Pedal Position Sensor Replacement — figure 3
Brake Pedal Position Sensor Replacement — figure 3
  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
  3. Body Control Module (1) » Remove

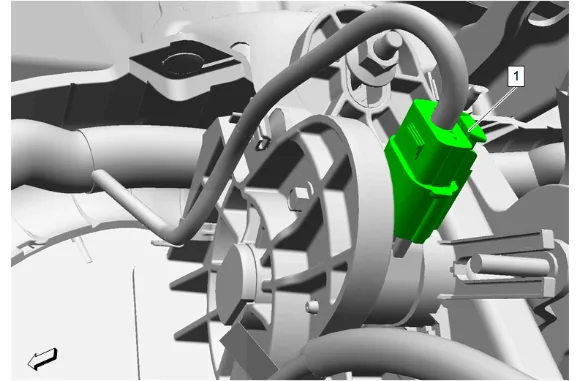

Brake Pedal Position Sensor Replacement — figure 4
Brake Pedal Position Sensor Replacement — figure 4
  1. Brake Pedal Position Sensor Electrical Connector (1) » Disconnect

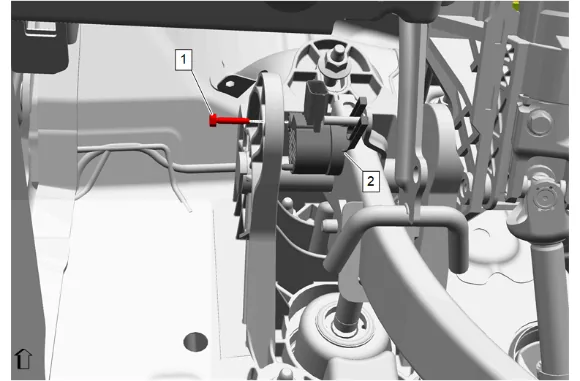

Brake Pedal Position Sensor Replacement — figure 5
Brake Pedal Position Sensor Replacement — figure 5

  1. Brake Pedal Position Sensor Bolt (1) » Remove

  2. Brake Pedal Position Sensor (2) » Remove Installation Procedure

  3. Brake Pedal Position Sensor (2) » Install

  1. Brake Pedal Position Sensor Bolt (1) » Install and tighten — Fastener Specifications

  2. Brake Pedal Position Sensor Electrical Connector (1) » Connect

  3. Body Control Module (1) » Install

  4. Secure the retaining tabs.

  5. Connect the electrical connectors.

  6. Instrument Panel Lower Trim Panel Insulator (1) » Install

  7. Instrument Panel Lower Insulator Retainer (1) » Install [2x]

  8. Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
