Tahoe / Yukon Service Manual

Spare Wheel Heat Shield Replacement (Dual Exhaust)

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the spare tire.

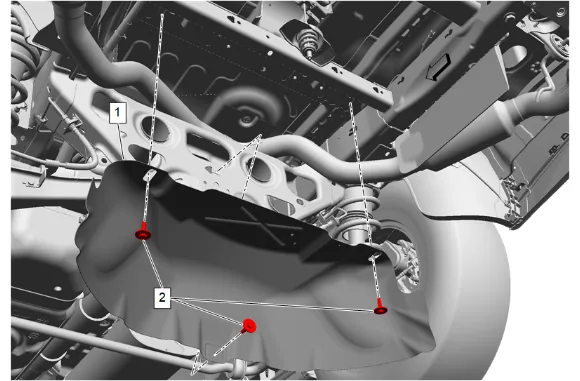

Spare Wheel Heat Shield Replacement (Dual Exhaust) — figure 1
Spare Wheel Heat Shield Replacement (Dual Exhaust) — figure 1

  1. Spare Wheel Heat Shield Bolt (2) » Remove [3x]

  2. Spare Wheel Heat Shield (1) » Remove Installation Procedure

  3. Spare Wheel Heat Shield (1) » Install

  1. Spare Wheel Heat Shield Bolt (2) » Install and tighten [3x] — Fastener Specifications
  2. Install the spare tire.
  3. Lower the vehicle.
