Front Bumper Fascia Seal Replacement (with RC1)

Removal Procedure

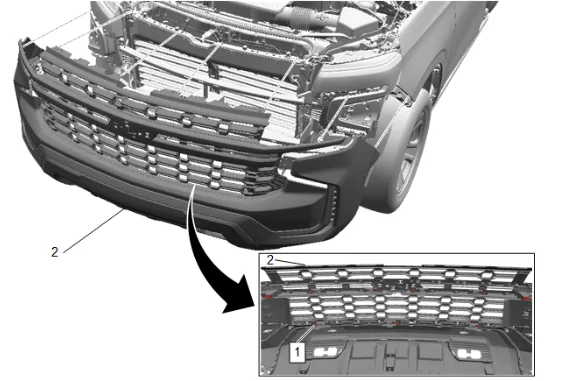

Front Bumper Fascia Seal Replacement (with RC1) — figure 1

1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

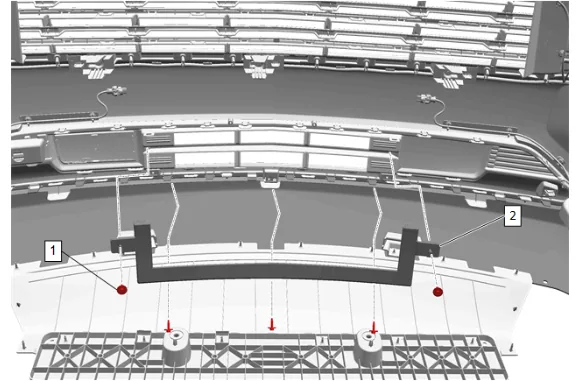

Front Bumper Fascia Seal Replacement (with RC1) — figure 2

2. Front Bumper Fascia Bolt (1) » Remove [5x]

3. Front Bumper Fascia Seal (2) » Remove Installation Procedure

4. Front Bumper Fascia Seal (2) » Install

Caution

Refer to Fastener Caution.

2. Front Bumper Fascia Bolt (1) » Install and tighten [5x] — Fastener Specifications

3. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
