Rear Seat Recliner Outer Finish Cover Replacement - Inboard (Bucket)

Rear Seat Recliner Outer Finish Cover Replacement - Inboard (Bucket) Removal Procedure

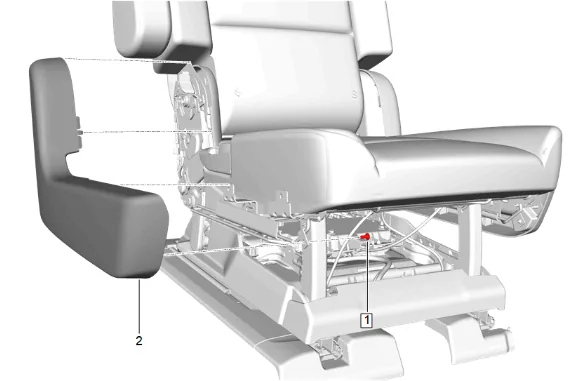

Rear Seat Recliner Outer Finish Cover Replacement - Inboard (Bucket) — figure 1

1. Front Seat Bolt (1) » Remove

2. Using a suitable plastic trim tool, release the retaining tabs.

3. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Remove Installation Procedure

4. Rear Seat Recliner Outer Finish Cover - Inboard (2) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Bolt (1) » Install and tighten — Fastener Specifications
