3rd Row Seat Cushion Cover and Pad Removal and Installation (60 Percent)

3rd Row Seat Cushion Cover and Pad Removal and Installation (60 Percent) Removal Procedure

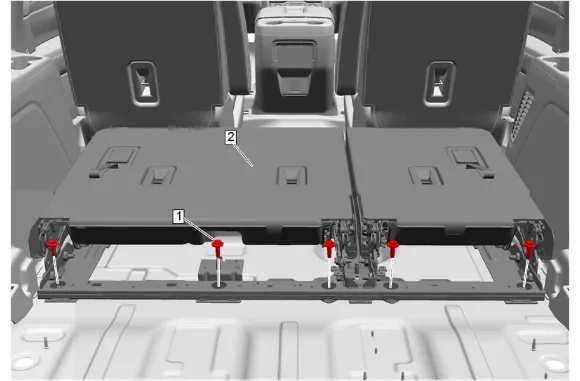

3rd Row Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 1
3rd Row Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 1
  1. 3rd Row Seat (2) » Remove — 3rd Row Seat Removal and Installation
3rd Row Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 2
3rd Row Seat Cushion Cover and Pad Removal and Installation (60 Percent) — figure 2

  1. Disengage the J-channel retainers from the seat cushion frame.

  2. Remove the 3rd row seat cushion cover and pad (1) as an assembly. Installation Procedure

  3. 3rd Row Seat Cushion Cover and Pad (1) » Install

  4. Engage the J-channel retainers.

  5. 3rd Row Seat (2) » Install — 3rd Row Seat Removal and Installation
