1-3-5-6-7-8-9 Clutch Assembly

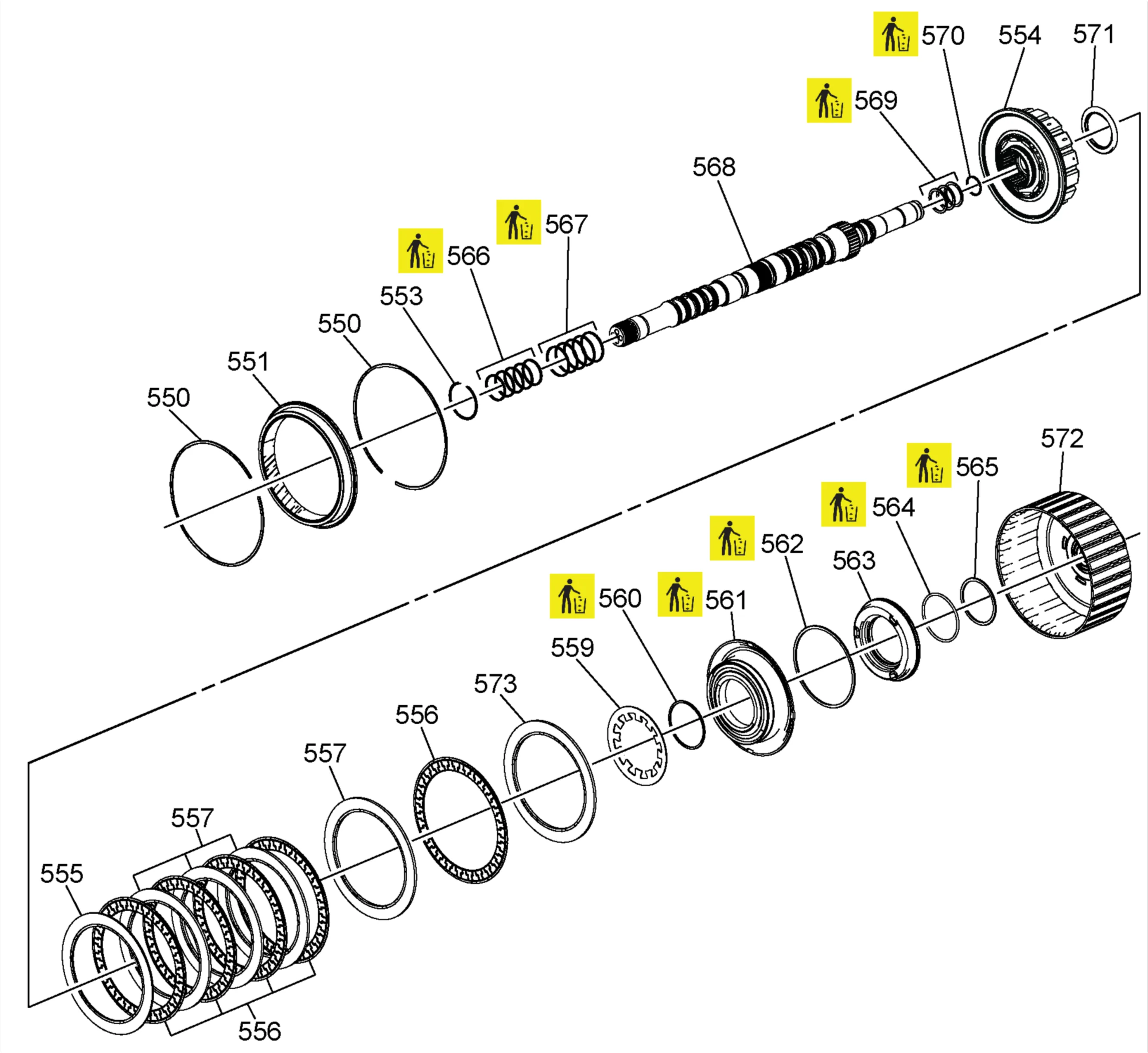

1-3-5-6-7-8-9 Clutch Assembly — figure 1

(550) Direct Overdrive Internal Gear Retaining Ring (551) Direct Overdrive Internal Gear (553) Turbine Shaft Retaining Ring (554) 1-3-5-6-7-8-9 Clutch Hub (555) 1-3-5-6-7-8-9 Clutch Backing Plate - Selective (556) 1-3-5-6-7-8-9 Fiber Clutch Plate (557) 1-3-5-6-7-8-9 Steel Clutch Plate (559) 1-3-5-6-7-8-9 Clutch Piston Return Spring (560) 1-3-5-6-7-8-9 Clutch Piston Seal (561) 1-3-5-6-7-8-9 Clutch Piston (562) 1-3-5-6-7-8-9 Clutch Piston Dam Seal - Large (563) 1-3-5-6-7-8-9 Clutch Piston Dam (564) 1-3-5-6-7-8-9 Clutch Piston Dam Seal - Small (565) 1-3-5-6-7-8-9 Clutch Piston Dam Retaining Ring (566) Turbine Shaft Seal (567) Turbine Shaft Seal (568) Turbine Shaft (569) Turbine Shaft Seal (570) Turbine Shaft Seal (571) Output Sun Gear Thrust Bearing Assembly (572) Output Sun Gear (573) 1-3-5-6-7-8-9 Clutch Backing Plate - Selective
