Radiator Surge Tank Inlet Hose Replacement (LM2)

Removal Procedure

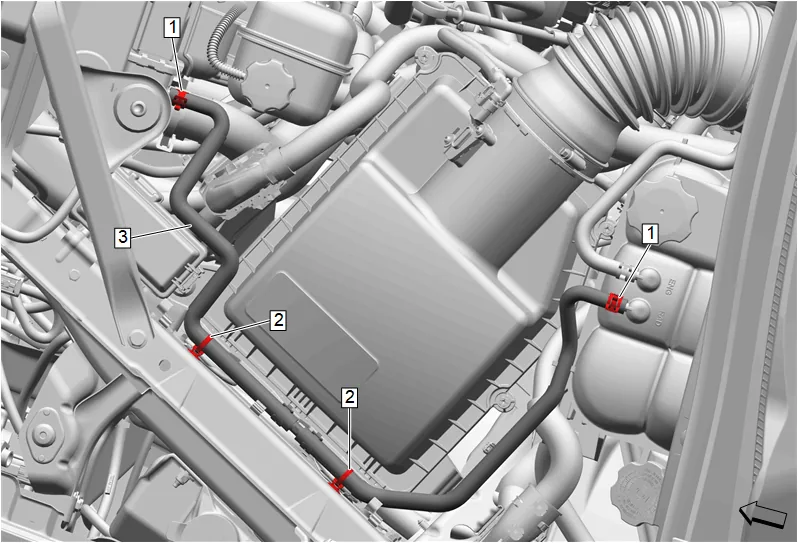

Radiator Surge Tank Inlet Hose Replacement (LM2) — figure 1

1. Radiator Surge Tank Inlet Hose Clamp (1) » Disengage [2x] — Hose Clamp Replacement Guidelines - Spring Type

2. Radiator Surge Tank Inlet Hose Clip (2) » Remove [2x]

3. Radiator Surge Tank Inlet Hose (3) » Remove Installation Procedure

4. Radiator Surge Tank Inlet Hose (3) » Install

5. Radiator Surge Tank Inlet Hose Clip (2) » Install [2x]

6. Radiator Surge Tank Inlet Hose Clamp (1) » Engage [2x] — Hose Clamp Replacement Guidelines - Spring Type

7. Fill the cooling system to the proper level. Cooling System Draining and Filling

8. Start the engine and check for coolant leaks.
