USB 2 Port Receptacle Replacement

Removal Procedure

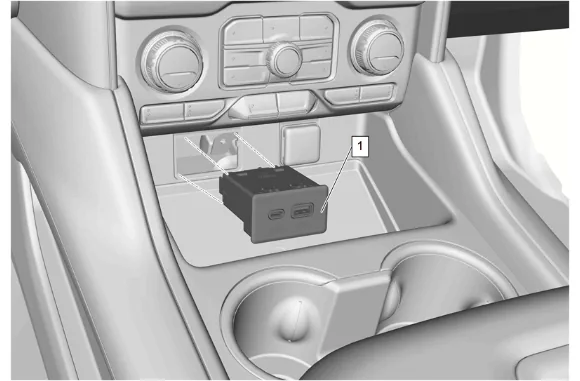

USB 2 Port Receptacle Replacement — figure 1

1. Using a suitable plastic trim tool, release the retaining tabs.

2. Disconnect the electrical connector.

3. USB 2 Port Receptacle (1) » Remove Installation Procedure

4. Connect the electrical connector.

5. USB 2 Port Receptacle (1) » Install
