Fill Plug Replacement (1)

Fill Plug Replacement Removal Procedure

1. Raise the vehicle. Lifting and Jacking the Vehicle

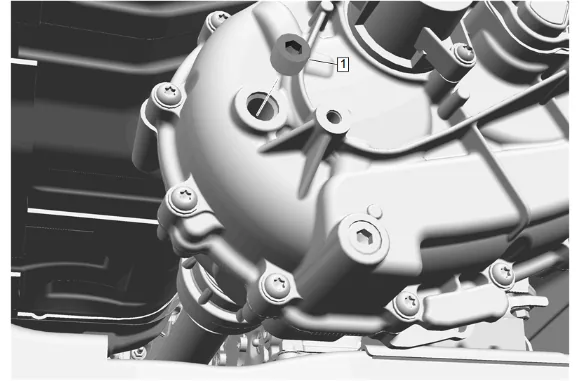

Fill Plug Replacement (1) — figure 1

2. Transfer Case Oil Fill Plug (1) » Remove Installation Procedure

3. Apply sealant to the threads of the transfer case oil fill plug (1). Adhesives, Fluids, Lubricants, and Sealers

Caution

Refer to Component Fastener Tightening Caution.

2. Transfer Case Oil Fill Plug (1) » Install and tighten — Fastener Specifications
3. Lower the vehicle.
