Instrument Panel Knee Bolster Replacement

Warning

When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury. Removal Procedure

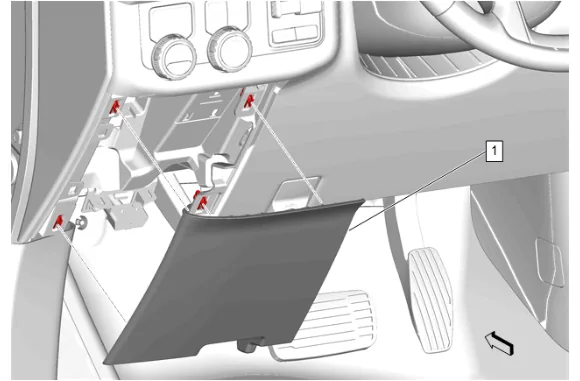

Instrument Panel Knee Bolster Replacement — figure 1

1. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

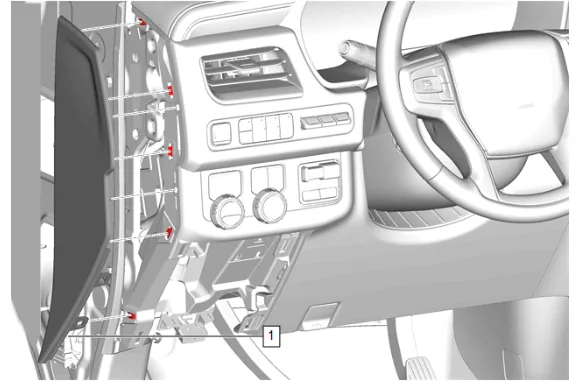

Instrument Panel Knee Bolster Replacement — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

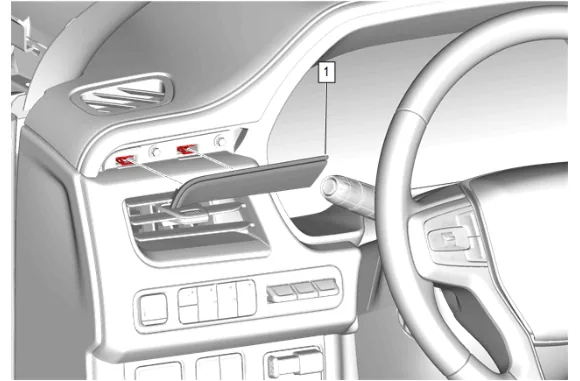

Instrument Panel Knee Bolster Replacement — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Instrument Panel Trim Plate Applique (1) » Remove

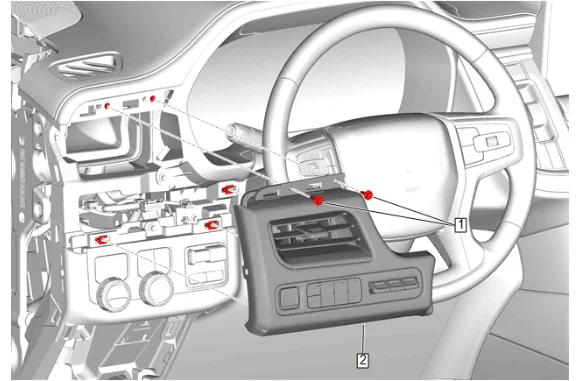

Instrument Panel Knee Bolster Replacement — figure 4

6. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
7. Disconnect the electrical connectors.
8. Instrument Panel Trim Pad (2) » Remove

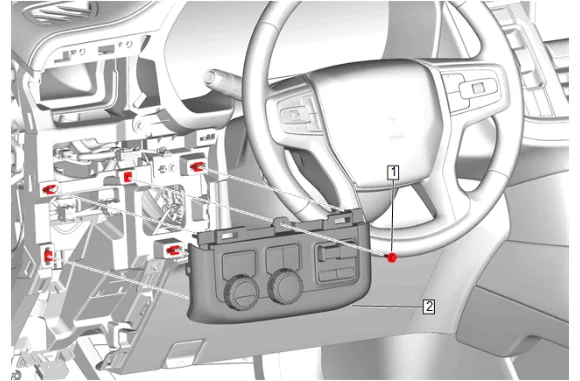

Instrument Panel Knee Bolster Replacement — figure 5

9. Instrument Panel Switch Trim Plate Bolt (1) » Remove
10. Disconnect the electrical connectors.
11. Instrument Panel Switch Trim Plate (2) » Remove

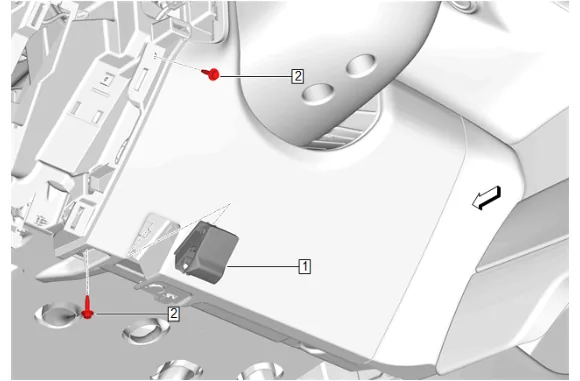

Instrument Panel Knee Bolster Replacement — figure 6

12. Hood Primary Latch Release Cable Handle (1) » Release
13. Instrument Panel Knee Bolster Bolt (2) » Remove [2x]

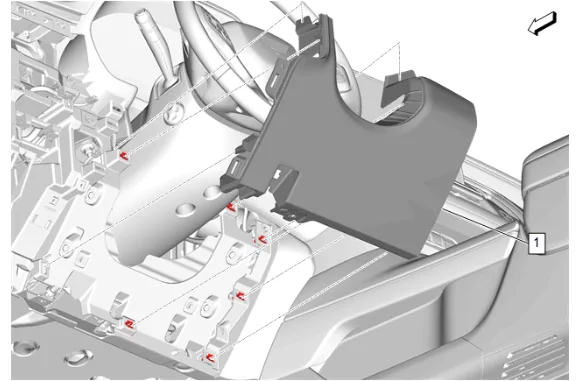

Instrument Panel Knee Bolster Replacement — figure 7

Note

You may have to push down on the lower steering column closeout to clear the instrument panel cluster trim plate.

14. Instrument Panel Knee Bolster (1) » Remove Installation Procedure

15. Instrument Panel Knee Bolster (1) » Install

Caution

Refer to Fastener Caution.

2. Instrument Panel Knee Bolster Bolt (2) » Install and tighten [2x] — Fastener Specifications

3. Hood Primary Latch Release Cable Handle (1) » Install

4. Connect the electrical connectors.

5. Instrument Panel Switch Trim Plate (2) » Install

6. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

7. Connect the electrical connectors.

8. Instrument Panel Trim Pad (2) » Install

9. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

10. Instrument Panel Trim Plate Applique (1) » Install

11. Instrument Panel Fuse Block Access Hole Cover (1) » Install

12. Instrument Panel Lower Trim Panel Outer Filler (1) » Install
