Tahoe / Yukon Service Manual

Fuel Tank Heat Shield Replacement (Short Wheelbase) (1)

Fuel Tank Heat Shield Replacement (Short Wheelbase) Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

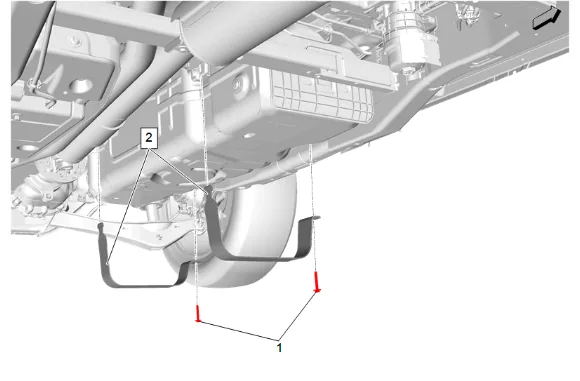

Fuel Tank Heat Shield Replacement (Short Wheelbase) (1) — figure 1
Fuel Tank Heat Shield Replacement (Short Wheelbase) (1) — figure 1
  1. Place a suitable adjustable jack under the fuel tank.
  2. Fuel Tank Strap Bolt (1) » Remove [2x]
  3. Fuel Tank Strap (2) » Remove [2x]

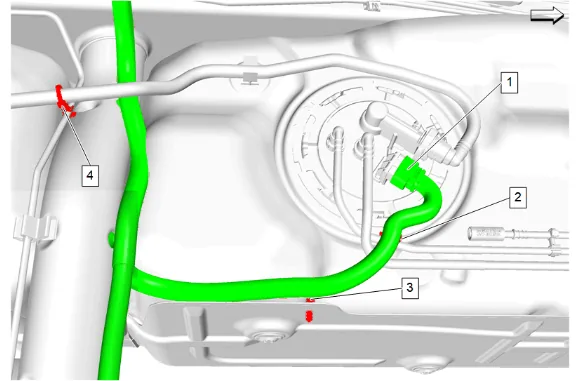

Fuel Tank Heat Shield Replacement (Short Wheelbase) (1) — figure 2
Fuel Tank Heat Shield Replacement (Short Wheelbase) (1) — figure 2
  1. Wiring Harness Retainer (3) » Disengage
Fuel Tank Heat Shield Replacement (Short Wheelbase) (1) — figure 3
Fuel Tank Heat Shield Replacement (Short Wheelbase) (1) — figure 3

  1. Fuel Tank Shield Retainer (1) » Remove [6x]

  2. Fuel Tank Heat Shield (2) » Remove Installation Procedure

  3. Fuel Tank Heat Shield (2) » Install

  4. Fuel Tank Shield Retainer (1) » Install [6x]

  5. Wiring Harness Retainer (3) » Engage

  6. Fuel Tank Strap (2) » Install [2x]

  1. Fuel Tank Strap Bolt (1) » Install and tighten [2x] — Fastener Specifications
  2. Remove the jack.
  3. Lower the vehicle.
