Control Valve Body Replacement (LM2)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - On Vehicle | Document ID: 5816515 Single Use Fasteners and Components Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal Automatic Transmission Auxiliary Fluid Pump Seal Automatic Transmission Fluid Filter Bolt [2x] Automatic Transmission Fluid Pump Seal Control Valve Solenoid Body Bolt [3x] Removal Procedure

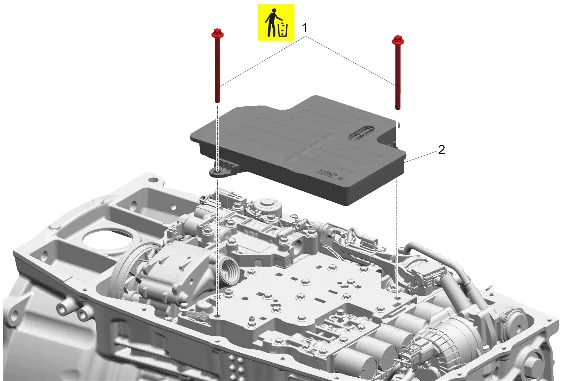

Control Valve Body Replacement (LM2) — figure 1

1. Automatic Transmission Fluid Filter (2) » Remove — Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement

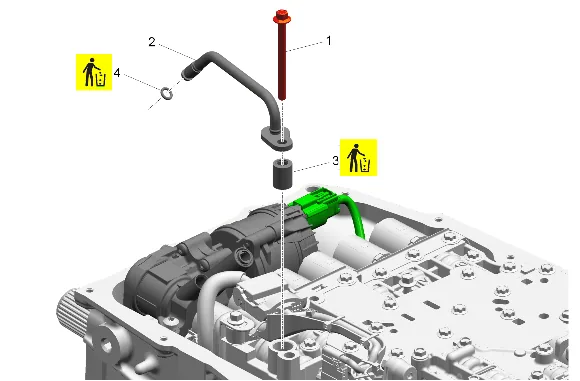

Control Valve Body Replacement (LM2) — figure 2

2. Control Valve Upper Body Bolt (1) » Remove
3. Automatic Transmission Auxiliary Fluid Pump Outlet Pipe (2) » Remove
4. Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal (3) » Remove and DISCARD
5. Automatic Transmission Auxiliary Fluid Pump Seal (4) » Remove and DISCARD

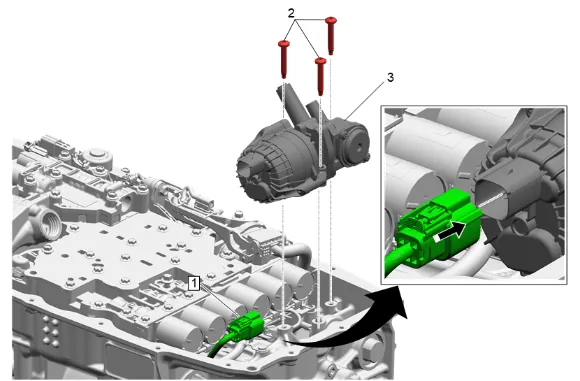

Control Valve Body Replacement (LM2) — figure 3

6. Disconnect the automatic transmission auxiliary fluid pump electrical connector (1).
7. Automatic Transmission Auxiliary Fluid Pump Bolt (2) » Remove [3x]
8. Automatic Transmission Auxiliary Fluid Pump (3) » Remove

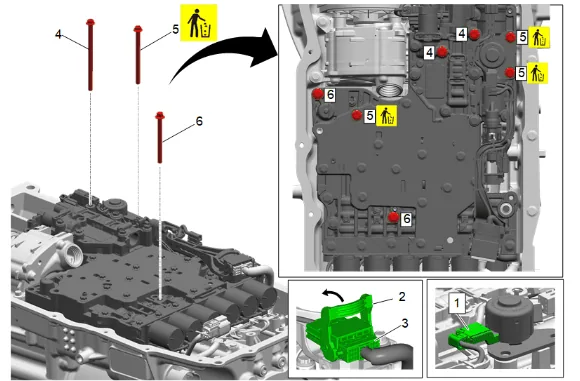

Control Valve Body Replacement (LM2) — figure 4

Note

The control valve solenoid body bolts are marked by arrows in the valve body casting.

9. Disconnect the park inhibitor solenoid electrical connector (1).
10. Unlock the main control wiring harness connector latch (2).
11. Disconnect the transmission wiring harness (3).
12. Control Valve Solenoid Body Bolt (4) » Remove [2x]
13. Control Valve Solenoid Body Bolt (5) » Remove and DISCARD [3x]
14. Control Valve Solenoid Body Bolt (6) » Remove [2x]

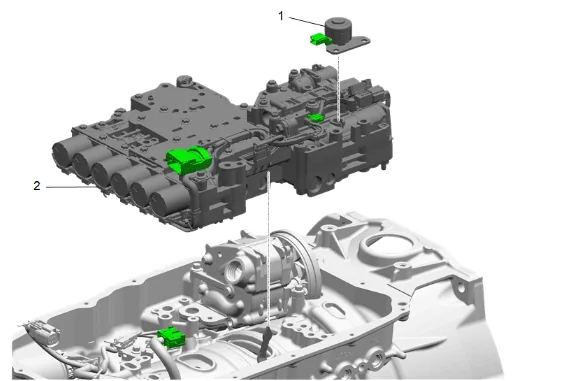

Control Valve Body Replacement (LM2) — figure 5

15. Park Inhibitor Solenoid (1) » Remove

Note

Do not disassemble the control valve body assembly. The internal parts are NOT serviceable.

16. Control Valve Body Assembly (2) » Remove

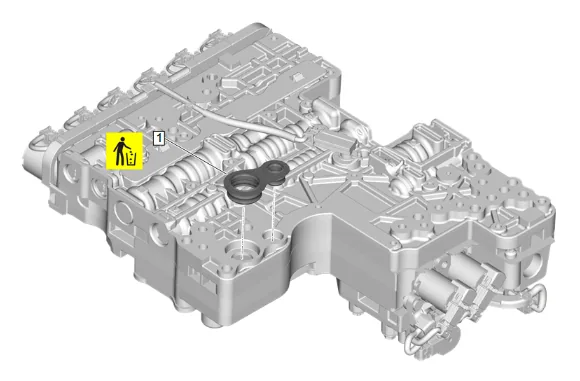

Control Valve Body Replacement (LM2) — figure 6

17. Automatic Transmission Fluid Pump Seal (1) » Remove and DISCARD Installation Procedure

18. Note the part unique number (PUN) before installing the valve solenoid body. Control Valve Solenoid Body Identification Information

19. Automatic Transmission Fluid Pump Seal (1) » Install NEW

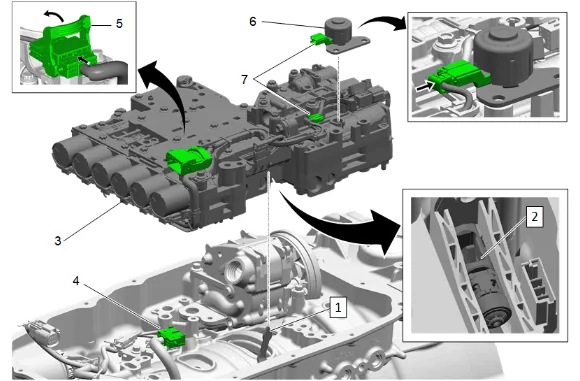

Control Valve Body Replacement (LM2) — figure 7

Caution

The Park Pawl Actuator Lever must be in the park position, fully forward position, and aligned with the slot in the piston servo prior to lowering the Control Valve Assembly into place. Contact between the switch housing or magnet carrier and the end of the Park Pawl Actuator Lever during installation can damage these components and lead to failure. This damage may not be immediately apparent and may occur during subsequent vehicle operation.

Note

Ensure the automatic transmission fluid pump seal is in the control valve body.

Note

The piston servo (2) opening must be positioned correctly as shown. Use appropriate tool to position opening if necessary.

3. Place the park pawl actuator (1) in the park position.
4. Carefully place the control valve body assembly (3) in the transmission ensuring park pawl actuator lever (1) aligns inside the piston servo opening (2).
5. Control Valve Body Assembly (3) » Install

Note

Ensure the wiring harness is not pinched after valve body installation.

6. Connect the main control wiring harness connector (4) then lock the connector latch (5).
7. Park Inhibitor Solenoid (6) » Install
8. Connect the park inhibitor solenoid connector (7).

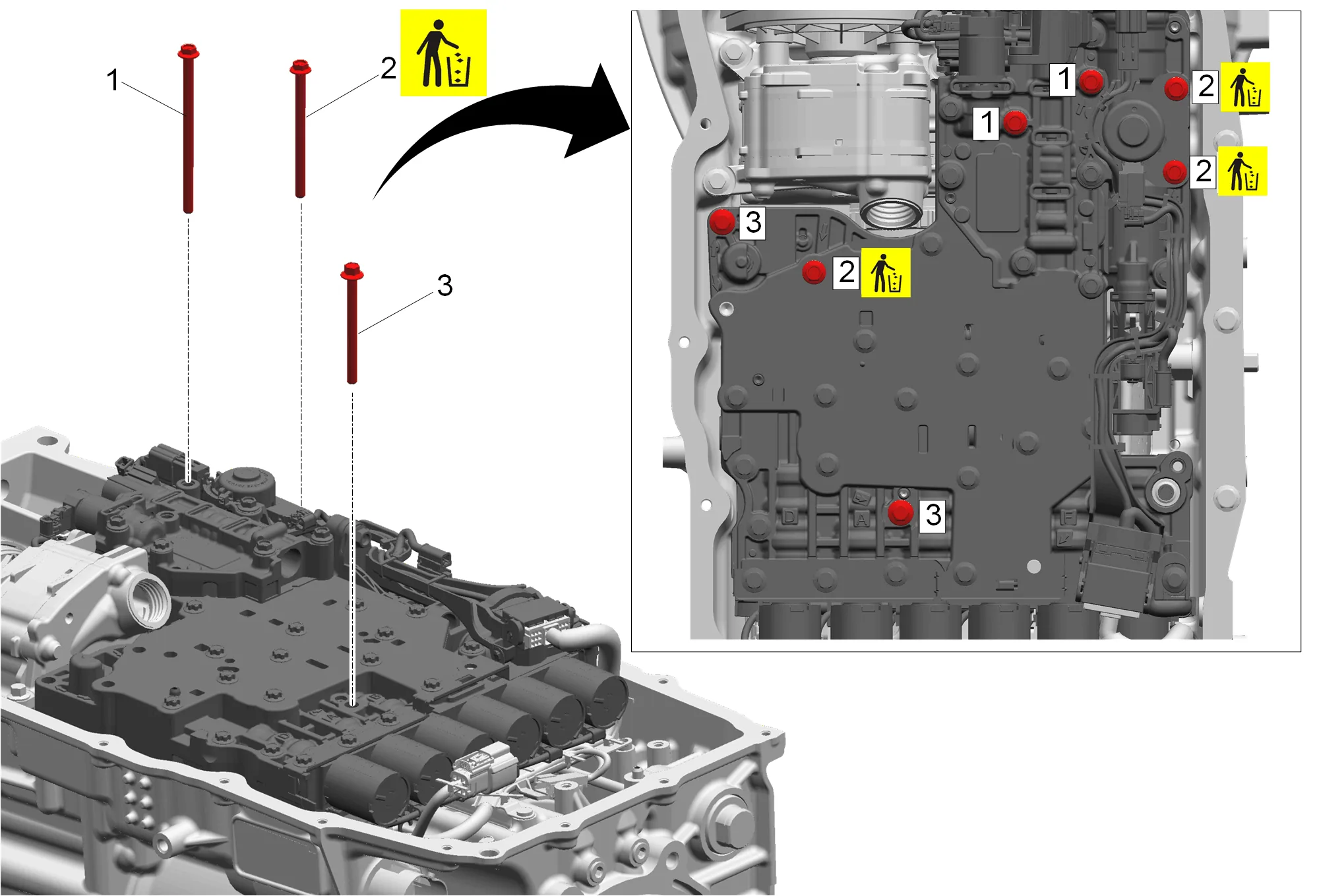

Control Valve Body Replacement (LM2) — figure 8

Note

Allow bolt holes to dry before installing bolts.

9. Clean the bolt holes and ensure they are free from old sealant.
10. Control Valve Solenoid Body Bolt (1) » Install and hand tighten [2x]
11. Control Valve Solenoid Body Bolt (2) » Install NEW and hand tighten [3x]
12. Control Valve Solenoid Body Bolt (3) » Install and hand tighten [2x]

Caution

Refer to Fastener Caution.

Caution

Refer to Torque-to-Yield Fastener Caution.

Note

The bolts are marked by arrows in the valve body casting.

13. Control Valve Solenoid Body Bolt (1, 2, 3) » Tighten in sequence [7x] — Fastener Specifications

14. Automatic Transmission Auxiliary Fluid Pump (3) » Install

15. Automatic Transmission Auxiliary Fluid Pump Bolt (2) » Install and tighten [3x] — Fastener Specifications

16. Connect the automatic transmission auxiliary fluid pump electrical connector (1).

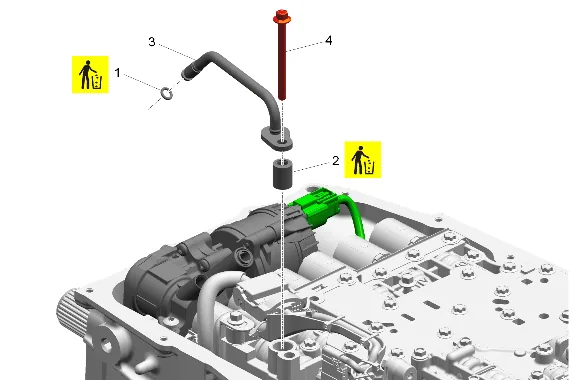

Control Valve Body Replacement (LM2) — figure 9

17. Automatic Transmission Auxiliary Fluid Pump Seal (1) » Install NEW

18. Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Seal (2) » Install NEW

19. Automatic Transmission Auxiliary Fluid Pump Outlet Pipe (3) » Install

20. Control Valve Upper Body Bolt (4) » Install and tighten — Fastener Specifications

21. Automatic Transmission Fluid Filter (2) » Install — Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement

22. Perform the transmission control solenoid valve characterization programming procedure. Q77 Transmission Control Solenoid Valve Characterization Programming
