Instrument Panel Steering Column Upper Trim Cover Replacement

Instrument Panel Steering Column Upper Trim Cover Replacement Removal Procedure

1. Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.

Instrument Panel Steering Column Upper Trim Cover Replacement — figure 1

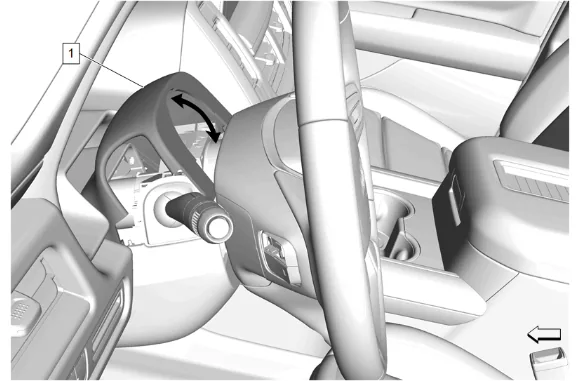

2. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.

Instrument Panel Steering Column Upper Trim Cover Replacement — figure 2

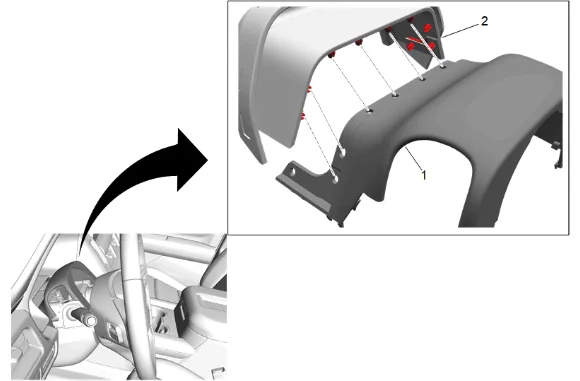

3. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column opening closeout (2). Installation Procedure

4. Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

5. Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
