Rear Seat Heater Control Module Bracket Replacement (60 Percent)

Rear Seat Heater Control Module Bracket Replacement (60 Percent) Removal Procedure

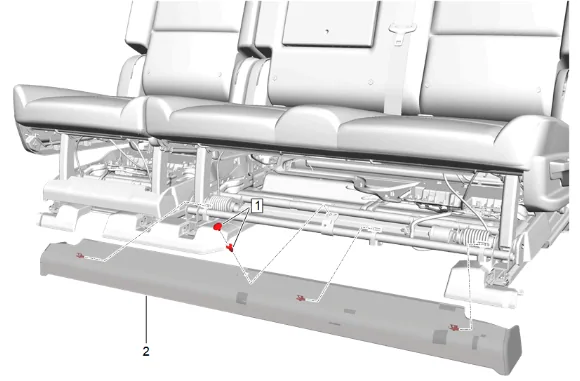

Rear Seat Heater Control Module Bracket Replacement (60 Percent) — figure 1

1. Rear Seat Riser Finish Cover Retainer (1) » Remove
2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Rear Seat Riser Finish Cover (2) » Remove

Rear Seat Heater Control Module Bracket Replacement (60 Percent) — figure 2

4. Place the opposite rear seat in the fold and tumble position.
5. Using a flat-bladed plastic trim tool, release the retaining clip.
6. Rear Seat Riser Finish Cover (1) » Remove [2x]

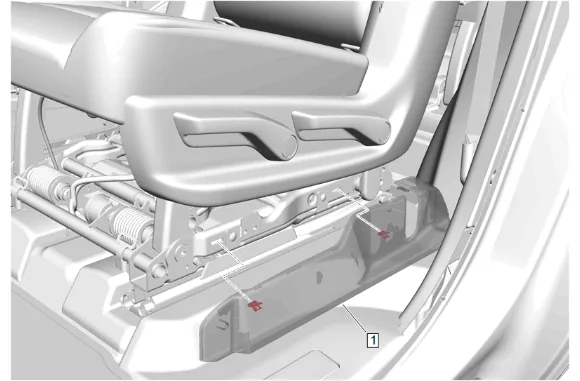

Rear Seat Heater Control Module Bracket Replacement (60 Percent) — figure 3

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Using a suitable plastic trim tool, release the retaining tabs.
9. Rear Seat Riser Inner Finish Cover - Outboard (1) » Remove

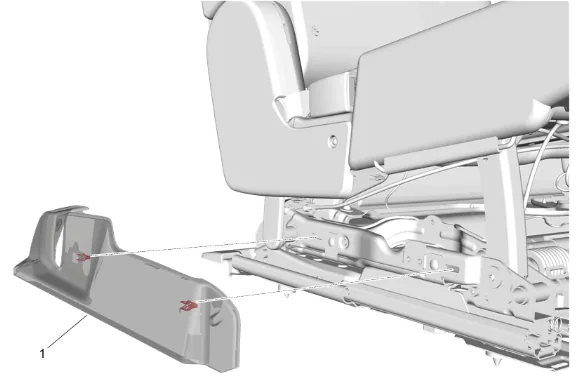

Rear Seat Heater Control Module Bracket Replacement (60 Percent) — figure 4

10. Using a flat-bladed plastic trim tool, release the retaining clips.
11. Using a suitable plastic trim tool, release the retaining tabs.
12. Rear Seat Riser Inner Finish Cover - Inboard (1) » Remove

Rear Seat Heater Control Module Bracket Replacement (60 Percent) — figure 5

13. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
14. Release the J-channel retainers from the rear seat cushion cover and rear seat cushion trim panel (2).

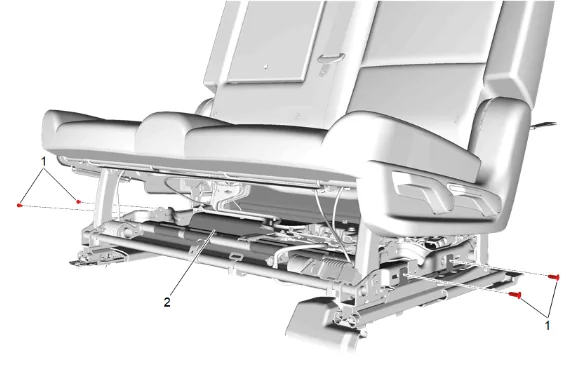

Rear Seat Heater Control Module Bracket Replacement (60 Percent) — figure 6

15. Release the remaining J-channel retainers on the rear seat cushion trim panel (2).
16. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [4x]

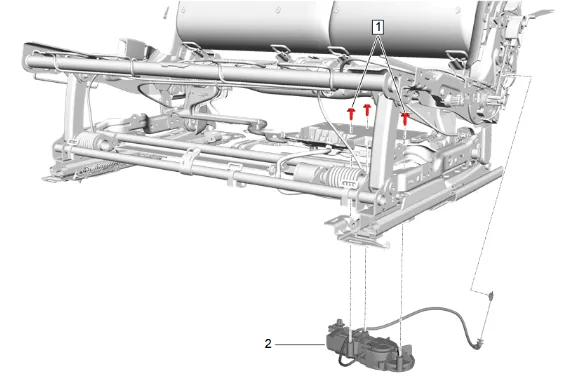

Rear Seat Heater Control Module Bracket Replacement (60 Percent) — figure 7

17. Rear Seat Riser Bolt (1) » Remove [3x]
18. Folding Rear Seat Back Actuator (2) » Reposition

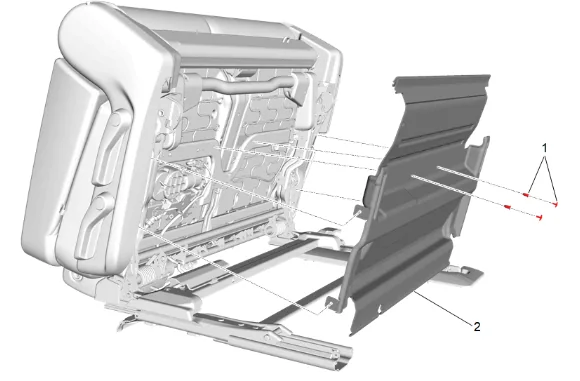

Rear Seat Heater Control Module Bracket Replacement (60 Percent) — figure 8

19. Place the rear seat in the fold and tumble position.
20. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
21. Rear Seat Cushion Trim Panel (2) » Remove

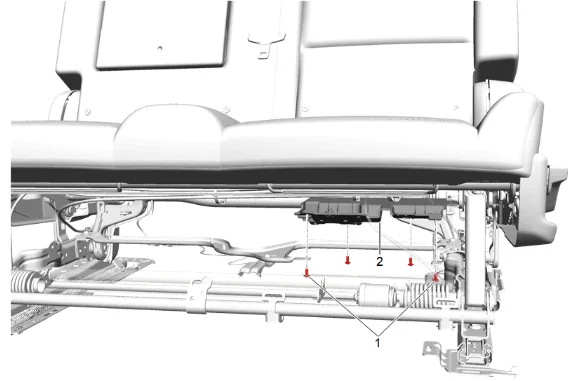

Rear Seat Heater Control Module Bracket Replacement (60 Percent) — figure 9

22. Disconnect the wiring harness retainers and reposition the harness as necessary.

23. Front Seat Bolt (1) » Remove [4x]

24. Return the rear seat to the original position.

25. Rear Seat Heater Control Module Bracket (2) » Remove Installation Procedure

26. Rear Seat Heater Control Module Bracket (2) » Install

27. Place the rear seat in the fold and tumble position.

Caution

Refer to Fastener Caution.

3. Front Seat Bolt (1) » Install and tighten [4x] — Fastener Specifications

4. Position the wiring harness and connect the harness retainers.

5. Rear Seat Cushion Trim Panel (2) » Install

6. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

7. Return the rear seat to the original position.

8. Folding Rear Seat Back Actuator (2) » Install

9. Rear Seat Riser Bolt (1) » Install and tighten [3x] — Fastener Specifications

10. Rear Seat Back Opening Finish Cover Retainer (1) » Install [4x]

11. Secure the J-channel retainers on the rear seat cushion trim panel (2).

12. Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel  (2).

13. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

14. Rear Seat Riser Inner Finish Cover - Inboard (1) » Install

15. Rear Seat Riser Inner Finish Cover - Outboard (1) » Install

16. Rear Seat Riser Finish Cover (1) » Install [2x]

17. Return the opposite rear seat to the original position.

18. Rear Seat Riser Finish Cover (2) » Install

19. Rear Seat Riser Finish Cover Retainer (1) » Install
