Fastener Specifications

Table 1: Active Safety Control Module Bracket Table 2: Forward Collision Alert Display Table 3: Front Body Mounted Sensors Table 4: Side Object Sensing Alert Module

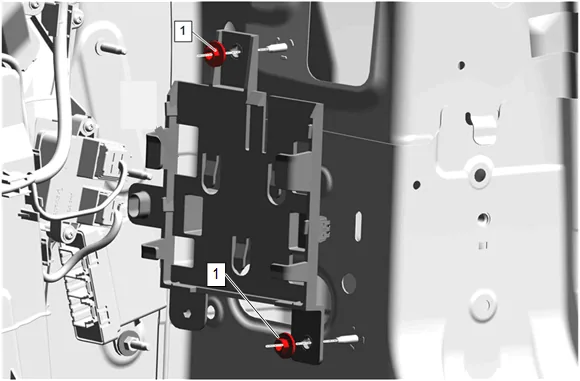

Fastener Specifications — figure 1

Active Safety Control Module Bracket

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Active Safety Control Module Bracket Nut [2x]	—	—	9 Y (80 lb in)	Active Safety Control Module Bracket Replacement

Fastener Specifications — figure 2

Forward Collision Alert Display

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification e nent d Metric (English)	Procedure
1	Forward Collision Alert Display Bolt	—	—	2.5 Y (22 lb in)	Forward Collision Alert Display Replacement

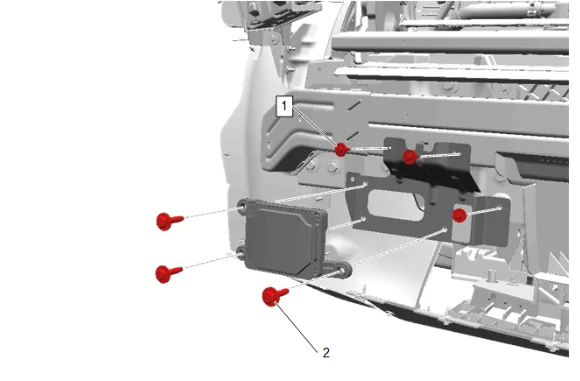

Fastener Specifications — figure 3

Front Body Mounted Sensors

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Forward Range Radar Bracket Bolt [3x]	—	—	9 Y (80 lb in)	Forward Range Radar Bracket Replacement
2	Forward Range Radar Sensor Bolt [3x]	—	—	2.5 Y (22 lb in)	Forward Range Radar Sensor Replacement

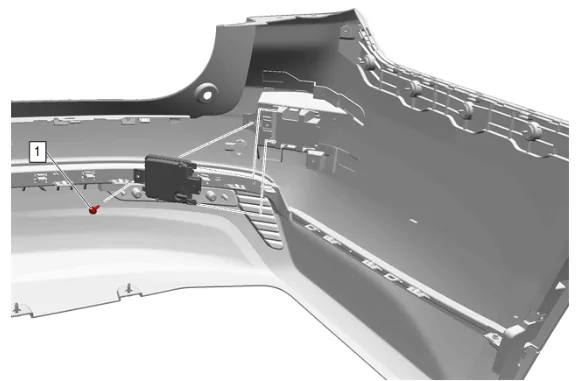

Fastener Specifications — figure 4

Side Object Sensing Alert Module

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Side Object Sensing Alert Module Bolt	—	—	2.5 Y (22 lb in)	Side Object Sensing Alert Module Replacement
