Rear Seat Cushion Trim Panel Replacement (60 Percent)

Removal Procedure

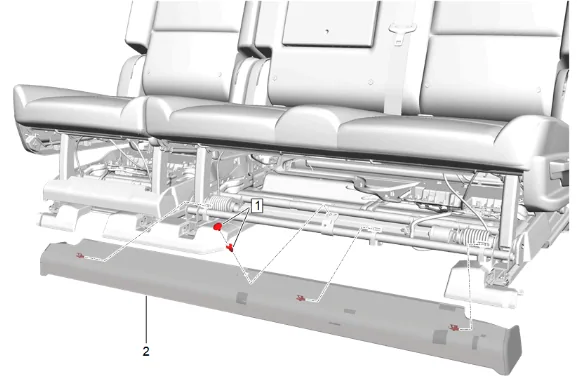

Rear Seat Cushion Trim Panel Replacement (60 Percent) — figure 1

1. Rear Seat Riser Finish Cover Retainer (1) » Remove
2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Rear Seat Riser Finish Cover (2) » Remove

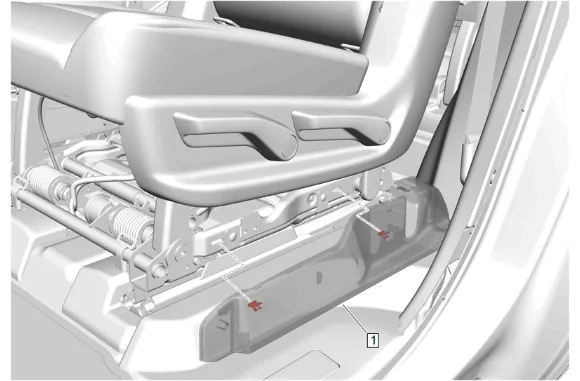

Rear Seat Cushion Trim Panel Replacement (60 Percent) — figure 2

4. Place the opposite rear seat in the fold and tumble position.
5. Using a flat-bladed plastic trim tool, release the retaining clip.
6. Rear Seat Riser Finish Cover (1) » Remove [2x]

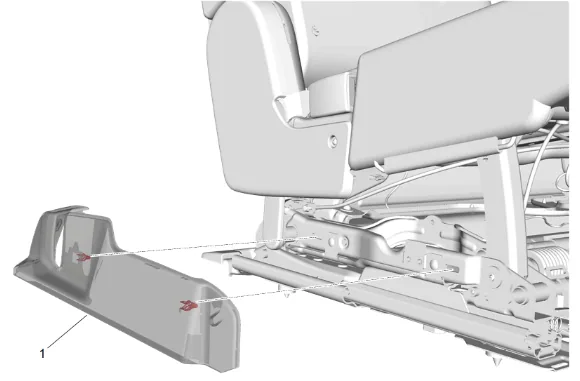

Rear Seat Cushion Trim Panel Replacement (60 Percent) — figure 3

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Using a suitable plastic trim tool, release the retaining tabs.
9. Rear Seat Riser Inner Finish Cover - Outboard (1) » Remove

Rear Seat Cushion Trim Panel Replacement (60 Percent) — figure 4

10. Using a flat-bladed plastic trim tool, release the retaining clips.
11. Using a suitable plastic trim tool, release the retaining tabs.
12. Rear Seat Riser Inner Finish Cover - Inboard (1) » Remove

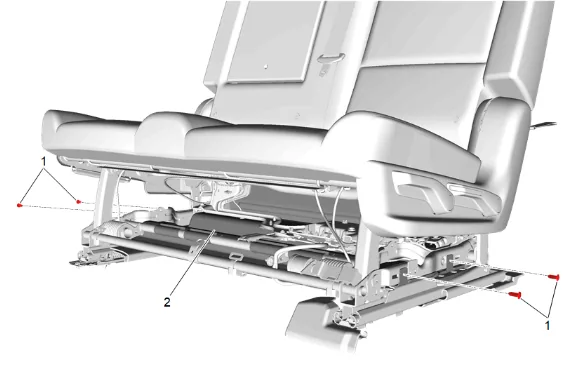

Rear Seat Cushion Trim Panel Replacement (60 Percent) — figure 5

13. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]
14. Release the J-channel retainers from the rear seat cushion cover and rear seat cushion trim panel (2).

Rear Seat Cushion Trim Panel Replacement (60 Percent) — figure 6

15. Release the remaining J-channel retainers on the rear seat cushion trim panel (2).
16. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [4x]

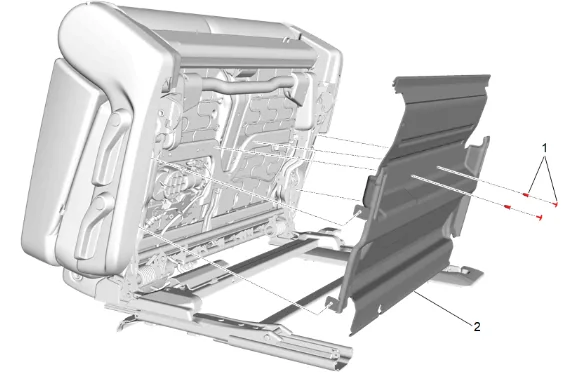

Rear Seat Cushion Trim Panel Replacement (60 Percent) — figure 7

17. Place the rear seat in the fold and tumble position.

18. Rear Seat Riser Finish Cover Retainer (1) » Remove [2x]

19. Rear Seat Cushion Trim Panel (2) » Remove Installation Procedure

20. Rear Seat Cushion Trim Panel (2) » Install

21. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

22. Return the rear seat to the original position.

23. Rear Seat Back Opening Finish Cover Retainer (1) » Install [4x]

24. Secure the J-channel retainers on the rear seat cushion trim panel (2).

25. Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel (2).

26. Rear Seat Riser Finish Cover Retainer (1) » Install [2x]

27. Rear Seat Riser Inner Finish Cover - Inboard (1) » Install

28. Rear Seat Riser Inner Finish Cover - Outboard (1) » Install

29. Rear Seat Riser Finish Cover (1) » Install [2x]

30. Return the opposite rear seat to the original position.

31. Rear Seat Riser Finish Cover (2) » Install

32. Rear Seat Riser Finish Cover Retainer (1) » Install
