Tahoe / Yukon Service Manual

Fastener Specifications

Table 1: Front Side Door Window Belt Reveal Molding Table 2: Front Side Door Window Channel Front Retainer Table 3: Front Side Door Window Channel Retainer Table 4: Front Side Door Window Control Switch Table 5: Front Side Door Window Frame Front Applique Table 6: Front Side Door Window Frame Rear Applique Table 7: Front Side Door Window Regulator Table 8: Front Side Door Window Regulator Motor Table 9: Front Side Door Window Switch - Right Side Table 10: Front Side Door Window Upper Reveal Molding Table 11: Liftgate Window Latch Table 12: Rear Side Door Window Belt Reveal Molding Table 13: Rear Side Door Window Channel Front Retainer Table 14: Rear Side Door Window Channel Rear Retainer Table 15: Rear Side Door Window Frame Front Applique Table 16: Rear Side Door Window Frame Rear Applique Table 17: Rear Side Door Window Regulator Table 18: Rear Side Door Window Regulator Motor Table 19: Rear Side Door Window Switch Table 20: Rear Side Door Window Upper Reveal Molding Table 21: Rear Side Door Window Weatherstrip

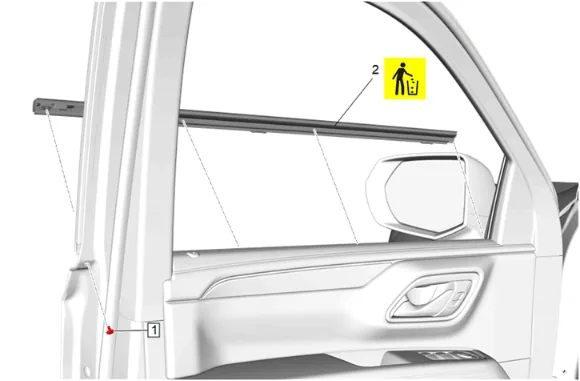

Fastener Specifications — figure 1
Fastener Specifications — figure 1

Front Side Door Window Belt Reveal Molding

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt — — 1.5 Y (13 lb in) Front Side Door Window Belt Reveal Molding Replacement
2 Front Side Door Window Belt Reveal Molding Yes — — Front Side Door Window Belt Reveal Molding Replacement

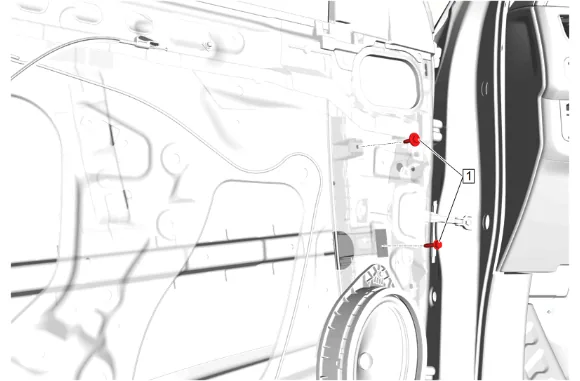

Fastener Specifications — figure 2
Fastener Specifications — figure 2

Front Side Door Window Channel Front Retainer

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Front Side Door Window Channel Front Retainer Bolt [2x] — — 11 Y (97 lb in) Front Side Door Window Channel Front Retainer Replacement

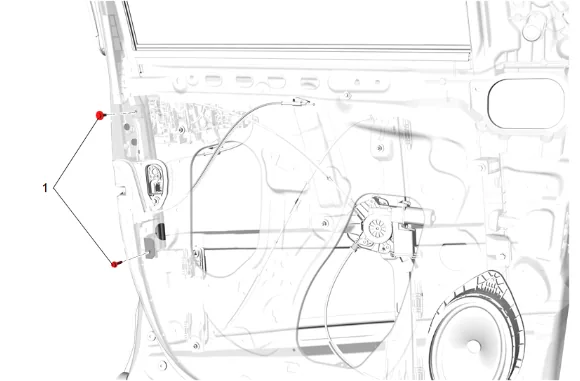

Fastener Specifications — figure 3
Fastener Specifications — figure 3

Front Side Door Window Channel Retainer

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] — — 11 Y (97 lb in) Front Side Door Window Channel Retainer Replacement

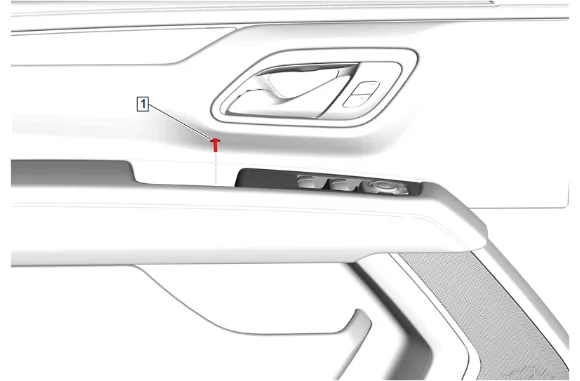

Fastener Specifications — figure 4
Fastener Specifications — figure 4

Front Side Door Window Control Switch

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Front Side Door Trim Bolt — — 2.5 Y (22 lb in) Front Side Door Window Control Switch Replacement

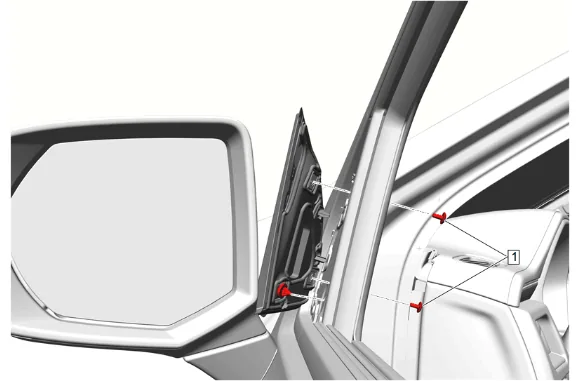

Fastener Specifications — figure 5
Fastener Specifications — figure 5

Front Side Door Window Frame Front Applique

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Front Side Door Window Frame Front Applique Bolt [2x] — — 1.5 Y (13 lb in) Front Side Door Window Frame Front Applique Replacement

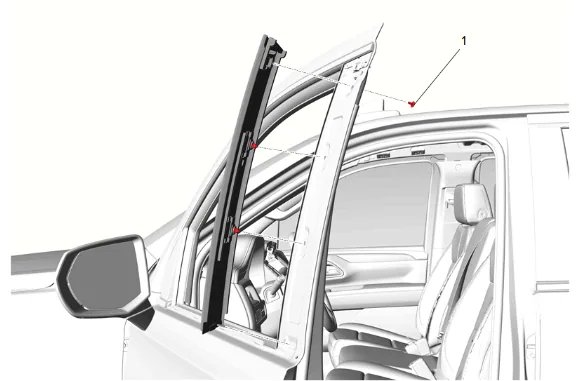

Fastener Specifications — figure 6
Fastener Specifications — figure 6

Front Side Door Window Frame Rear Applique

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Front Side Door Window Frame Rear Applique Bolt — — 1.5 Y (13 lb in) Front Side Door Window Frame Rear Applique Replacement

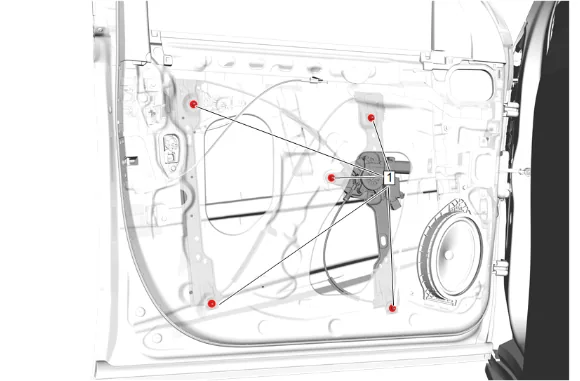

Fastener Specifications — figure 7
Fastener Specifications — figure 7

Front Side Door Window Regulator

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Front Side Door Window Regulator Nut [5x] — — 11 Y (97 lb in) Front Side Door Window Regulator Replacement
Fastener Specifications — figure 8
Fastener Specifications — figure 8

Front Side Door Window Regulator Motor

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Front Side Door Window Regulator Motor Bolt [3x] — — Install and hand tighten Front Side Door Window Regulator Motor Replacement
Fastener Specifications — figure 9
Fastener Specifications — figure 9

Front Side Door Window Switch - Right Side

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Front Side Door Trim Bolt — — 2.5 Y (22 lb in) Front Side Door Window Switch Replacement - Right Side
Fastener Specifications — figure 10
Fastener Specifications — figure 10

Front Side Door Window Upper Reveal Molding

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Front Side Door Window Upper Reveal Molding Rivet [2x] Yes — — Front Side Door Window Upper Reveal Molding Replacement
Fastener Specifications — figure 11
Fastener Specifications — figure 11

Liftgate Window Latch

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Liftgate Latch Bracket Bolt [2x] — — 9 Y (80 lb in) Liftgate Window Latch Replacement
Fastener Specifications — figure 12
Fastener Specifications — figure 12

Rear Side Door Window Belt Reveal Molding

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt [2x] — — 1.5 Y (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement
2 Rear Side Door Window Belt Reveal Molding Yes — — Rear Side Door Window Belt Reveal Molding Replacement

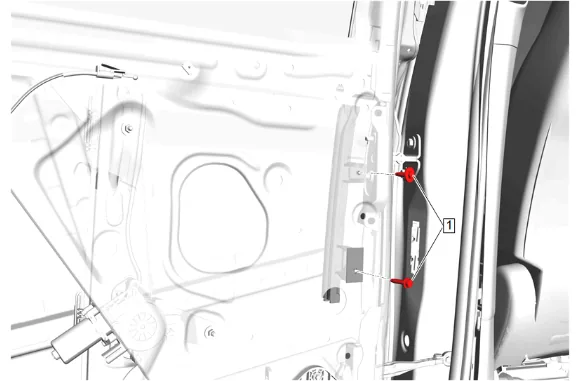

Fastener Specifications — figure 13
Fastener Specifications — figure 13

Rear Side Door Window Channel Front Retainer

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Rear Side Door Window Channel Front Retainer Bolt [2x] — — 11 Y (97 lb in) Rear Side Door Window Channel Front Retainer Replacement

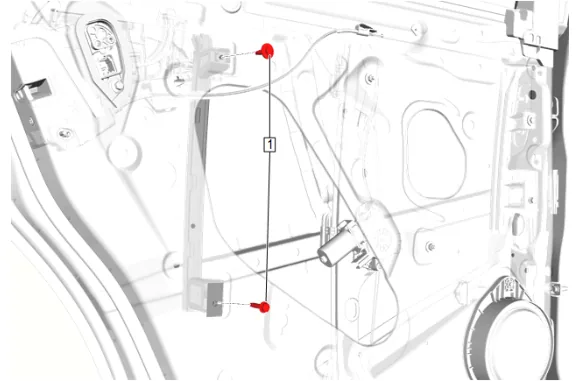

Fastener Specifications — figure 14
Fastener Specifications — figure 14

Rear Side Door Window Channel Rear Retainer

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Rear Side Door Window Channel Retainer Rear Bolt [2x] — — 11 Y (97 lb in) Rear Side Door Window Channel Rear Retainer Replacement

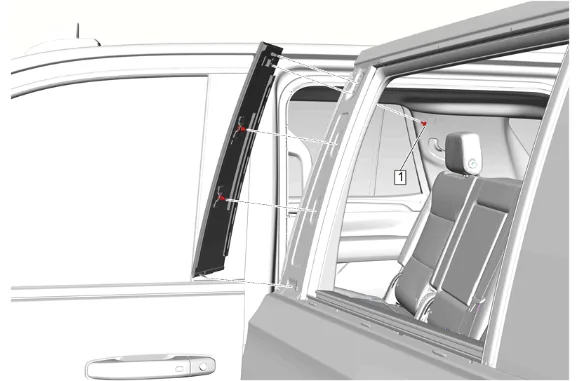

Fastener Specifications — figure 15
Fastener Specifications — figure 15

Rear Side Door Window Frame Front Applique

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Rear Side Door Window Frame Front Applique Bolt — — 1.5 Y (13 lb in) Rear Side Door Window Frame Front Applique Replacement
Fastener Specifications — figure 16
Fastener Specifications — figure 16

Rear Side Door Window Frame Rear Applique

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Rear Side Door Window Frame Rear Applique Bolt — — 1.5 Y (13 lb in) Rear Side Door Window Frame Rear Applique Replacement

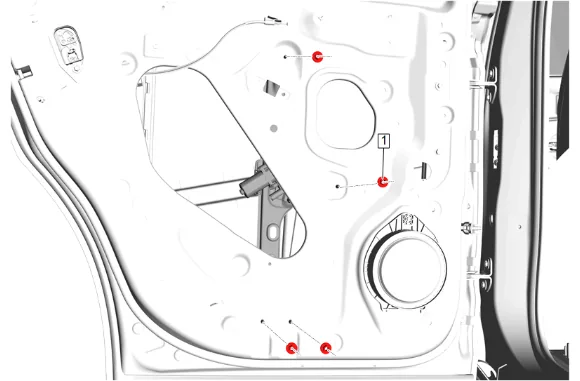

Fastener Specifications — figure 17
Fastener Specifications — figure 17

Rear Side Door Window Regulator

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Rear Side Door Window Regulator Nut [4x] — — 11 Y (97 lb in) Rear Side Door Window Regulator Replacement
Fastener Specifications — figure 18
Fastener Specifications — figure 18

Rear Side Door Window Regulator Motor

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Rear Side Door Window Regulator Motor Bolt [3x] — — Install and hand tighten Rear Side Door Window Regulator Motor Replacement
Fastener Specifications — figure 19
Fastener Specifications — figure 19

Rear Side Door Window Switch

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Rear Side Door Trim Panel Bolt — — 2.5 Y (22 lb in) Rear Side Door Window Switch Replacement
Fastener Specifications — figure 20
Fastener Specifications — figure 20

Rear Side Door Window Upper Reveal Molding

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Rear Side Door Window Upper Reveal Molding Rivet [2x] Yes — — Rear Side Door Window Upper Reveal Molding Replacement
Fastener Specifications — figure 21
Fastener Specifications — figure 21

Rear Side Door Window Weatherstrip

Callou Component Name [Component t Quantity] Single Use Fastene Thread Locking Adhesiv r/Compo Require Specification Procedure
e nent d Metric (English)
1 Rear Side Door Window Weatherstrip Bolt — — 11 Y (97 lb in) Rear Side Door Window Weatherstrip Replacement
2 Rear Side Door Window Weatherstrip Bolt — — 2.5 Y (22 lb in) Rear Side Door Window Weatherstrip Replacement
