Folding 3rd Row Seat Back Actuator Replacement (40 Percent)

Folding 3rd Row Seat Back Actuator Replacement (40 Percent) Removal Procedure

Folding 3rd Row Seat Back Actuator Replacement (40 Percent) — figure 1

1. 3rd Row Seat Back Cover and Pad (1) » Remove — 3rd Row Seat Back Cover and Pad Removal and Installation

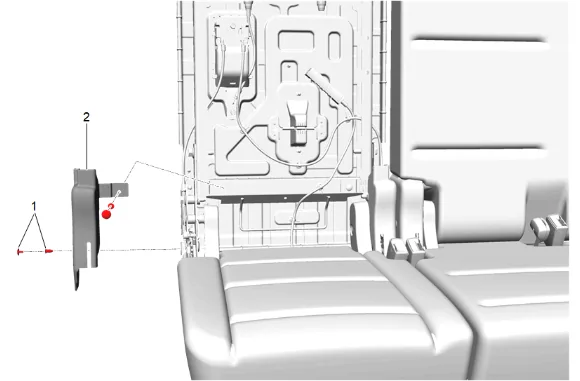

Folding 3rd Row Seat Back Actuator Replacement (40 Percent) — figure 2

2. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
3. 3rd Row Seat Hinge Finish Cover - Outer (2) » Remove

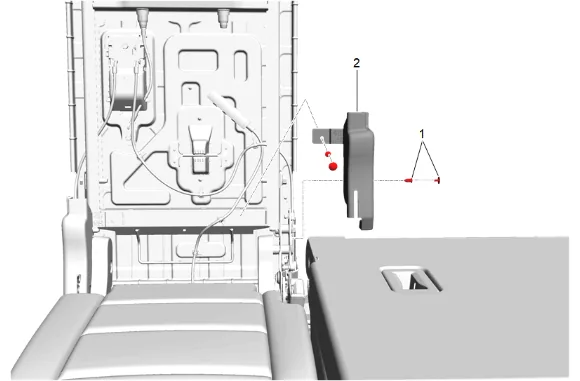

Folding 3rd Row Seat Back Actuator Replacement (40 Percent) — figure 3

4. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
5. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Remove

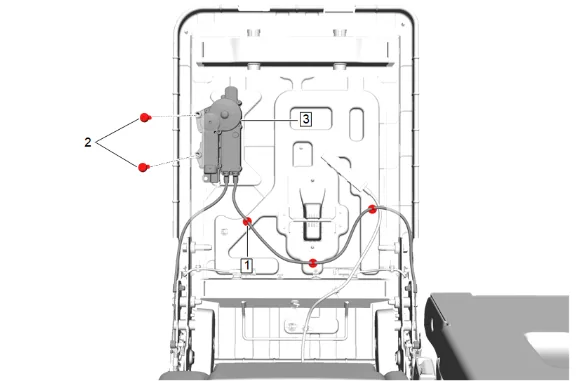

Folding 3rd Row Seat Back Actuator Replacement (40 Percent) — figure 4

6. Disconnect the electrical connector.

7. Disconnect both 3rd row seat back actuator cable ends from the seat back latch.

8. Using a suitable trim tool, release the cable retainers (1) from the seat back frame.

9. Folding 3rd Row Seat Back Actuator Bolt (2) » Remove [2x]

10. Folding 3rd Row Seat Back Actuator (3) » Remove Installation Procedure

11. Folding 3rd Row Seat Back Actuator (3) » Install

Caution

Refer to Fastener Caution.

2. Folding 3rd Row Seat Back Actuator Bolt (2) » Install and tighten [2x] — Fastener Specifications

3. Install the cable retainers (1) to the seat back frame.

4. Connect both 3rd row seat back actuator cable ends to the seat back latch.

5. Connect the electrical connector.

6. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Install

7. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

8. 3rd Row Seat Hinge Finish Cover - Outer (2) » Install

9. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

10. 3rd Row Seat Back Cover and Pad (1) » Install — 3rd Row Seat Back Cover and Pad Removal and Installation
