Rear Seat Back Latch Strap Replacement (40 Percent, Bucket)

Rear Seat Back Latch Strap Replacement (40 Percent, Bucket) Single Use Fasteners and Components Rear Seat Rivet Removal Procedure

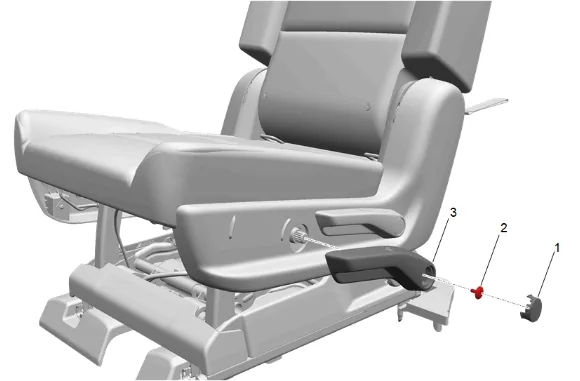

Rear Seat Back Latch Strap Replacement (40 Percent, Bucket) — figure 1

1. Rear Seat Recliner Handle Bolt Cap (1) » Remove
2. Rear Seat Riser Bolt (2) » Remove
3. Rear Seat Adjuster Handle (3) » Remove

Rear Seat Back Latch Strap Replacement (40 Percent, Bucket) — figure 2

4. Rear Seat Recliner Handle Bolt Cap (1) » Remove
5. Rear Seat Riser Bolt (2) » Remove
6. Rear Seat Recliner Handle (3) » Remove

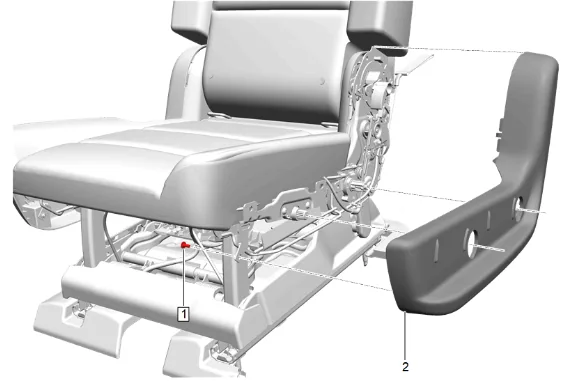

Rear Seat Back Latch Strap Replacement (40 Percent, Bucket) — figure 3

7. Front Seat Bolt (1) » Remove
8. Using a suitable plastic trim tool, release the retaining tabs.
9. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Remove

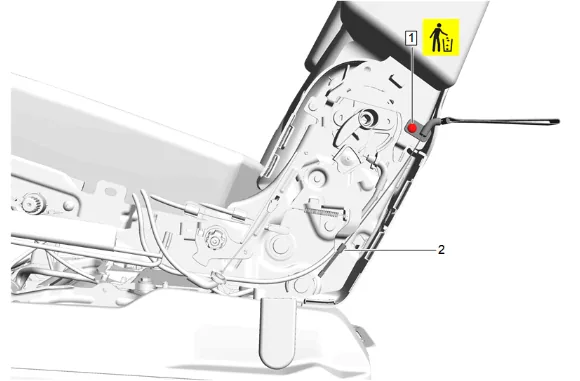

Rear Seat Back Latch Strap Replacement (40 Percent, Bucket) — figure 4

Warning

Refer to Eye Protection Warning.

10. Rear Seat Rivet (1) » Remove and DISCARD

11. Release the cable end from the seat frame.

12. Rear Seat Back Latch Strap (2) » Remove Installation Procedure

13. Rear Seat Back Latch Strap (2) » Install

14. Install the cable end into the seat frame.

15. Rear Seat Rivet (1) » Install NEW

16. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Install

Caution

Refer to Fastener Caution.

5. Front Seat Bolt (1) » Install and tighten — Fastener Specifications

6. Rear Seat Recliner Handle (3) » Install

7. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

8. Rear Seat Recliner Handle Bolt Cap (1) » Install

9. Rear Seat Adjuster Handle (3) » Install

10. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

11. Rear Seat Recliner Handle Bolt Cap (1) » Install
